Landa Pgdc4-3500 - Coil Assembly Exploded View; Coil Assembly Parts List

LANDA PGDC • 8.916-596.0 • REV. 5/13
25
PRESSURE WASHER
OPERATOR’S MANUAL
8916596-20
ITEM PART NO. DESCRIPTION QTY
1 9.802-014.0 Nipple, 1/2" x 3" Galv. Sch 80 2
2 8.706-141.0 Coupling, 1/2" 1
3 9.802-170.0 Nipple, 3/8" x 3/8" FPT ST
Male 1
4 9.802-883.0 Insulation, Front Head,
No Hole 1
5 9.802-894.0 Insulation, Burner Head,
w/Hole 1
6 9.802-896.0 Insulation, Blanket,
No Foil 24" x 57" 1
7 8.933-009.0 Gasket, Burner Plate 2
8 9.802-902.0 Insul/Blanket, Die Cut
28" x 24" x 1" 1
9 9.802-781.0 Nut, 3/8" Flange Whiz Loc, NC 2
10 9.802-807.0 Washer, Flat 3/8" 2
11 8.916-486.0 Wlmt, Bottom Wrap 1
COIL ASSEMBLY EXPLODED VIEW PARTS LIST

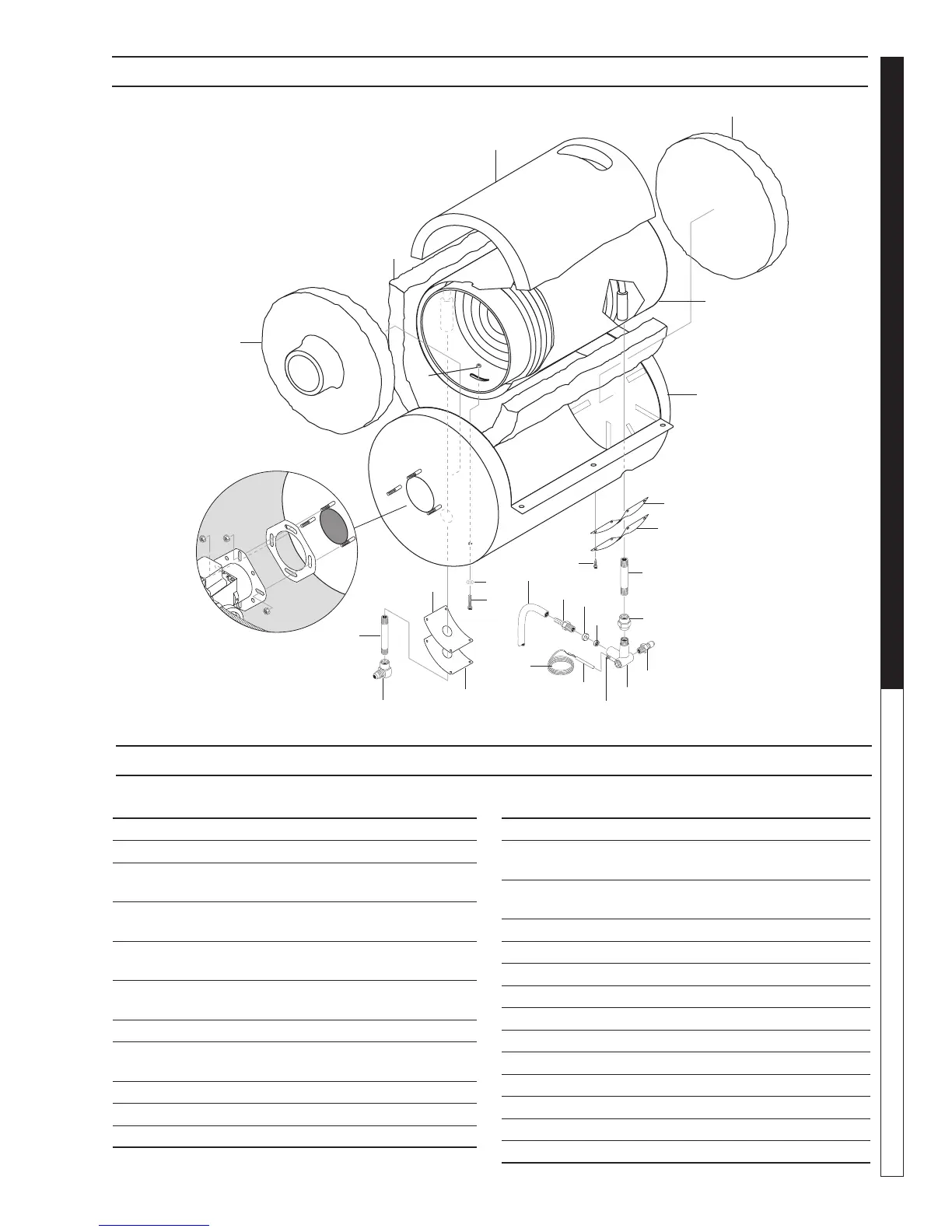

COIL ASSEMBLY EXPLODED VIEW
ITEM PART NO. DESCRIPTION QTY
12 9.803-132.0 Insulation Retainer Plate 2
13 9.802-797.0 Screw, SS #10 x 1/2
Hex Head Tek 8
14 8.912-239.0 Coil, Landa Dura, Sch 80
w/Aluminized Steel Wrap 1
15 9.149-003.0 Manifold, Coil Outlet 1
16 9.802-043.0 Elbow, 1/2 JIC x 1/2 Fem 90° 1
17 8.707-019.0 Push-on, 1/2" Barb x 3/8" MPT 1
18 9.802-727.0 Bolt, 3/8" x 1-3/4" Tap 2
19 9.802-015.0 Nipple, 1/2" x 4" Galv. Sch 80 1
20 8.725-944.0 Rupture Disk 8000# 1
21 9.184-030.0 Spacer, Rupture Disk 1
22 9.802-259.0 Hose, 1/2" Push-on 21"
23 9.196-012.0 Screw, 10-24 x 1/4 1
24 8.750-097.0 Thermostat 240° F 1
25 9.802-447.0 Conduit, Split 48"
1
2
5
6
3
4
7
21
20
8
17
24
23
18
9
13
22
14
11
12
15
19
16
7
12
10
25
