LANDA PGDC • 8.916-596.0 • REV. 5/13
OPERATOR’S MANUAL
PRESSURE WASHER
34

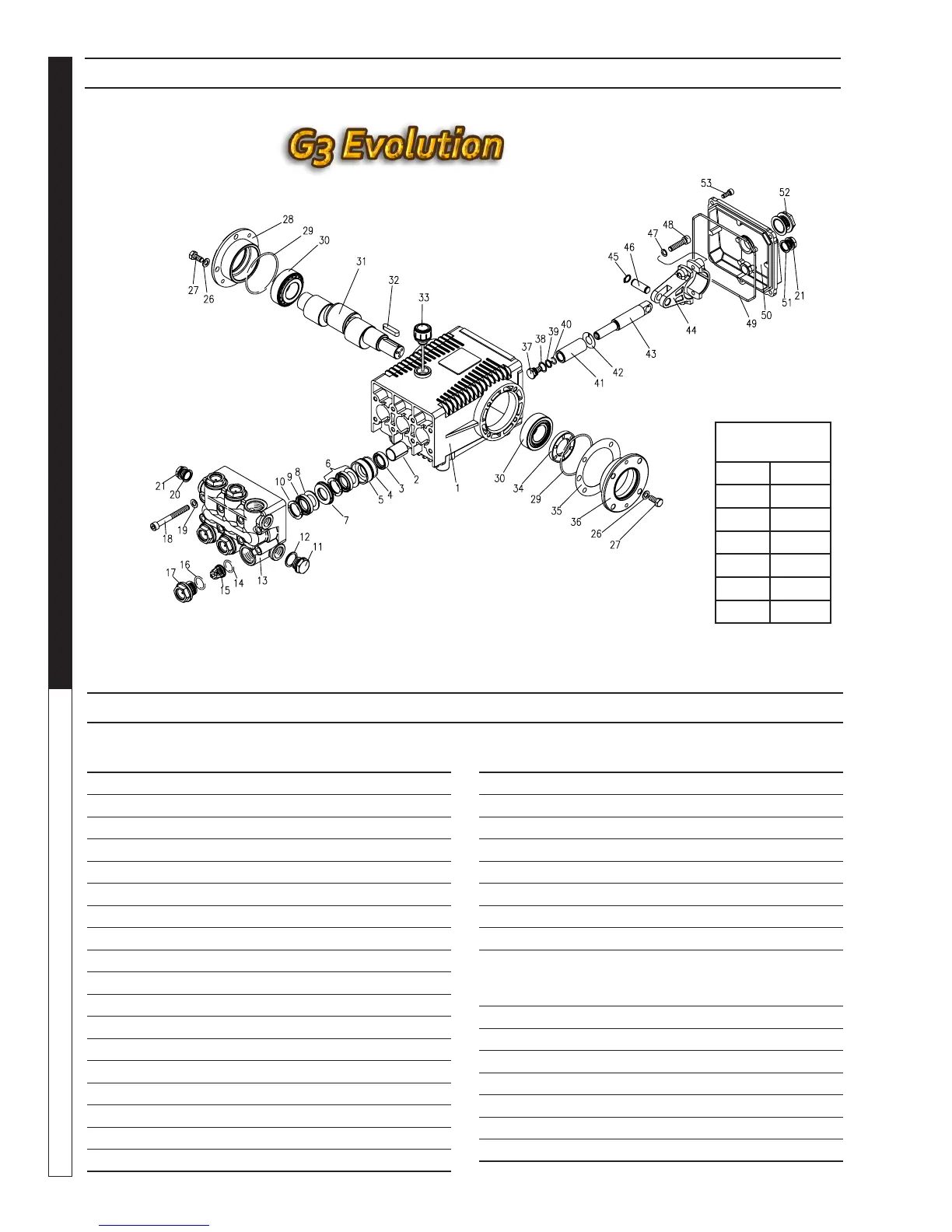

LT.1 SERIES PUMP EXPLODED VIEW
8.904-870.0 LT4035.1 Left
8.904-883.0 LT6035.1 Left
TORQUE
SPECS
Item # Ft.-Lbs.
15 75
16 45
25 18
35 10
46 30
51 7.6
ITEM PART NO. DESCRIPTION QTY
19 9.802-890.0 Washer 8
20* 9.803-198.0 Copper Washer 3/8" 1
21* 9.802-925.0 Brass Plug 3/8"
1
26 9.802-884.0 Washer 8
27 9.802-944.0 Hexagonal Screw 8
28 9.803-182.0 Closed Bearing Housing 1
29 9.803-186.0 O-Ring Ø2.62 x 71.12 2
30 9.803-160.0 Roller Bearing, Tapered 2
31 9.803-148.0 Crankshaft (4040.1,
5030.1, 6035.1) 1
9.803-149.0 Crankshaft (4035.1) 1
32 9.803-167.0 Crankshaft Key 1
33 9.802-923.0 Oil Dip Stick 1
34 9.803-139.0 Crankshaft Seal 1
35 9.803-177.0 Shim 2
36 9.803-181.0 Bearing Housing 1
37* 9.803-235.0 Plunger Bolt 3
38* 9.802-886.0 Copper Spacer 3
ITEM PART NO. DESCRIPTION QTY
1 9.803-163.0 Crankcase 1
2 9.803-195.0 Plunger Guide 3
3*
See Kit Below Plunger Oil Seal 3
4*
See Kit Below O-Ring Ø1.78 x 31. 47 3
5*
See Kit Below "Pressure Ring, Brass 3
6*
See Kit Below "U" Seal Low Pressure 3
7*
See Kit Below Intermediate Ring, Brass 3
8*
See Kit Below Support Ring, Teflon Bronze 3
9 See Kit Below "U" Seal High Pressure 3
10
See Kit Below Support Ring 3
11 9.802-926.0 Brass Plug, 1/2" 1
12* 9.803-199.0 Copper Washer 1/2" 1
13* 9.802-933.0 Manifold Head 1
14*
See Kit Below O-Ring Ø2.62 x 17.13 6
15
See Kit Below Valve Assembly 6
16
See Kit Below O-Ring Ø2.62 x 20.29 6
17 9.802-928.0 Valve Plug 6
18 9.802-943.0 Manifold Stud Bolt 8
LT.1 SERIES PUMP EXPLODED VIEW PARTS LIST
