LANDA PGDC • 8.916-596.0 • REV. 5/13
OPERATOR’S MANUAL
PRESSURE WASHER
28

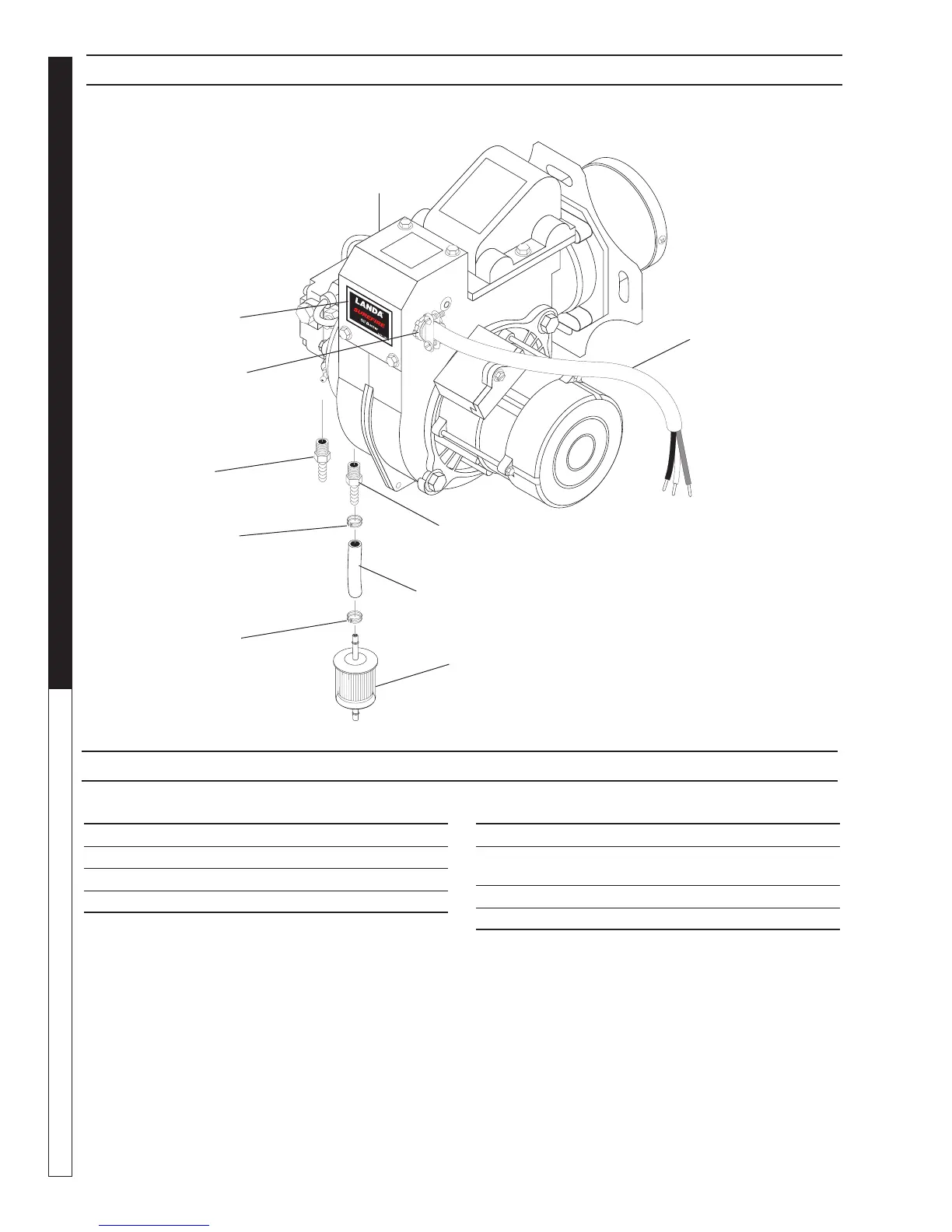

BURNER ASSEMBLY EXPLODED VIEW
ITEM PART NO. DESCRIPTION QTY
1 6.390-126.0 Clamp, Hose, .46-, .54 ST 6
2 9.802-254.0 Hose, 1/4", Push-on 5"
3 8.706-941.0 Hose Barb, 1/4" Barb x 1/4" ML 1
4 8.709-152.0 Filter, Diesel Fuel, Disposable 1
BURNER ASSEMBLY EXPLODED VIEW PARTS LIST
8916596 -27
1
2
5
6
ITEM PART NO. DESCRIPTION QTY
5 Burner Assembly, See Specifications Pages
6 9.802-519.0 Strain Relief, 2 Screw
2 Metal 1/2" 1
7 9.802-428.0 Cord, Service, SJOWA 12/3 30"
8 9.801-265.0 Label, Landa Sure Fire 1
4
1
8
3
3
7
