LANDA PGDC • 8.916-596.0 • REV. 5/13
27
PRESSURE WASHER
OPERATOR’S MANUAL
8916596-8
5,6
4
3
2
7

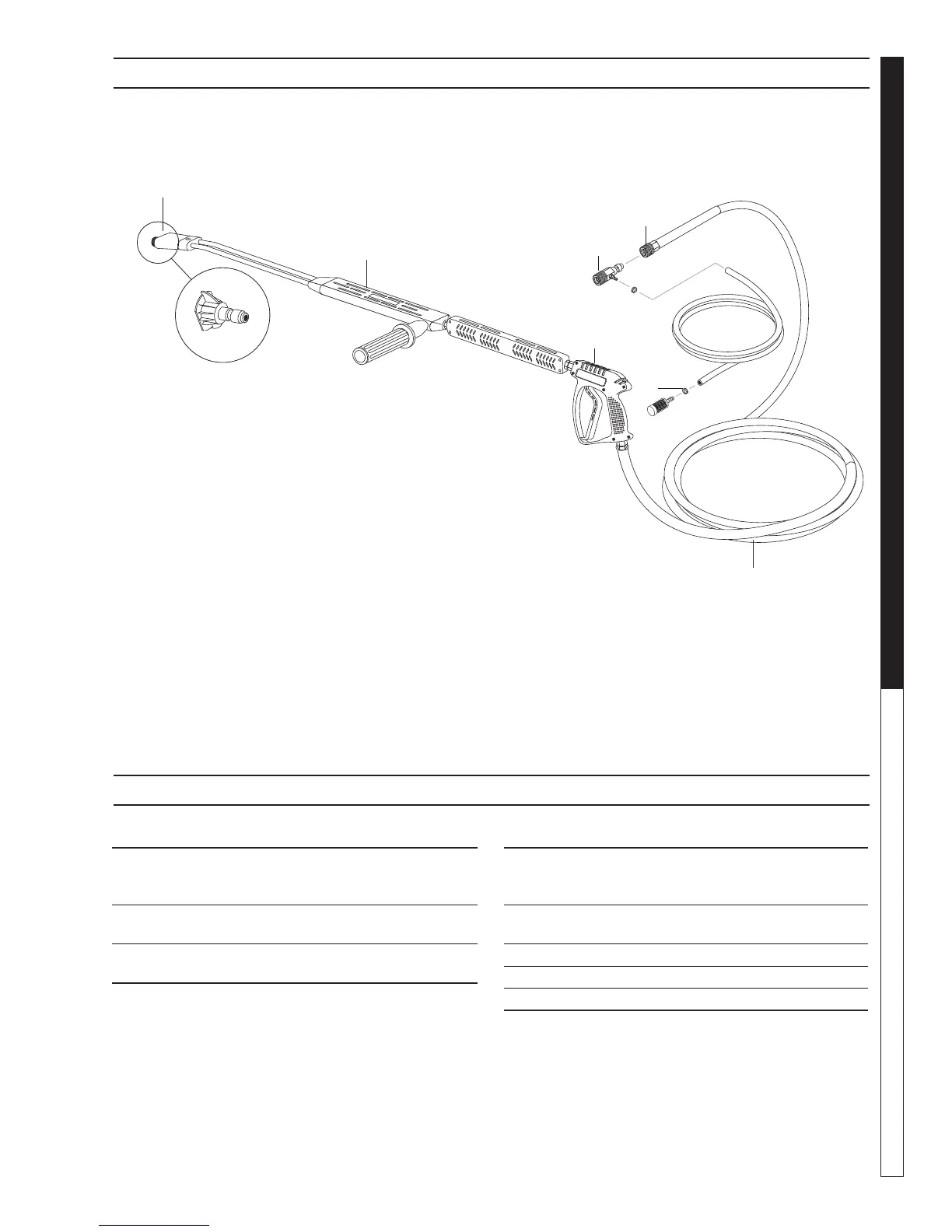

HOSE & SPRAY GUN ASSEMBLY
1
HOSE & SPRAY GUN ASSEMBLY PARTS LIST
8
ITEM PART NO. DESCRIPTION QTY
1 9.802-166.0 Coupler, 3/8" Female 1
9.802-100.0 O-ring, 3/8",
Replacement Only 1
2 8.739-072.0 Hose, 3/8" x 50', 2-Wire
Tuff-Skin 1
3 8.751-234.0 Gun, Landa, L1050,
5000 PSI, 10.4 GPM 1
ITEM PART NO. DESCRIPTION QTY
4 8.711-293.0 Wand, UP ZNC (AL 344)
W/CPLR w/ Soap Nozzle 1
83-SSVPKIT Repair Kit, AL Stainless Steel 1
5 9.802-165.0 Coupler, 1/4" Male 1
9.802-096.0 O-ring, Replacement Only 1
6 9.802-286.0 Brass Soap Nozzle 1
7 9.802-216.0 Detergent Injector Assy 1
8 6.390-126.0 Clamp, Hose, .46-, .54 ST 2
Not Shown
High Pressure
Nozzle
