Landa Pgdc4-3500 - Unloader and Pump Assembly; Unloader and Pump Parts List

LANDA PGDC • 8.916-596.0 • REV. 5/13
29
PRESSURE WASHER
OPERATOR’S MANUAL
8916596-17
8916596-35

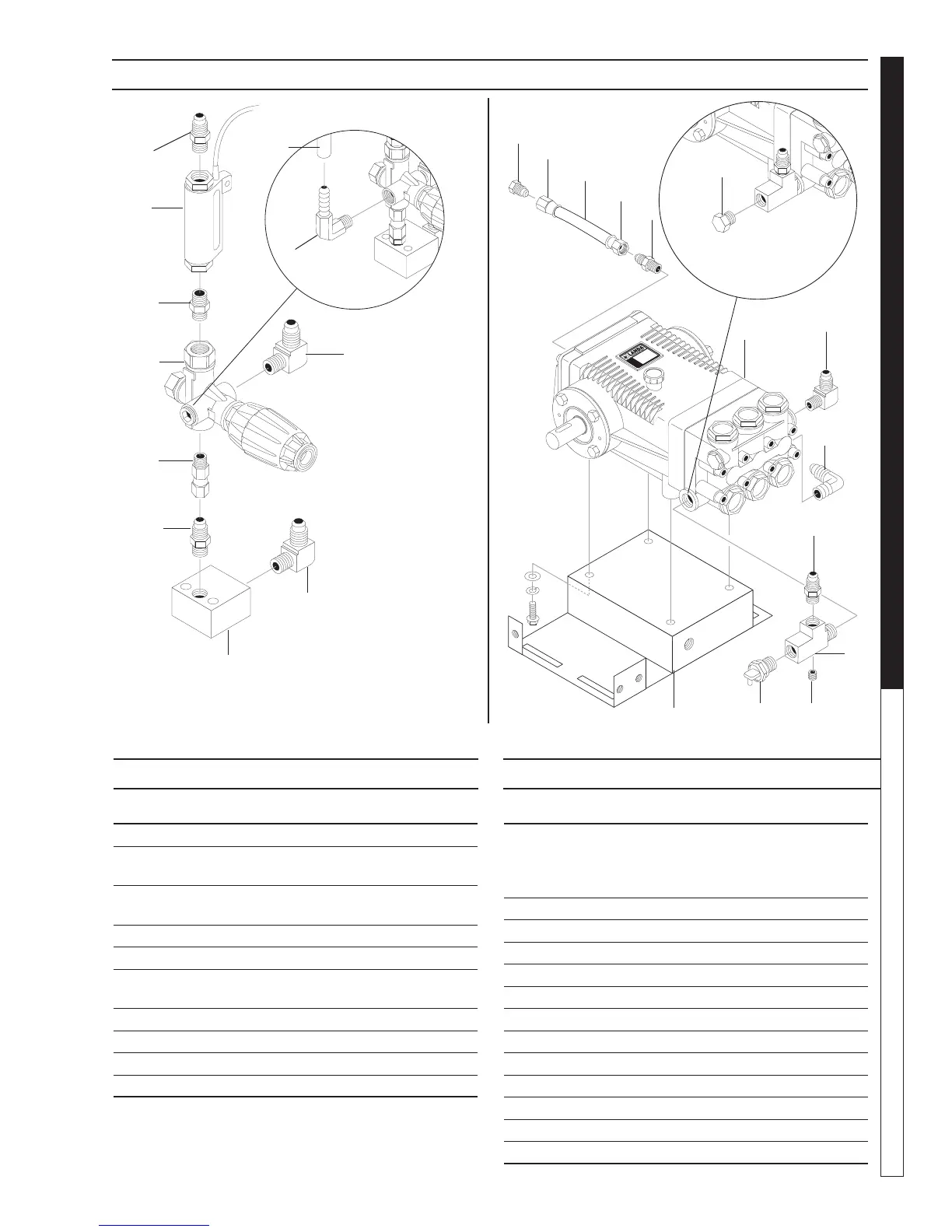

UNLOADER/PUMP ASSEMBLY EXPLODED VIEW
ITEM PART NO. DESCRIPTION QTY
1 9.802-039.0 Elbow, 1/2" JIC x 3/8" MPT 1
2 9.802-870.0 Block, Unloader, 3/8 x 3/8,
1.25 Brass 1
3 9.802-048.0 Swivel, 1/2" JIC Fem,
3/8" MAL 1
4 9.802-036.0 Nipple, 1/2 JIC, 3/8 Pipe 2
5 9.802-129.0 Elbow, 1/2" JIC x 3/8" 90° 1
6 8.750-299.0 Unloader VRT 3, 8 GPM
@ 4500 PSI 1
7 8.933-006.0 Switch, Flow MV60 1
8 8.705-974.0 Nipple, 3/8" Hex Steel 1
9 8.706-965.0 Hose Barb, 1/4" x 3/8" 90° 1
10 9.802-254.0 Hose, 1/4 Push-on 6 ft.
UNLOADER ASSY PARTS LIST
1
2
3
7
10
5
6
8
1
2
3
4
5
6
7
8
4
ITEM PART NO. DESCRIPTION QTY
1 8.904-833.0 Pump, LT6035L (1.110-051.0
1.110-050.0) 1
8.904-870.0 Pump, LT4035L
(1.110-049.0) 1
2 8.912-461.0 Assy, Gas Pump Plate 1
3 9.802-123.0 Tee, 1/2" w/ (1) Hole 1
4 8.706-864.0 Plug, 1/8" countersunk 1
5 8.707-256.0 Pump Protector, 1/2" 1
6 9.802-128.0 Nipple, 1/2" x 1/2" MPT Pipe 1
7 9.802-039.0 Elbow, 1/2" JIC x 3/8" MPT 1
8 9.802-132.0 Elbow, 3/4" JIC x 1/2" 90° 1
9 9.802-127.0 Nipple, 1/2" JIC x 3/8 Pipe 1
10 9.802-151.0 Swivel 1/2" Push-on 2
11 9.802-126.0 Plug, 1/2" JIC 1
12 9.802-259.0 Hose, 1/2" Push-on 20"
13 8.706-868.0 Plug, 1/2" 1
PUMP ASSY PARTS LIST
11
10
12
10
13
9
4
9
Float Tank
Option Only
Float Tank
Option Only
