Hardware Installation

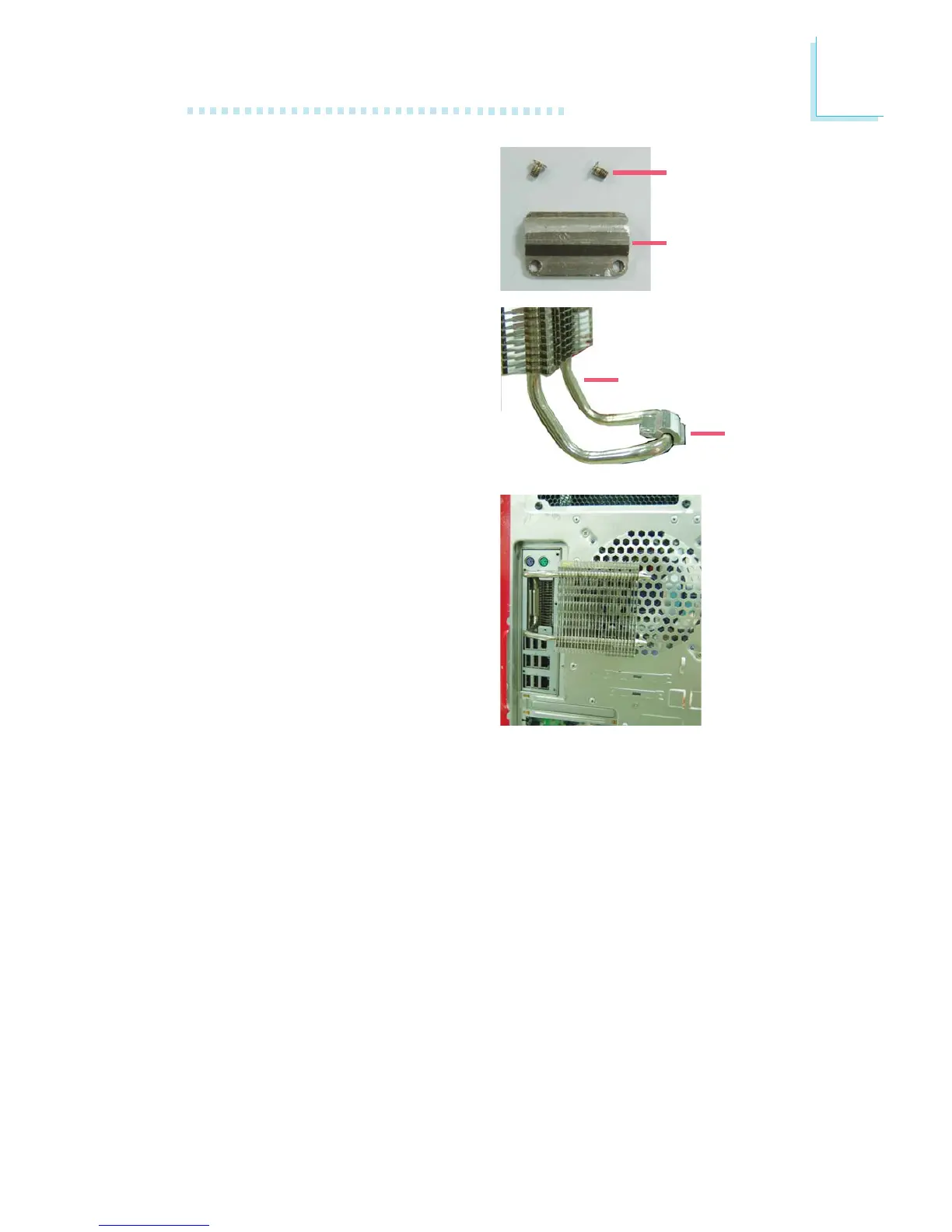

5. With the raised bump of the
mounting clip facing upward,
position the mounting clip on the
heat sink as shown on the right.
Mounting clip
Mounting screws
Mounting
clip
Heat sink
6. With the mounting clip still in
place (as shown above), insert
the heat sink from a 45
o
angle.
You need to exert some force
to be able to push it all the way
in. You will notice that the
mounting clip will hold the heat
sink securely once it is in place.
