Hardware Installation
Bernstein Audio Module
Line-in Jack (Light Blue)
This jack is used to connect any audio devices such as Hi-fi set, CD
player, tape player, AM/FM radio tuner, synthesizer, etc.
Line-out Jack (Lime)
This jack is used to connect to the front right and front left speakers
of the audio system.
Mic-in Jack (Pink)
This jack is used to connect an external microphone.
Center/Subwoofer Jack (Orange)
This jack is used to connect to the center and subwoofer speakers
of the audio system.
Rear Right/Left Jack (Black)
This jack is used to connect to the rear right and rear left speakers
of the audio system.
Side Right/Left Jack (Gray)
This jack is used to connect to the side left and side right speakers
of the audio system.
Line-in
Line-out
Mic-in
Center/
Subwoofer
Rear R/L
Side R/L
S/PDIF-in
S/PDIF-out
Side view
1
5
+5V
Key
SPDIF out
GND
SPDIF in

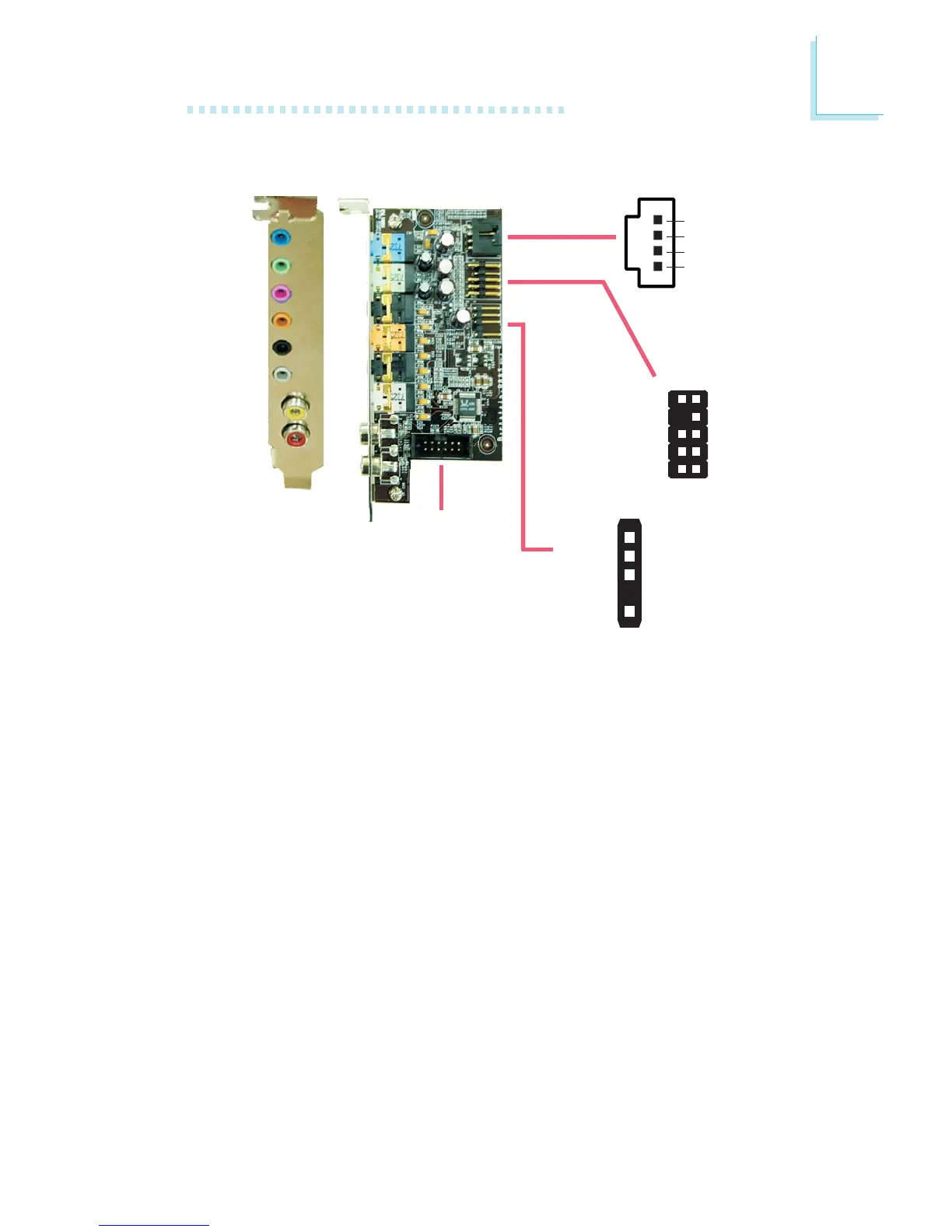

Optical S/PDIF
Bernstein audio
module connector
12
10 9
Mic_Left
GND
Mic_Right
Vcc
Line out_Right
Mic Jet Detect
Sense
N. C.
Line out_LeftLine out Jet Detect
Front audio
CD-in
1
4
Right audio channel
Left audio channel
Ground
Ground
