Hardware Installation

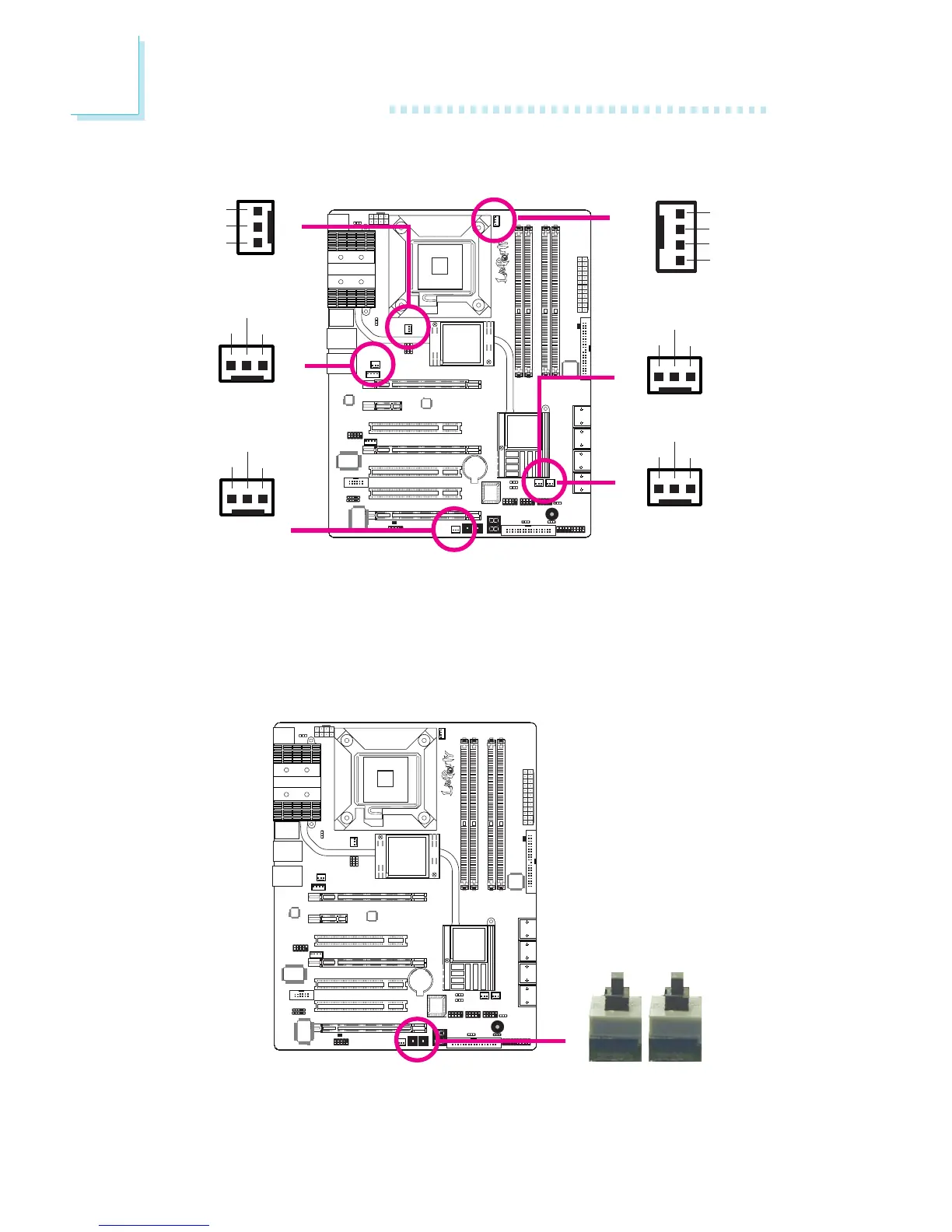

Cooling Fan Connectors
These fan connectors are used to connect cooling fans. Cooling fans
will provide adequate airflow throughout the chassis to prevent over-
heating the CPU and system board components.
X
X
CPU fan
2nd fan
1st fan
X
3rd fan
System fan
13
Ground
Power
N. C.
X
X
X
EZ Touch Switches
The presence of the power switch and reset switch on the system
board are user-friendly especially to DIY users. They provide conven-
ience in powering on and/or resetting the system while fine tuning
the system board before it is installed into the system chassis.
X
Sense
Power
Ground
Speed
Control
1
4
13
Ground
Power
N. C.
13
Ground
Power
N. C.
1
3
Ground
Power
N. C.
13
Ground
Power
N. C.
NB fan
Reset Power
