HDK8450 (SM8450P) Processor User Guide Main board
80-28453-2 Rev. C Confidential – Qualcomm Technologies, Inc. and/or its affiliated companies – May Contain Trade Secrets 10
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION

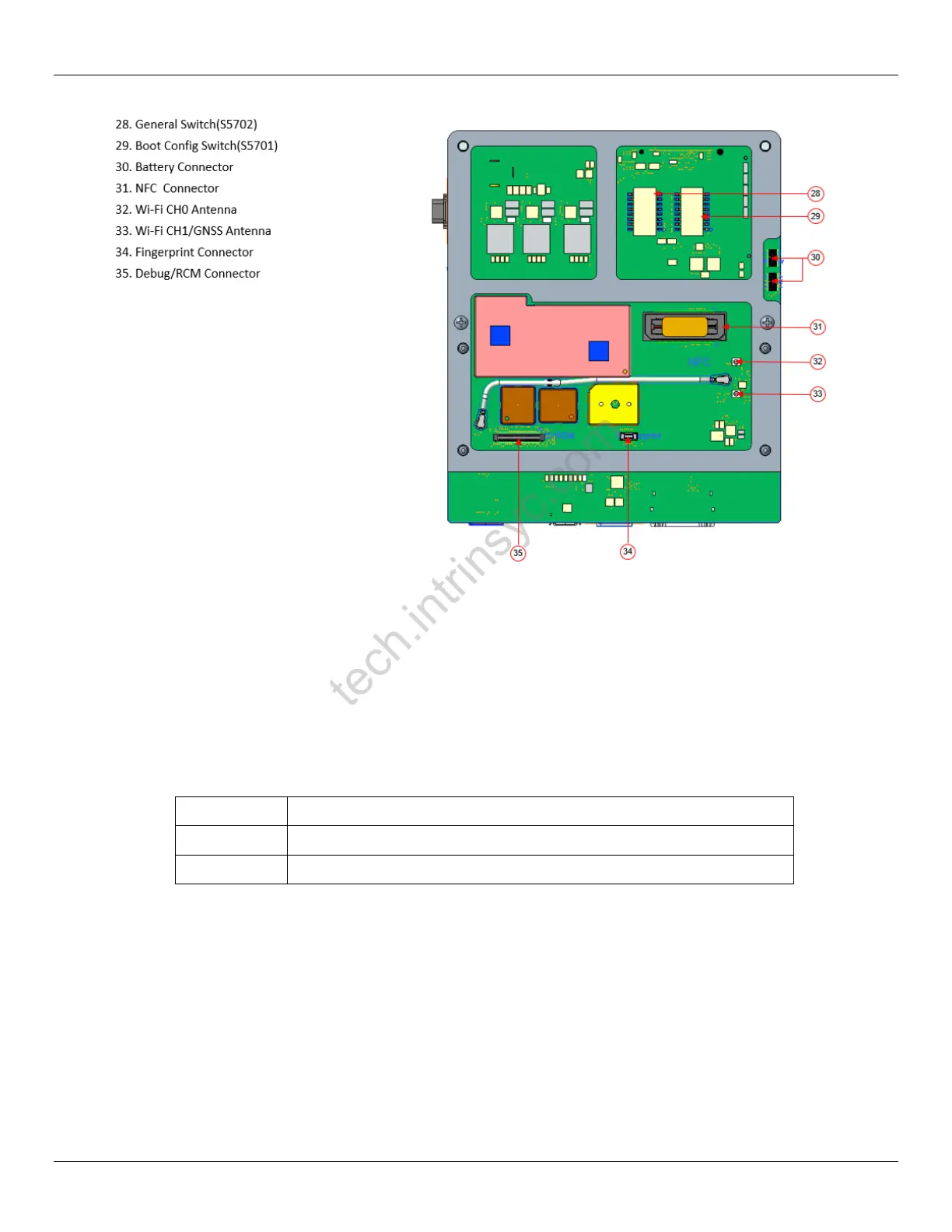

Figure 3-2 HDK8450 main board bottom
3.1 Main board mechanical properties
The HDK8450 Main Board measuring 100 mm x 85 mm is where all the processing occurs. It is
connected to the Expansion Card via two 60 pin high speed, and one 40 pin low speed board-to-
board connectors. The purpose of the connectors is to bring out essential signals so that other
peripherals can interface with the platform.
Table 3-1 HDK8450 MAIN BOARD Mechanical Properties
Dimension
85 cm
2
(100 mm x 85 mm)
Interface
2 x 60 pin high speed and 1 x 40 pin low speed board-to-board connectors
Thermal
A top side graphite sheet is stuck by default.
tech.intrinsyc.com
Confidential -- Lantronix, Inc. Lantronix NDA Requir
ed
