Lantronix Qualcomm HDK8450 - SD Socket; Rear Camera Card Connector; Figure 3-13 J5501 SD Socket; Figure 3-14 J4701 Rear Camera Connector

HDK8450 (SM8450P) Processor User Guide Main board
80-28453-2 Rev. C Confidential – Qualcomm Technologies, Inc. and/or its affiliated companies – May Contain Trade Secrets 23
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
3.4.7 SD socket
The on-board Micro SD socket supports micro SD card speed up to UHS104 (SDR104).

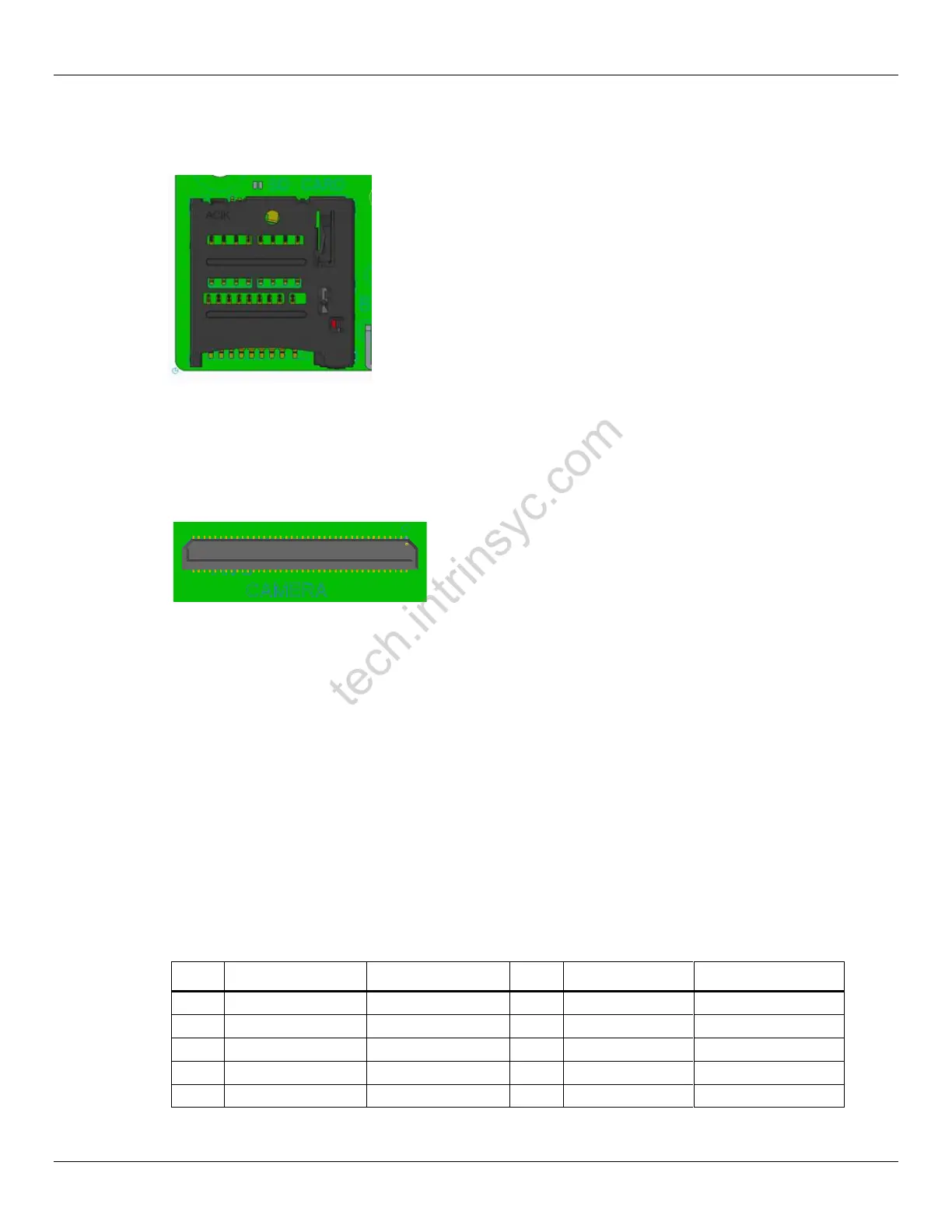

Figure 3-12 J5501 SD socket
3.4.8 Rear Camera card connector
The HDK8450 development kit supports four 4-Lane MIPI camera interfaces via a 160pin
connector.
Figure 3-13 J4701 Rear Camera Connector
The following are some features of the camera connectors:
■ 4 x 4-Lane MIPI CSI signals, CSI0, CSI1, CSI2 and CSI3
■ Support for 3D camera configuration
■ Separate I2C control (CCI0/1/2/3)
■ On-board Amphenol 11828-1DA connector for expanding MIPI, MCLK, CCI, GPIOs and
Power rails.
■ The recommended mating connector on a camera card is Amphenol 11826-BDA.
■ If existing 30-12807-1 camera card is used, it will be on the same side with display, customer
could adjust the angle in software if needed
Table below lists the pinout of the camera connector.
Table 3-7 Camera Expansion Connector Pinout
Pin#
Signal
Description
Pin#
Signal
Description
A1
GND
B1
GND
A2
CSI0_C2_LN3_M
CSI0 data
B2
CSI2_C2_LN3_M
CSI2 data
A3
CSI0_B2_LN3_P
CSI0 data
B3
CSI2_B2_LN3_P
CSI2 data
A4
CSI0_A2_LN2_M
CSI0 data
B4
CSI2_A2_LN2_M
CSI2 data
A5
CSI0_C1_LN2_P
CSI0 data
B5
CSI2_C1_LN2_P
CSI2 data
