Lantronix Qualcomm HDK8450 User Manual

HDK8450 (SM8450P) Processor User Guide Main board
80-28453-2 Rev. C Confidential – Qualcomm Technologies, Inc. and/or its affiliated companies – May Contain Trade Secrets 30
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Pin#
Signal
Description
Pin#
Signal
Description
J5903[59]
NC
J5903[6
0]
NC
3.4.12 Vertigo sensor connector
The HDK8450 has a 30-pin connector (449-53935-0030) to support Vertigo13 or following
sensor cards that are supported on CDP8350.
Vertigo12 sensor card is designed and managed by the sensor core team.

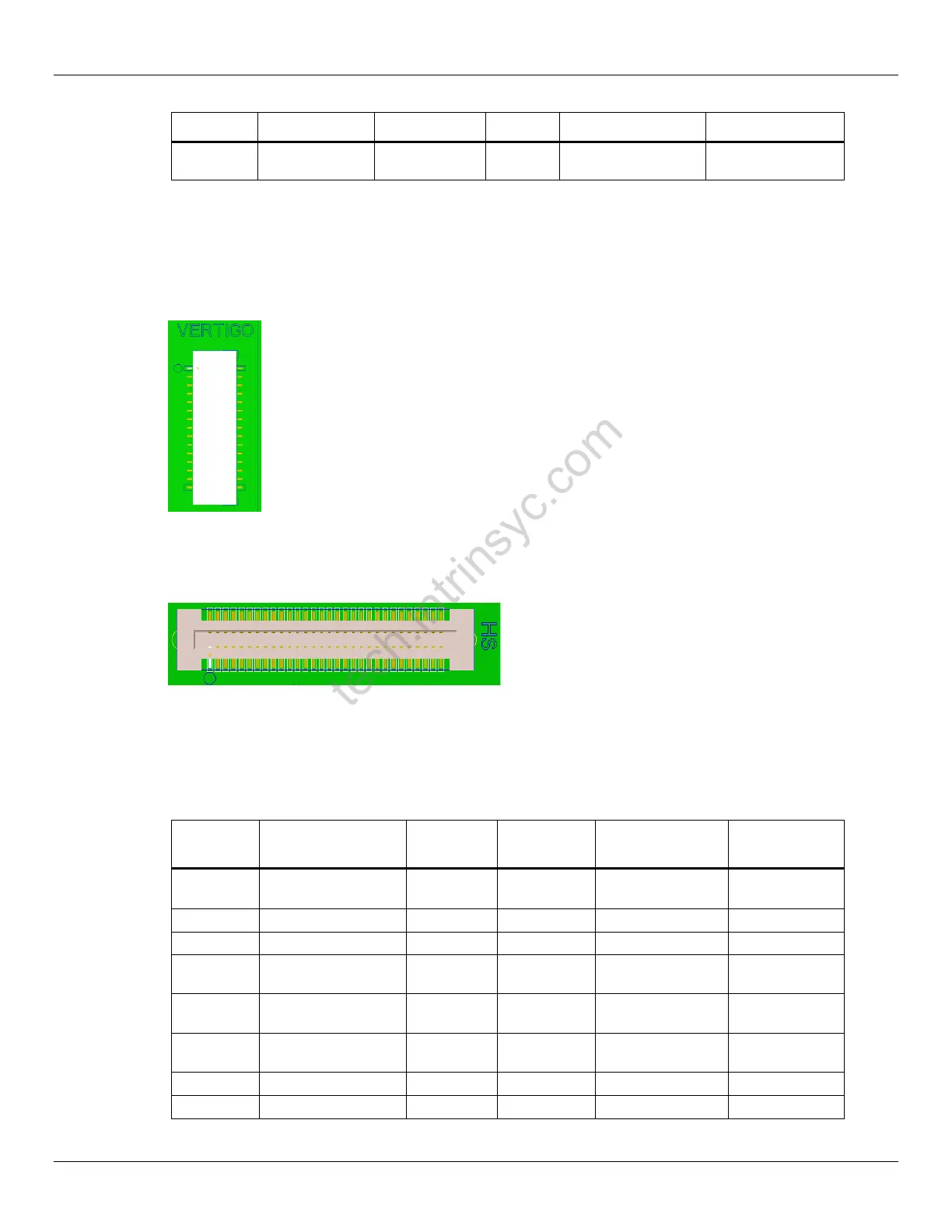

Figure 3-16 J5901 Vertigo Connector
3.4.13 High speed expansion connector
Figure 3-17 J6001 High Speed Expansion Connector
High speed expansion connector provides DSI0, CSI4/5 and other signals such as SPI/USB HS.
This interface is compliant with 96boards spec.
Table 3-10 High Speed Expansion Connector Pinout
Pin#
Signal
Descriptio
n
Pin#
Signal
Description
J6001[1]
SENSOR_SPI2_MO
SI
GPIO199
J6001[2]
NC
J6001[3]
NC
J6001[4]
NC
J6001[5]
NC
J6001[6]
GND
J6001[7]
SENSOR_SPI2_CS
_N
GPIO201
J6001[8]
NC
J6001[9]
SENSOR_SPI2_CL
SK
GPIO200
J6001[10]
NC
J6001[11]
SENSOR_SPI2_MIS
O
GPIO198
J6001[12]
GND
J6001[13]
GND
J6001[14]
NC
J6001[15]
NC
J6001[16]
NC
tech.intrinsyc.com
Confidential -- Lantronix, Inc. Lantronix NDA Requir
ed
