Function
DIP
Switch
Description
Notes
BATT_ID1
S5702-4
Connect BATT_ID to resistor
2(reserved). Default is disconnected.
Default out of the box
configuration is OFF
BATT_THERM0
S5702-5
Connect BATT_THERM to resistor
1(100K). Default is disconnected.
Default out of the box
configuration is OFF
BATT_THERM1
S5702-6
Connect BATT_THERM to resistor
1(reserved). Default is disconnected.
Default out of the box
configuration is OFF
DSI0_SW
S5702-7
Manually select DSI0 data path
between display panel and HDMI.
Default route DSI0 to the display
panel.
Default out of the box
configuration is OFF
DSI1_SW
S5702-8
Manually select DSI1 data path
between display panel and HDMI.
Default route DSI1 to the display
panel.
Default out of the box
configuration is OFF
3.3.1 Development kit setup – display mode(default)
Display panel is the default output. Make sure switch7&8 of S5702 is OFF before turning on the
device.
Software detects the status of Switch7&8 and automatically configurate the output to support
display panel.

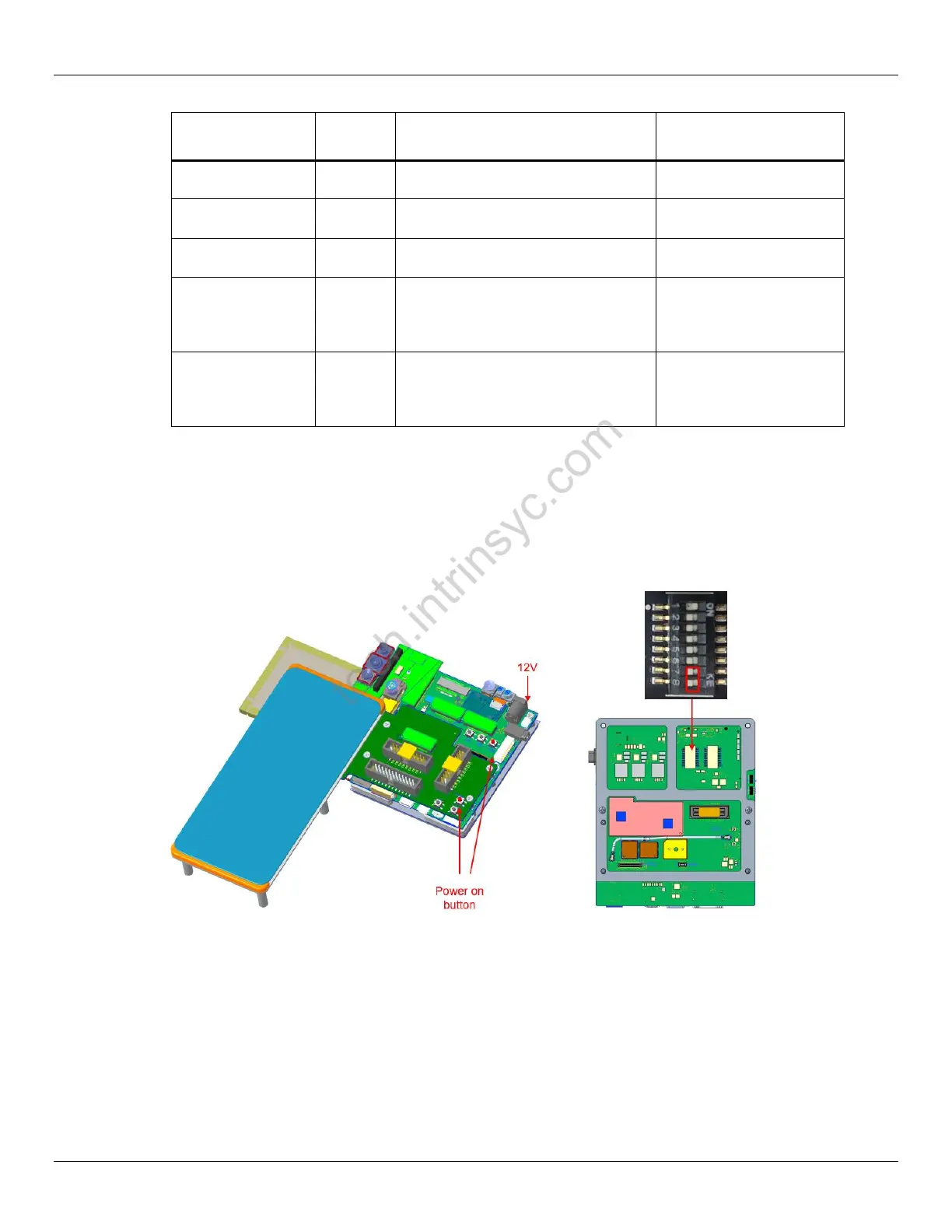

Figure 3-3 Display Mode Setup
3.3.2 Development kit setup – HDMI mode
Make sure switch7&8 of S5702 is ON before turning on the device.
Software detects the status of Switch8 and automatically config the output to support HDMI
output.
