HDK8450 (SM8450P) Processor User Guide Main board
80-28453-2 Rev. C Confidential – Qualcomm Technologies, Inc. and/or its affiliated companies – May Contain Trade Secrets 26
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
Pin
#
Signal
Description
Pin#
Signal
Description
C38
GND
Ground
D38
GND
Ground
C39
CAM_FLASH_1_4
Flash LED1
D39
CAM_FLASH_1_4
Flash LED1
C40
GND
Ground
D40
GND
Ground
3.4.9 Front camera card connector

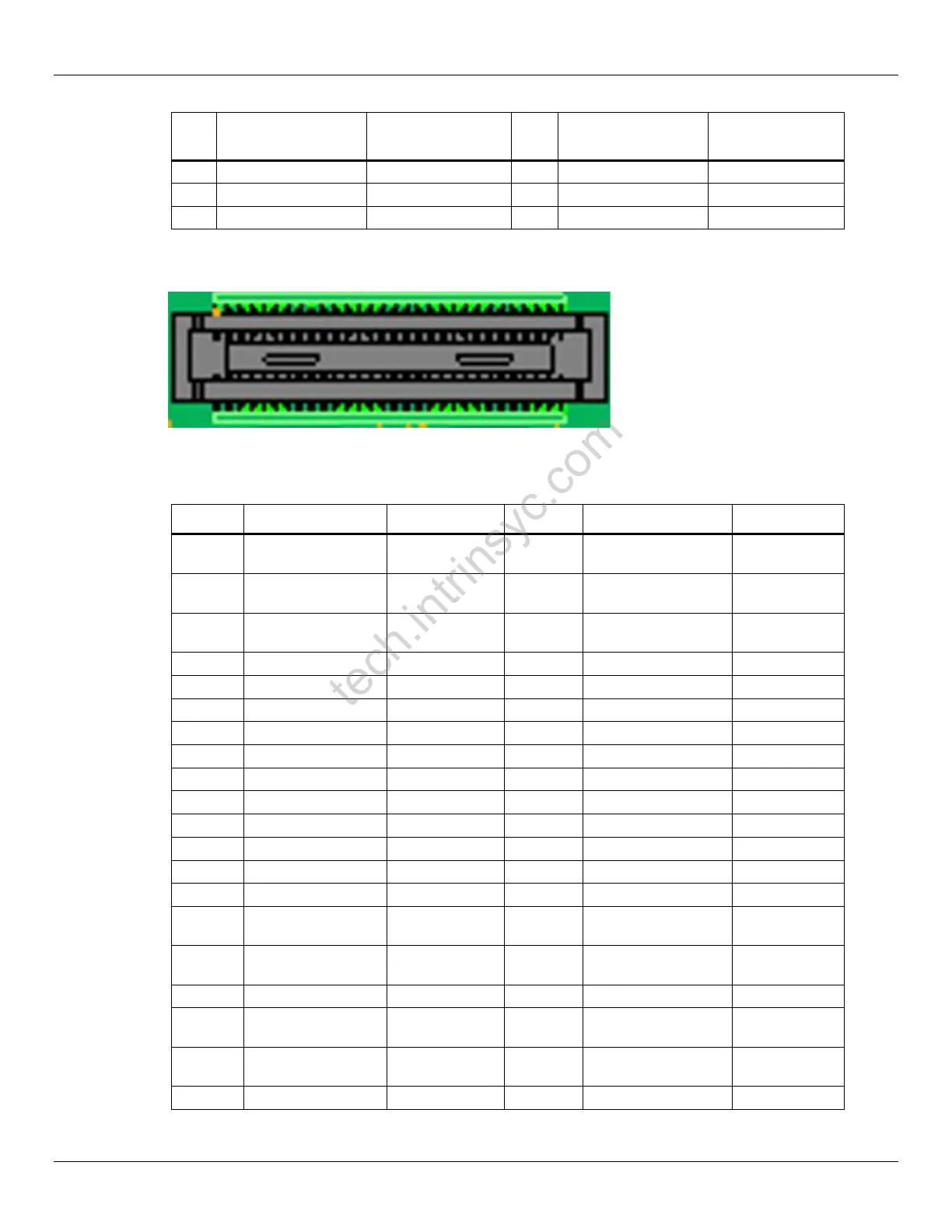

Figure 3-6 J4601 Front Camera Card Connector
Table 3-7 Front Camera Card Connector Pinout
Pin#
Signal
Description
Pin#
Signal
Description
J901[1]
VREG_L2I_1P05
1.05V power
supplier
J901[2]
VREG_L3J_1P8
1.8V power
supplier
J901[3]
VREG_L2I_1P05
1.05V power
supplier
J901[4]
GND
Ground
J901[5]
VREG_L2I_1P05
1.05V power
supplier
J901[6]
CCI_I2C2_SDA
GPIO114
J901[7]
GND
Ground
J901[8]
CCI_I2C2_SSC
GPIO115
J901[9]
CSI5_C2_LN3_M
CSI5 Data
J901[10]
GND
Ground
J901[11]
CSI5_C2_LN3_P
CSI5 Data
J901[12]
CSI5_A2_LN2_M
CSI5 Data
J901[13]
GND
Ground
J901[14]
CSI5_C1_LN2_P
CSI5 Data
J901[15]
CSI5_B1_LN1_M
CSI5 Data
J901[16]
GND
Ground
J901[17]
CSI5_B1_LN1_P
CSI5 Data
J901[18]
CSI5_C0_LN0_M
CSI5 Data
J901[19]
GND
Ground
J901[20]
CSI5_B0_LN0_P
CSI5 Data
J901[21]
CSI5_A0_CLK_M
CSI5 Clock
J901[22]
GND
Ground
J901[23]
CSI5_A0_CLK_P
CSI5 Clock
J901[24]
CCI_I2C3_SDA
GPIO208
J901[25]
GND
Ground
J901[26]
CCI_I2C3_SCL
GPIO209
J901[27]
CAM4_RESET_N
GPIO119
J901[28]
GND
Ground
J901[29]
VREG_TOF_BOB
3.6V power
supplier
J901[30]
VREG_TOF_BOB
3.6V power
supplier
J901[31]
VREG_TOF_BOB
3.6V power
supplier
J901[32]
VREG_TOF_BOB
3.6V power
supplier
J901[33]
CAM5_RESET_N
GPIO118
J901[34]
CAM_MCLK6
GPIO106
J901[35]
CAM_MCLK5
GPIO105
J901[36]
VREG_L5J_2P8
2.8V power
supplier
J901[37]
GND
Ground
J901[38]
VREG_L2J_1P05
1.05V power
supplier
J901[39]
CSI4_C2_LN3_M
CSI4 Data
J901[40]
CAM_MCLK4
GPIO104
tech.intrinsyc.com
Confidential -- Lantronix, Inc. Lantronix NDA Requir
ed
