HDK8450 (SM8450P) Processor User Guide Main board
80-28453-2 Rev. C Confidential – Qualcomm Technologies, Inc. and/or its affiliated companies – May Contain Trade Secrets 32
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
3.4.14 High speed expansion connector-2

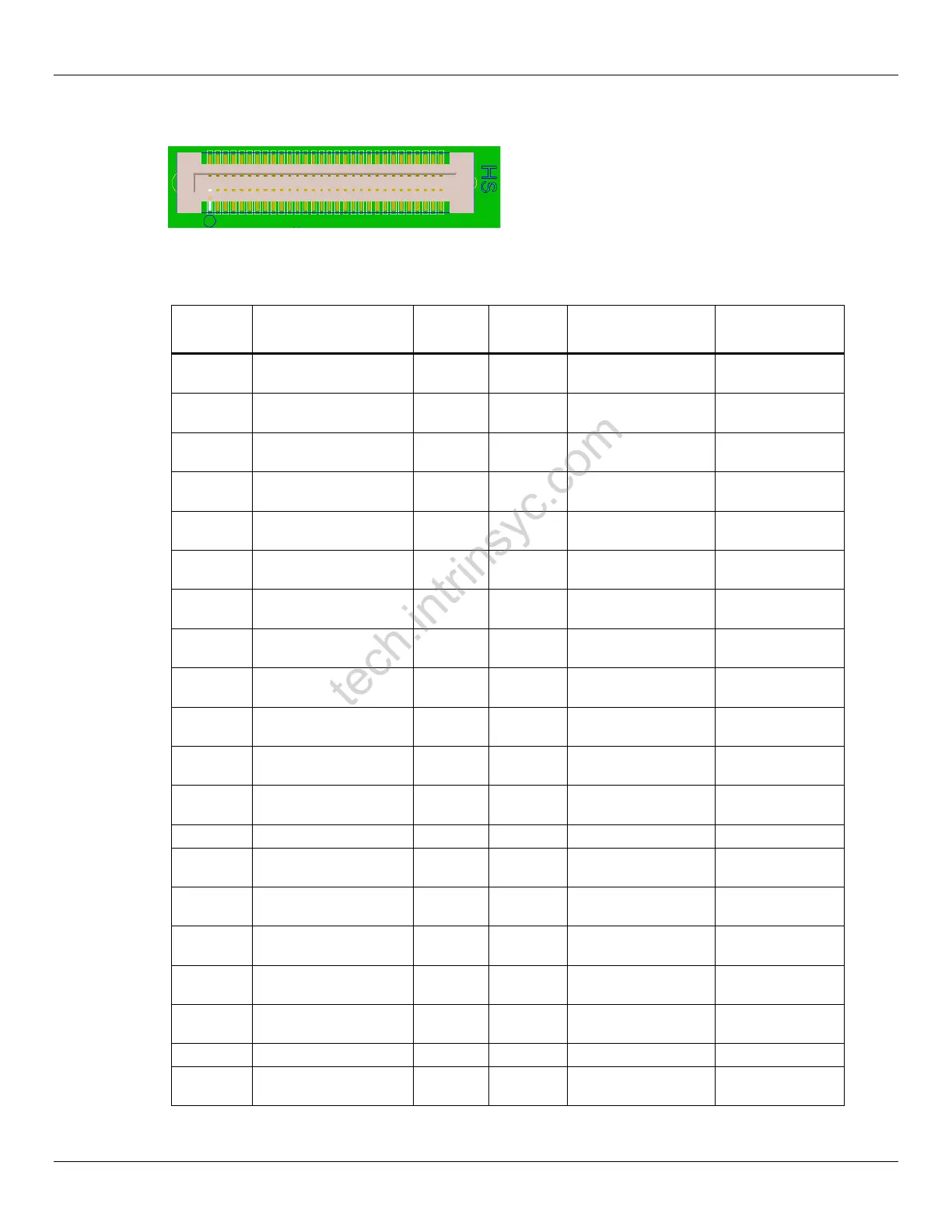

Figure 3-18 J6101 High Speed Expansion Connector -2
Table 3-11 High Speed Expansion Connector Pinout
Pin#
Signal
Descript
ion
Pin#
Signal
Description
J6101[1]
TS_SPI_CS_N
GPIO19
J6101[2]
VREG_ELVSS
OLED negative
supplier
J6101[3]
TS_SPI_CLK
GPIO18
J6101[4]
VREG_ELVSS
OLED negative
supplier
J6101[5]
TS_INT_N
GPIO21
J6101[6]
VREG_ELVDD
OLED positive
supplier
J6101[7]
TS_RESET_N
GPIO20
J6101[8]
VREG_ELVDD
OLED positive
supplier
J6101[9]
VDISP_SCTRL
PM8350
B
J6101[10]
VREG_OLEDB
OLED bias
J6101[11]
LCD_PWM
PM8350
C
J6101[12]
VREG_L12C_1P8
1.8V power
supplier
J6101[13]
OLEDB_EN
PM8350
B
J6101[14]
VREG_L13C_3P0
3.0V power
supplier
J6101[15]
DISP0_RESET_N
GPIO32
J6101[16]
VREG_L8C_1P8
1.8V power
supplier
J6101[17]
MDP_VSYNC_P
GPIO86
J6101[18]
VREG_L3C_3P0
3.0V power
supplier
J6101[19]
GND
Ground
J6101[20]
VREG_L8C_1P8_S
NS
1.8V power
supplier
J6101[21]
MIPI_DSI1_CLK_P_DI
SP
DSI1
clock
J6101[22]
VREG_L7C_3P0_S
NS
3.0V power
supplier
J6101[23]
MIPI_DSI1_CLK_M_DI
SP
DSI1
clock
J6101[24]
VREG_TP_VDDIO_
1P8
1.8V power
supplier
J6101[25]
GND
Ground
J6101[26]
VREG_DDIC
PM8350B
J6101[27]
MIPI_DSI1_LANE0_P
_DISP
DSI1
data
J6101[28]
TS_INT2_N
J6101[29]
MIPI_DSI1_LANE0_M
_DISP
DSI1
data
J6101[30]
TP_SPI_MOSI_I2C_
SCL
GPIO17
J6101[31]
GND
Ground
J6101[32]
TP_SPI_MISO_I2C_
SDA
GPIO16
J6101[33]
MIPI_DSI1_LANE1_P
_DISP
DSI1
data
J6101[34]
GND
Ground
J6101[35]
MIPI_DSI1_LANE1_M
_DISP
DSI1
data
J6101[36]
WCD_MIC_BIAS3
MIC bias3
J6101[37]
GND
Ground
J6101[38]
WCD_MIC_BIAS1
MIC bias1
J6101[39]
MIPI_DSI1_LANE2_P
_DISP
DSI1
data
J6101[40]
MIC01_DATA
Analog mic1
