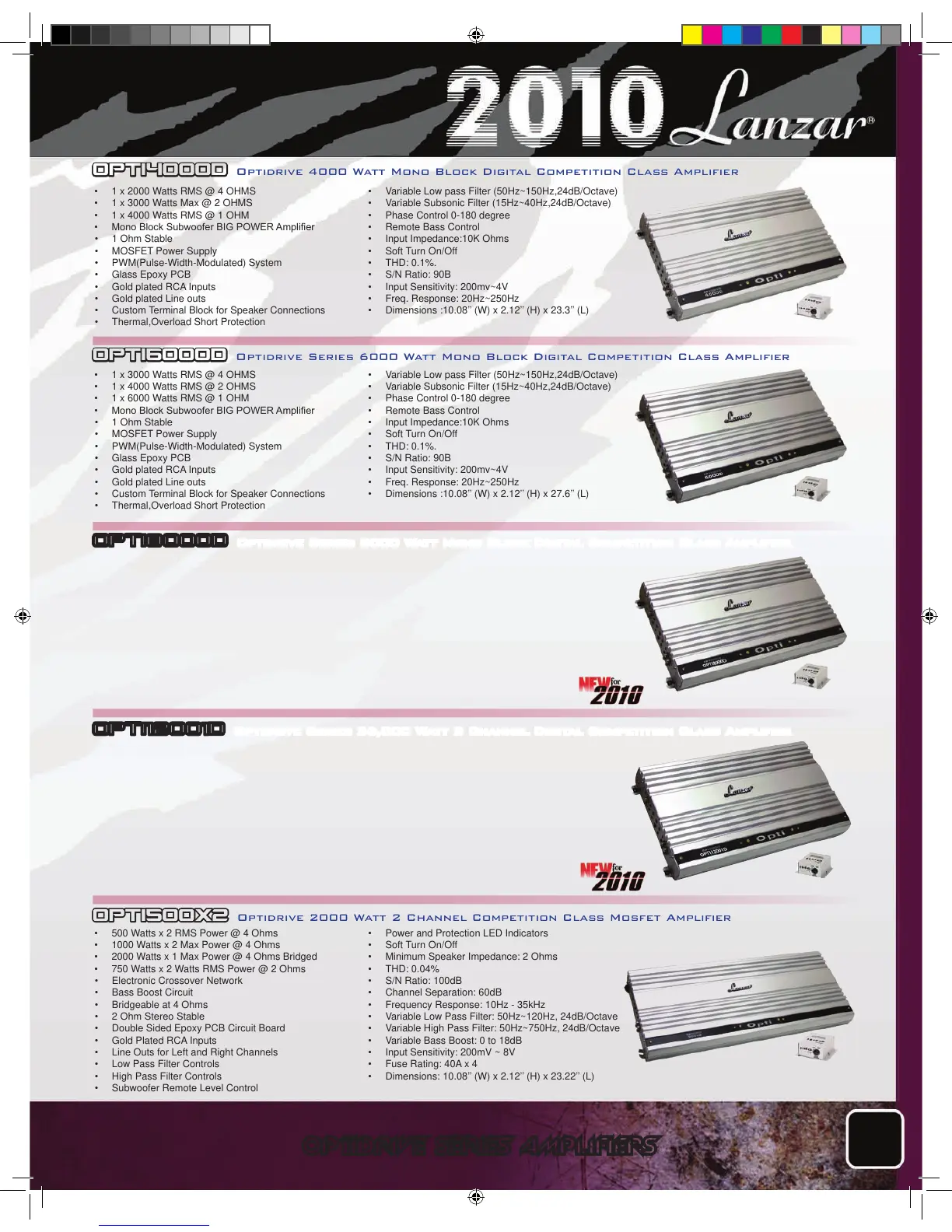

Lanzar VBP251 - OPTII400 D OPTIDRIVE 4000 WATT MONO BLOCK DIGITAL COMPETITION CLASS AMPLIFIER; OPTI600 D OPTIDRIVE SERIES 6000 WATT MONO BLOCK DIGITAL COMPETITION CLASS AMPLIFIER; OPTI800 D OPTIDRIVE SERIES 800 WATT MONO BLOCK DIGITAL COMPETITION CLASS AMPLIFIER; OPTI12001 D OPTIDrive Series 26,000 Watt 2 Channel Digital Competition Class AmpPLIFIER

7
OPTI4000D Optidrive 4000 Watt Mono Block Digital Competition Class Amplifier
1 x 2000 Watts RMS @ 4 OHMS •
1 x 3000 Watts Max @ 2 OHMS •
1 x 4000 Watts RMS @ 1 OHM •
Mono Block Subwoofer BIG POWER Amplier •
1 Ohm Stable •
MOSFET Power Supply •
PWM(Pulse-Width-Modulated) System •
Glass Epoxy PCB •
Gold plated RCA Inputs •
Gold plated Line outs •
Custom Terminal Block for Speaker Connections •
Thermal,Overload Short Protection •
Variable Low pass Filter (50Hz~150Hz,24dB/Octave) •
Variable Subsonic Filter (15Hz~40Hz,24dB/Octave) •
Phase Control 0-180 degree •
Remote Bass Control •
Input Impedance:10K Ohms •
Soft Turn On/Off •
THD: 0.1%. •
S/N Ratio: 90B •
Input Sensitivity: 200mv~4V •
Freq. Response: 20Hz~250Hz •
Dimensions :10.08’’ (W) x 2.12’’ (H) x 23.3’’ (L)•
OPTI6000D Optidrive Series 6000 Watt Mono Block Digital Competition Class Amplifier
1 x 3000 Watts RMS @ 4 OHMS •
1 x 4000 Watts RMS @ 2 OHMS •
1 x 6000 Watts RMS @ 1 OHM •
Mono Block Subwoofer BIG POWER Amplier •
1 Ohm Stable •
MOSFET Power Supply •
PWM(Pulse-Width-Modulated) System •
Glass Epoxy PCB •
Gold plated RCA Inputs •
Gold plated Line outs •
Custom Terminal Block for Speaker Connections •
Thermal,Overload Short Protection •
Variable Low pass Filter (50Hz~150Hz,24dB/Octave) •
Variable Subsonic Filter (15Hz~40Hz,24dB/Octave) •
Phase Control 0-180 degree •
Remote Bass Control •
Input Impedance:10K Ohms •
Soft Turn On/Off •
THD: 0.1%. •
S/N Ratio: 90B •
Input Sensitivity: 200mv~4V •
Freq. Response: 20Hz~250Hz •
Dimensions :10.08’’ (W) x 2.12’’ (H) x 27.6’’ (L)•
OPTI500X2 Optidrive 2000 Watt 2 Channel Competition Class Mosfet Amplifier
500 Watts x 2 RMS Power @ 4 Ohms •
1000 Watts x 2 Max Power @ 4 Ohms •
2000 Watts x 1 Max Power @ 4 Ohms Bridged •
750 Watts x 2 Watts RMS Power @ 2 Ohms •
Electronic Crossover Network •
Bass Boost Circuit •
Bridgeable at 4 Ohms •
2 Ohm Stereo Stable •
Double Sided Epoxy PCB Circuit Board •
Gold Plated RCA Inputs •
Line Outs for Left and Right Channels •
Low Pass Filter Controls •
High Pass Filter Controls •
Subwoofer Remote Level Control •
Power and Protection LED Indicators •
Soft Turn On/Off •
Minimum Speaker Impedance: 2 Ohms •
THD: 0.04% •
S/N Ratio: 100dB •
Channel Separation: 60dB •
Frequency Response: 10Hz - 35kHz •
Variable Low Pass Filter: 50Hz~120Hz, 24dB/Octave •
Variable High Pass Filter: 50Hz~750Hz, 24dB/Octave •
Variable Bass Boost: 0 to 18dB •
Input Sensitivity: 200mV ~ 8V •
Fuse Rating: 40A x 4 •
Dimensions: 10.08’’ (W) x 2.12’’ (H) x 23.22’’ (L)•
OPTI8000D Optidrive Series 8000 Watt Mono Block Digital Competition Class Amplifier
1 x 1500 Watts RMS @ 4 OHMS •
1 x 2400 Watts RMS @ 2 OHMS •
1 x 4500 Watts RMS @ 1 OHM •
Mono Block Subwoofer BIG POWER Amplier •
1 Ohm Stable •
MOSFET Power Supply •
PWM (Pulse-Width-Modulated) System •
Glass Epoxy PCB •
Gold plated RCA Inputs •
Gold plated Line outs •
Custom Terminal Block for Speaker Connections •
Thermal,Overload Short Protection •
Variable Low pass Filter (35Hz~250Hz,24dB/Octave) •
Variable Subsonic Filter (10Hz~50Hz,24dB/Octave) •
Phase Control 0-180 degree •
Remote Bass Control •
Input Impedance:10K Ohms •
Soft Turn On/Off •
THD: 0.1%. •
S/N Ratio: 90B •
Input Sensitivity: 200mv~7.6V •
Freq. Response: 20Hz~250Hz •
Dimensions :12.99’’W x 2.63’’H x 23.22’’L•
OPTI12001D Optidrive Series 26,000 Watt 2 Channel Digital Competition Class Amplifier
2 x 1340 Watts RMS @ 4 OHMS •
2 x 2400 Watts RMS @ 2 OHMS •
2 x 4100 Watts RMS @ 1 OHM •
2 x 13,000 Watts Peak @ 1 OHM •
Mono Block Subwoofer BIG POWER Amplier •
1 Ohm Stable •
MOSFET Power Supply •
PWM(Pulse-Width-Modulated) System •
Glass Epoxy PCB •
Gold plated RCA Inputs •
Gold plated Line outs •
Custom Terminal Block for Speaker Connections •
Thermal,Overload Short Protection •
Variable Low pass Filter (35Hz~250Hz,24dB/Octave) •
Variable Subsonic Filter (10Hz~50Hz,24dB/Octave) •
Phase Control 0-180 degree •
Remote Bass Control •
Input Impedance:10K Ohms •
Soft Turn On/Off •
THD: 0.1%. •
S/N Ratio: 90B •
Input Sensitivity: 200mv~7.6V •
Freq. Response: 20Hz~250Hz •
Dimensions :12.99’’W x 2.63’’H x 31.49’’L•
optidrive series amplifiers
