LT-4100 User & Installation Manual Rev 1.00 Web server
Lars Thrane A/S www.thrane.eu Page 100 of 129
GNSS and BAM
The LT-4100 system has a built-in GNSS receiver located in the LT-4130 Antenna Unit. The GNSS receiver is
used for time, date and position of the LT-4100 system, for example by the tracking application. The GNSS
receiver can be configured to operate on different satellite systems (e.g. GPS only) - this can be managed
under the GNSS module, as illustrated in Figure 124.
It is possible to configure the following functionality: GNSS and BAM on the LT-4110 Control Unit (CU - AUX)
interface.
This section describes the following configuration options:
• GNSS module
• GNSS (output of NMEA 0183 sentences)
• Bridge Alert Management (BAM)
NOTE: The Port configuration illustrated above in Figure 124 for GNSS and BAM supports the
following baud rates: 4800, 9600, and 38400. The port is bi-directional RS-422. Only BAM
can receive data.

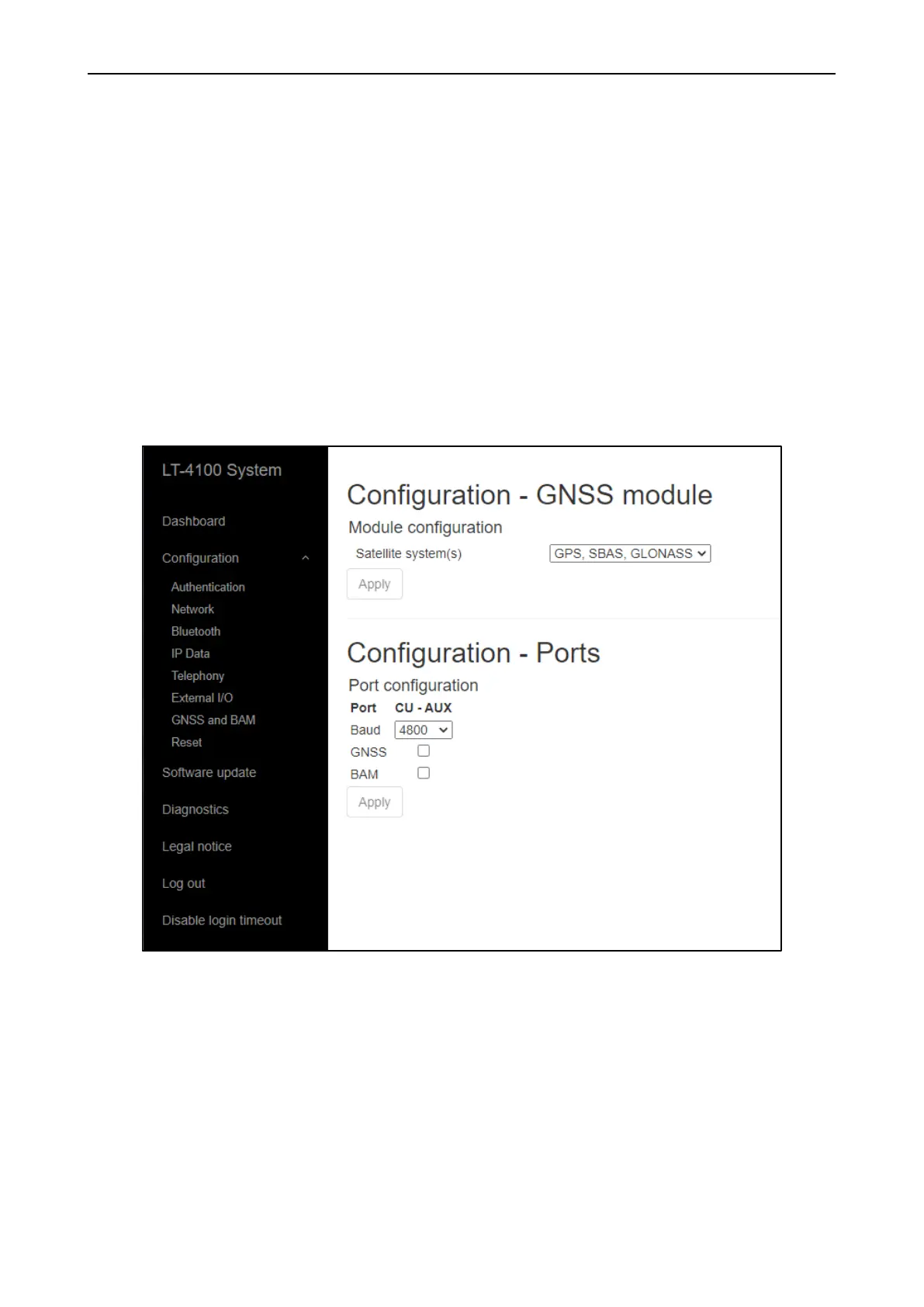

Figure 124: Web server – GNSS and NMEA output
