Lars Thrane Iridium Certus LT-4100 User Manual

LT-4100 User & Installation Manual Rev 1.00 Installation and Mounting
Lars Thrane A/S www.thrane.eu Page 12 of 129
In order to avoid breaking the LT-4130 Antenna Unit N-connector (female), it is important not to use
tooling when connecting and fastening the coaxial cable N-connector (male) to the antenna unit. The
coaxial cable N-connector thread nut must be fastened by hand only.
IMPORTANT: Maximum allowed torque is 2 Nm when connecting the coaxial cable N-connector (male) to
the N-connector (female) of the LT-4130 Antenna Unit. No tooling must be used for
fastening the coaxial cable thread nut as illustrated in Figure 11 above.

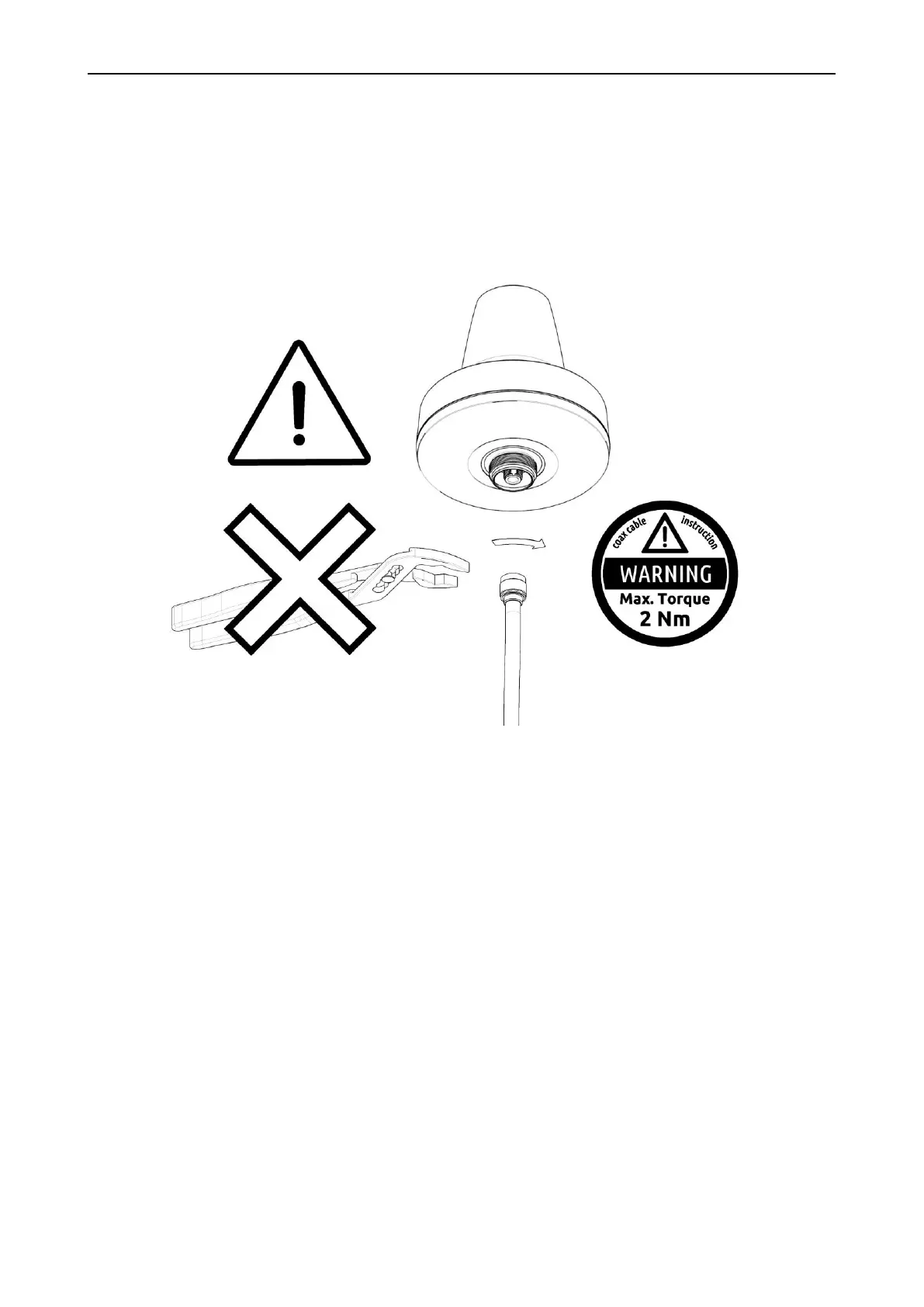

Figure 11: Connecting coaxial cable N-connector to the LT-4130 Antenna Unit
