Larsen & Brusgaard PROTRACK II - Display (Logbook Section)

18 19
Warning Bank area:
9) Indicates active warning bank

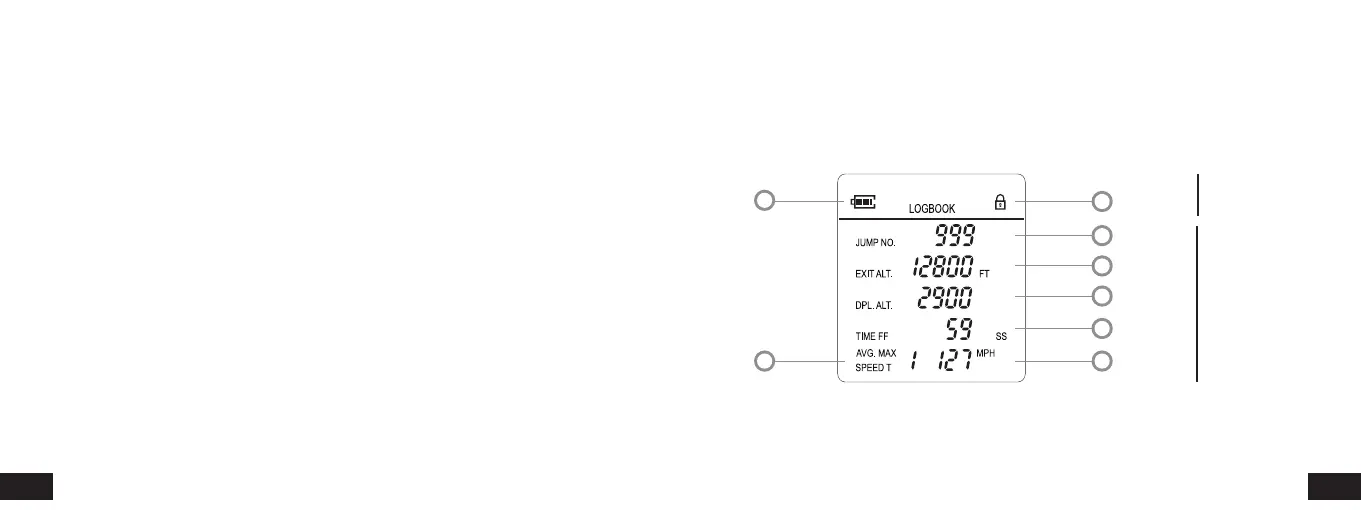

3.3 Display (Logbook section)
Battery and lock area
1) Battery Power Level icon – indicates the remaining battery capacity
2) Padlock icon displays when locked and flashes to control entrance to ACCESS mode
Warning area:
3) 1st warning altitude
4) 2nd warning altitude
5) 3rd warning altitude
6) 4th warning altitude
7) Feet/Meters status
Warning Type area:
8) Indicates either:
Climb to Altitude Warnings (CL)
High Speed Warnings (HI)
Low Speed Warnings (LO)
Battery and lock area
Logbook area
10
17
11
12
13
14
15
16
