Refer to Table 8 (below) and Figure 28 (see page 40) to do the Delta
Distance Test. Note that, for display purposes, each measurement is
rounded to whole feet or tenths of meters.

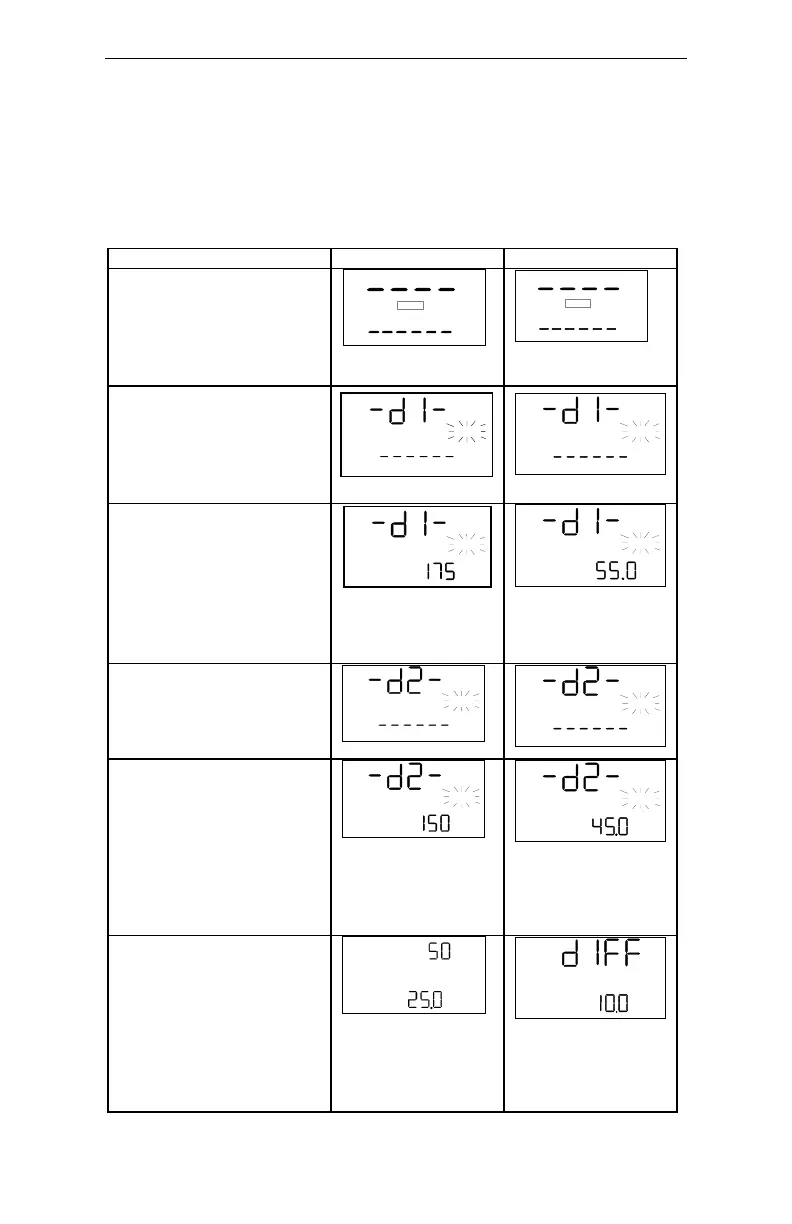

Table 8. Delta Distance Test
Action MPH Results KmH Results
1. Stand on the shooting
mark.
2. Ensure that the
UltraLyte LR B is powered
ON and that the Speed
Mode is active.
m
kmh
SPEED
3. Press the TEST
OPTIONS button
repeatedly until the
screen displays “d1” and
the DELTA indicator
starts to blink.
TEST
m
DELTA
4. Aim to the far target and
press the TRIGGER.
5. Check the display.
The screen displays the
distance to the target ±1
ft. The display should
read 174, 175, or 176 ft.
TEST
m
DELTA
The screen displays the
distance to the target ±15
cm. The display should
read from 54.8 to 55.2 m.
6. Press the TEST
OPTIONS button. The
screen displays “d2.”
TEST
F
DELTA
TEST
m
DELTA
7. Aim to the near target
and press the TRIGGER.
TEST
F
DELTA
The screen displays
the distance to the target
±1 foot. The display
should read from 149,
150, or 151 ft.
TEST
m
DELTA
The screen displays the
distance to the target
±15 cm The display
should read from
44.8 to 45.2 m.
8. Press the TEST
OPTIONS button.
The screen displays the
simulated speed ±1 mph
and the difference
between the two
distances ±6 inches.
TEST DELTA
m
The screen displays the
difference between the
two distances ±30 cm.
If the targets are shot in reverse order, the display is the same,
but appears as a negative number
TEST
F
DELTA
TEST DELTA
F
MPH
TES
T
F
DELTA
