Laser Technology UltraLyte LR B User Manual

Section #1 – Getting Started 12
Electronic Copy of LTI's UltraLyte LR B User's Manual - 2
nd
Edition © 2002
Yoke
Yoke Adapter
Screws (2)
Mounting Bracket
Tighten
the
Knob
Attaching the Yoke
The UltraLyte Yoke is an available accessory that allows you to mount
the UltraLyte LR B on a monopod or tripod. Refer to the instructions
and Figure 7 below to attach the yoke to the UltraLyte LR B.
The yoke can be mounted on either side of the instrument.
When the yoke is mounted on the
left side , the entire assembly
fits into the padded carrying case.
1. Screw the mounting bracket and yoke adapter into the
mounting holes on the side of the instrument base.
2. Fit the yoke onto the mounting bracket.
3. Tighten the knob.

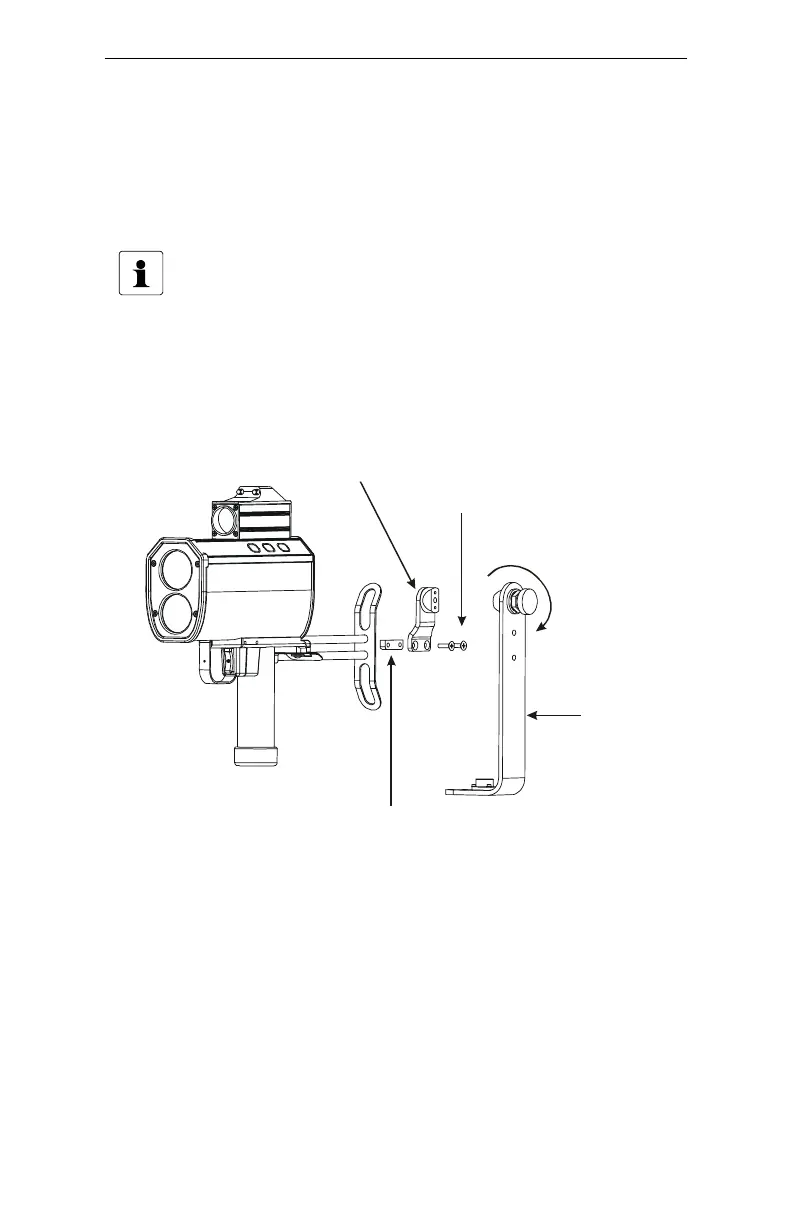

Figure 7. Attaching the Yoke Adapter and Yoke
