Section #1 – Getting Started 10
Electronic Copy of LTI's UltraLyte LR B User's Manual - 2
nd
Edition © 2002
Turn
Knob
Rotate
the
Stock
Rotate
the Stock
Press the
Retaining Plate
Fold-Away Shoulder Stock
The shoulder stock is fully adjustable, and is designed for either
left-handed or right-handed use.
Unfolding the Stock for Left-Handed Use
Refer to the instructions and Figure 4 below to unfold the stock for
left-handed use.
1. Turn the tension knob counter-clockwise to loosen the stock.
2. Rotate the stock 180 degrees.
3. Turn the tension knob clockwise to retighten the stock.
Unfolding the Stock for Right-Handed Use
Refer to the instructions and Figure 5 below to unfold the stock for
right-handed use.
1. Hold the instrument firmly, and press down on the retaining
plate with enough force to disengage the plate from the
stock's retainer peg.
2. Pull the stock away from the body of the instrument and
release the plate.
3. Rotate the stock to the right until the retainer peg re-engages.
You should hear a loud click when the peg re-engages.

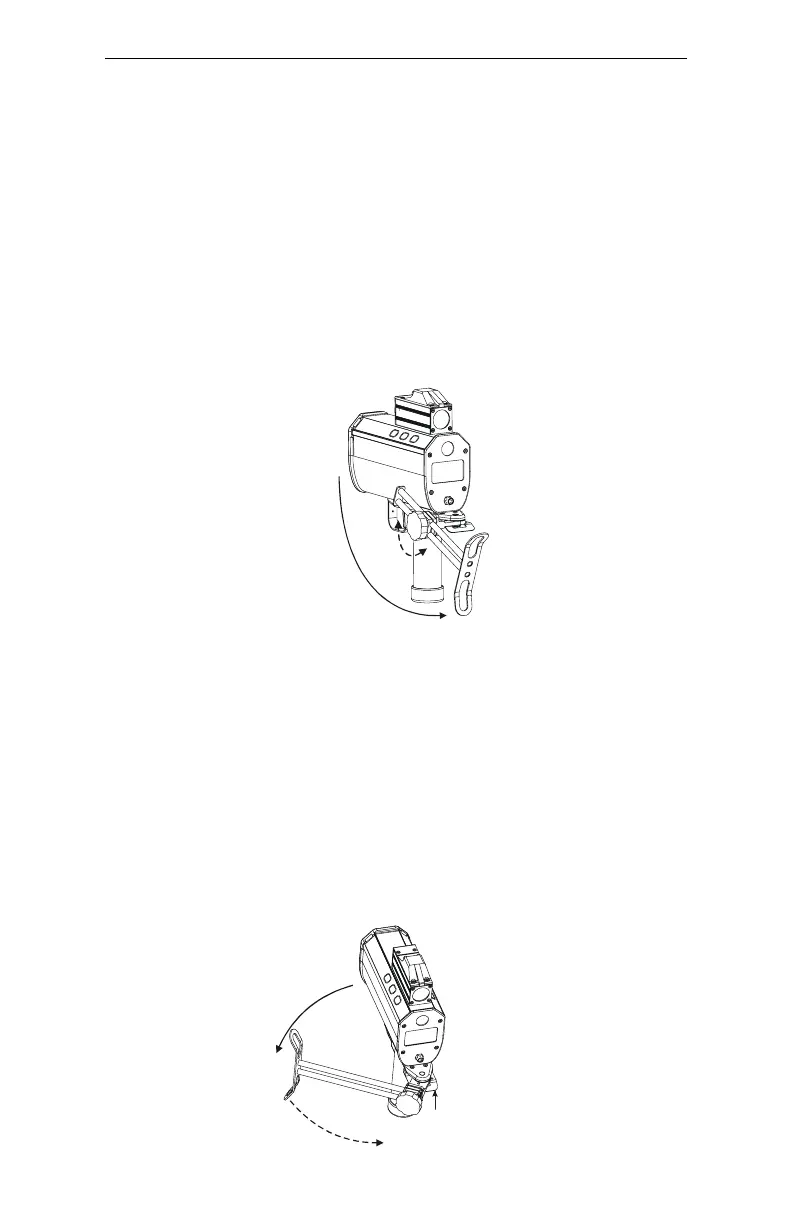

Figure 4. Unfolding the Shoulder Stock for Left-Handed Use
Figure 5. Unfolding the Shoulder Stock for Right-Handed Use
