Mower Deck Height Calibration
Initial Set-Up 9/27/19 3-14
3
7. Use the center turnbuckle on the deck
lift assemblies to level the center deck

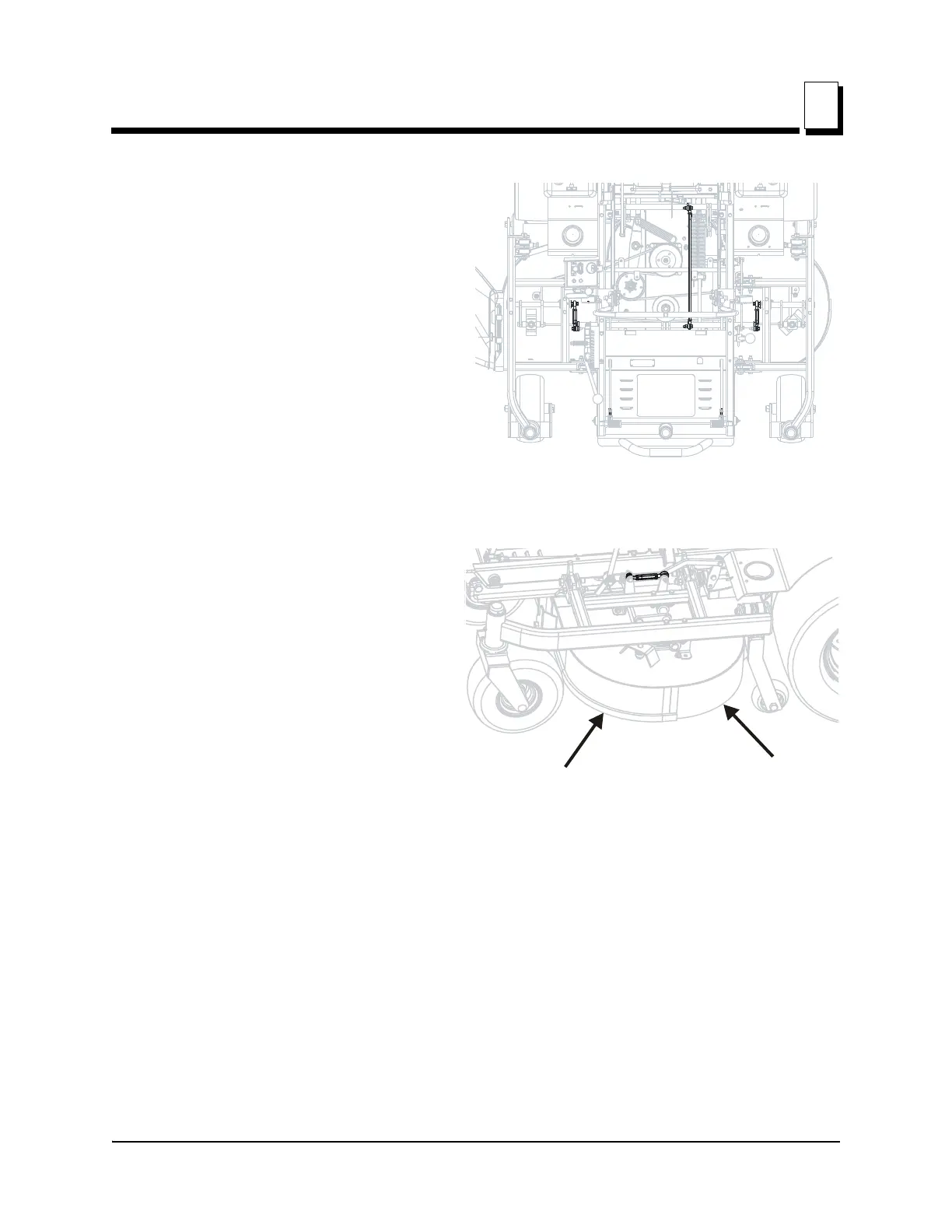

front-to-back. See Figure 3-11.
Tolerances for front-to-back is positive
1/8 inch in the rear -- the rear should
never be lower than the front edge.
Retighten the jam nuts on the turn-
buckle after leveling the deck.
NOTE: The rear deck hangers are also
adjustable. Hangers should have the
same tension on both sides before
adjusting the main turnbuckle. Adjust
the eyebolt until the tension is even on
both hangers, then snug down the jam
nut.
8. When the center deck is level, check
each side deck for levelness.
9. Inspect the hanger rod to make sure
the urethane bushings are snug, but
not overly tight.
NOTE: Do not use these hangers for
adjustment purposes.
10. Raise or lower the deck by means of
the small turnbuckle. See Figures
3-11 and 3-12.
11. Retighten the jam nuts on the turnbuckle after leveling the deck
12. Set the anti-scalp wheel at your “typical” cutting height.
