Lubrication Points and Deck Belt Routing
5-5 9/27/19 Maintenance
5

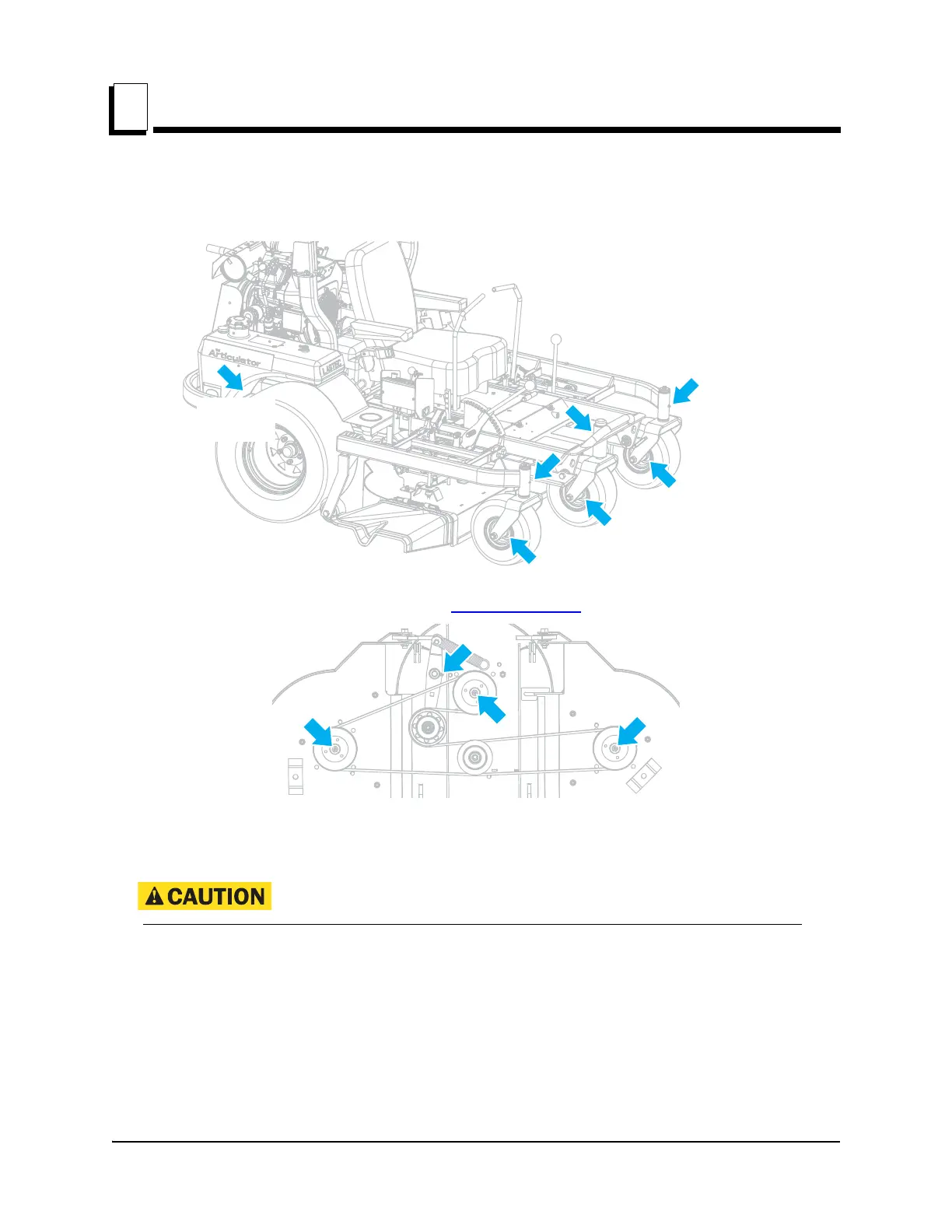

5.13 Lubrication Points and Deck Belt Routing
Lubricate every 8 hours of operation.
CM0036-1
FIG. 5-1
Deck Drive
Belt Idler
(Lower Rear)
Lubricate every 8 hours of operation. See Section 5.13 for the deck belt part number.
CM0025-3
FIG. 5-2
5.14 Urethane Bushings
Bolts holding urethane bushings must remain tight.
Urethane bushings are used throughout all Articulators in various applications, including
(but not limited to) articulating deck hinges and rocker arms. In all cases, the bushings
ride on spacers that fit between the rotating pieces of framework, held tightly in place with
bolts. It is important that the spacers remain tight between the framework at all
