Integral T process thermostats
21/01/2019 / YAWE 0026 Starting up 67

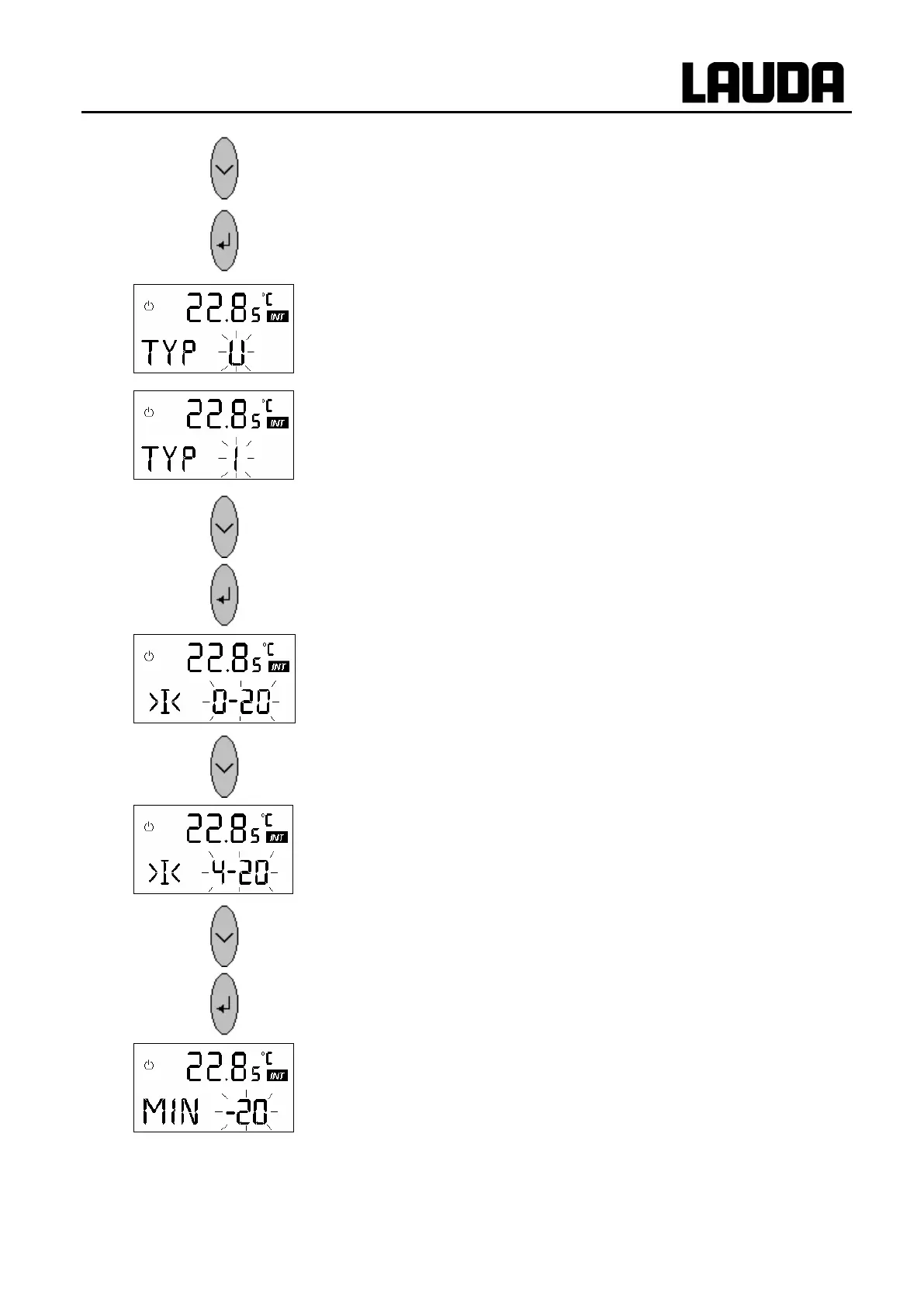

 Type = output signal type; Voltage 0 – 10 V (U) or
Current 0 – 20 mA (4 – 20 mA) (I).
 If a current range has been selected there is also a
request whether range 0 – 20 mA or range 4 – 20 mA is
required.
 MIN = minimum temperature in °C (or pressure or
electrical output).
For determining the temperature range to which the
current or voltage range has to be assigned.
