Integral T process thermostats
68 Starting up YAWE 0026 / 21/01/2019

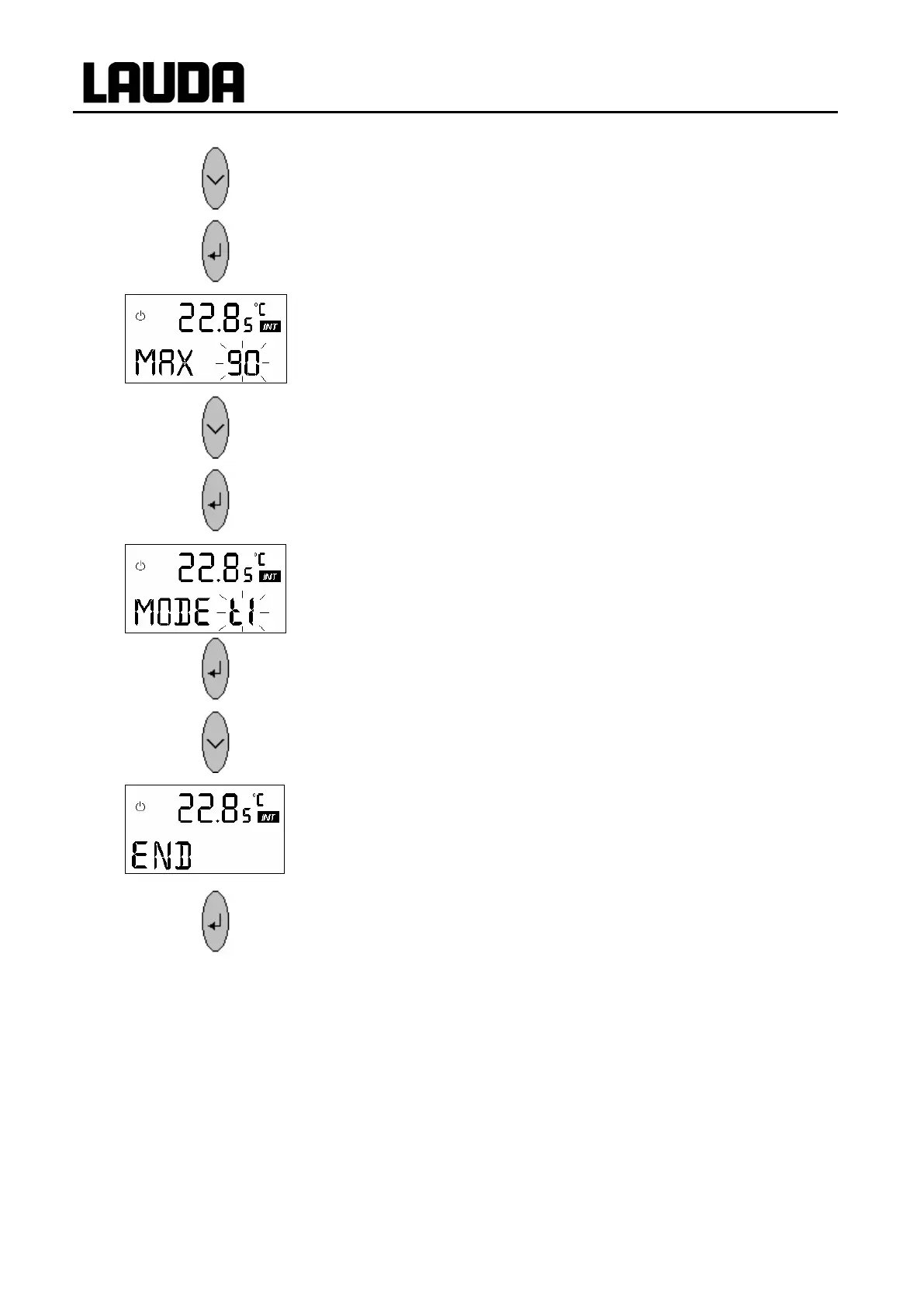

 MAX = maximum temperature in °C (pressure or
electrical output).
For determining the temperature range to which the
current or voltage range has to be assigned.
 MODE = operating mode; assignment of signal source to
output.
t I = outflow temperature (Internal)
t E = external actual temperature
T S = setpoint
P = pressure (at pump outlet) (0 - 7 bar)
Y = electrical output (± 100 %).
 Back to A01 or A02 or A03.

On changing from temperature range to pressure or electrical output or vice versa,
recheck MIN, MAX!
