Lauda Integral T 4600 - Calibrating the inputs; Calibrating the outputs

Integral T process thermostats
21/01/2019 / YAWE 0026 Starting up 71

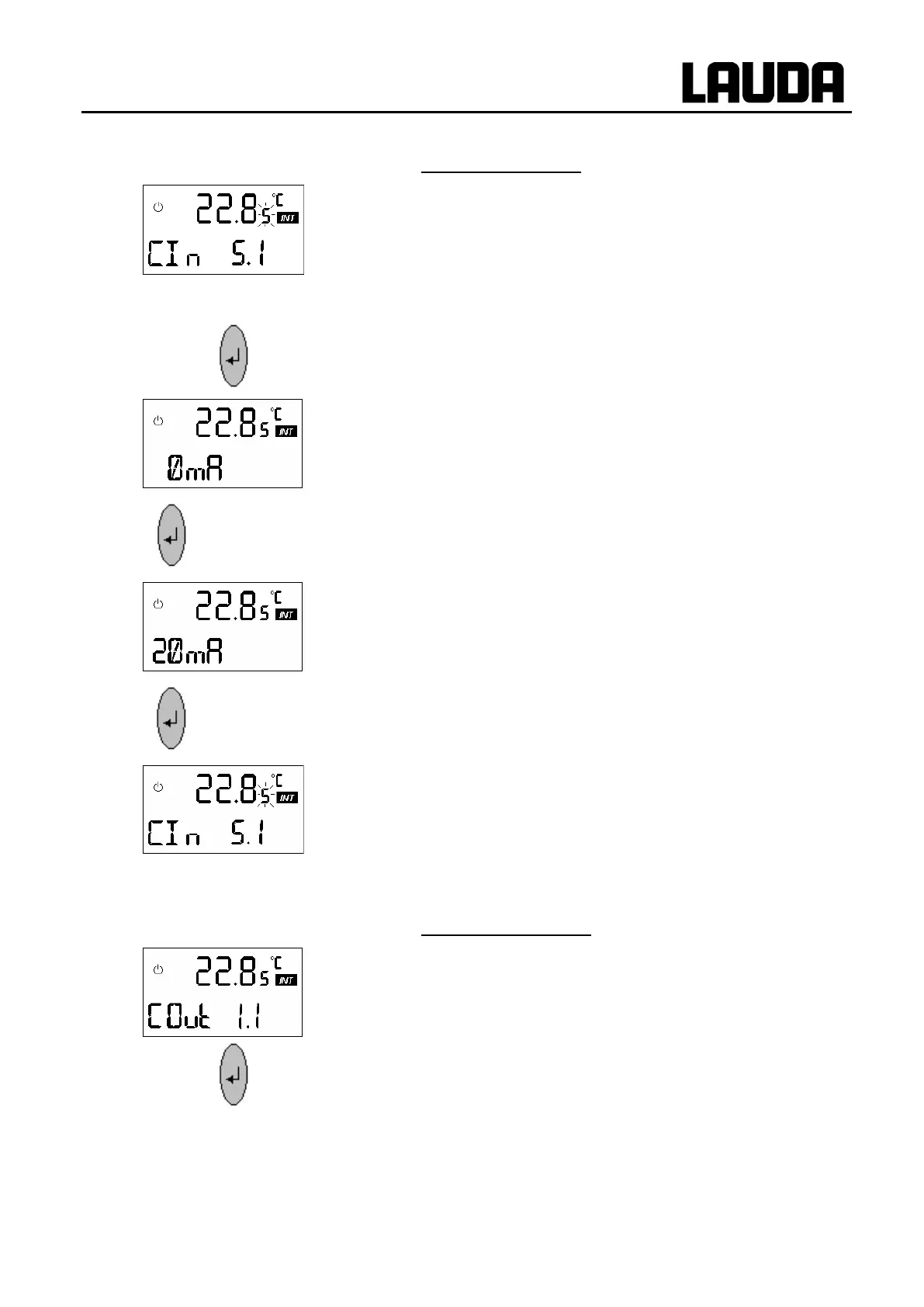

Calibrating the inputs
 Apply the voltage or current for the appropriate range
limits (0 V, 10 V, 0 mA, 20 mA). Deviations up to
approx. 10 % of range can be corrected.
 The calibration values remain stored!
 Factory calibration is performed at 0 V, 10 V, 0 mA and
20 mA.
 Feed in current 0 mA at pins 4 (+) and 3 (-) on
connector 66S.
after approx. 2 s
 Feed in current 20 mA.
after approx. 2 s
 Calibration of setpoint input current is completed.
 Setpoint input voltage and external temperature input
current and voltage are calibrated similarly.
Calibrating the outputs
 Connect up the device to be supplied or an accurate
multimetre with a current range 0 - 20 mA or a voltage
range 0 - 10 V.
 Calibrate the outputs with the required termination
resistance.
