Integral T process thermostats
70 Starting up YAWE 0026 / 21/01/2019

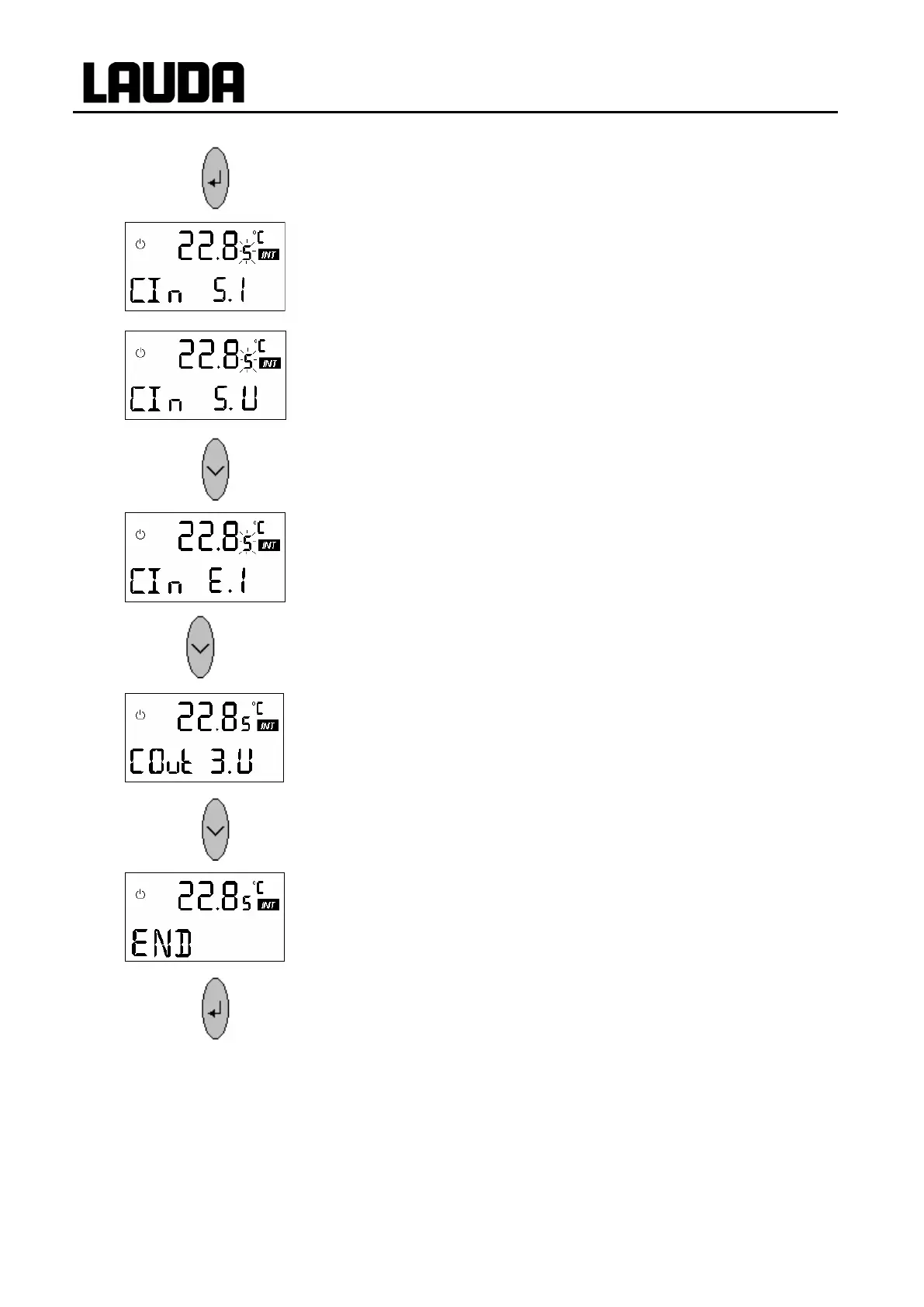

 From CAL . . scroll to
 C In = calibrate (C);
Input (In); S.I = setpoint; current signal (I).
 S.U = setpoint; voltage signal (U).
 E E.I = external temperature input (E); current signal
(I).
etc.
 Continue see ill. start 7.6.5.3.
 Out = analogue output 3 (Out 3); voltage signal.
 Scrolls to CAL in “Analogue interface” menu.
