TLT235、TLT240 Economical Two-post User’s Manual
21
10.2.4.2 Install the floor plate
Position the offside column at the designated chalk line
location, carefully making the base align with the chalk line
layout. Insert the floor plate into the U gaps of the base
seat of two columns.
Note:
Since the offside column is not fixed to the ground,
you must operate carefully to avoid the falling of
the column.
The wire protective pipe on the floor plate must be
in same direction with the pipe on the column near
the base. And the floor plate would be placed in
front position.

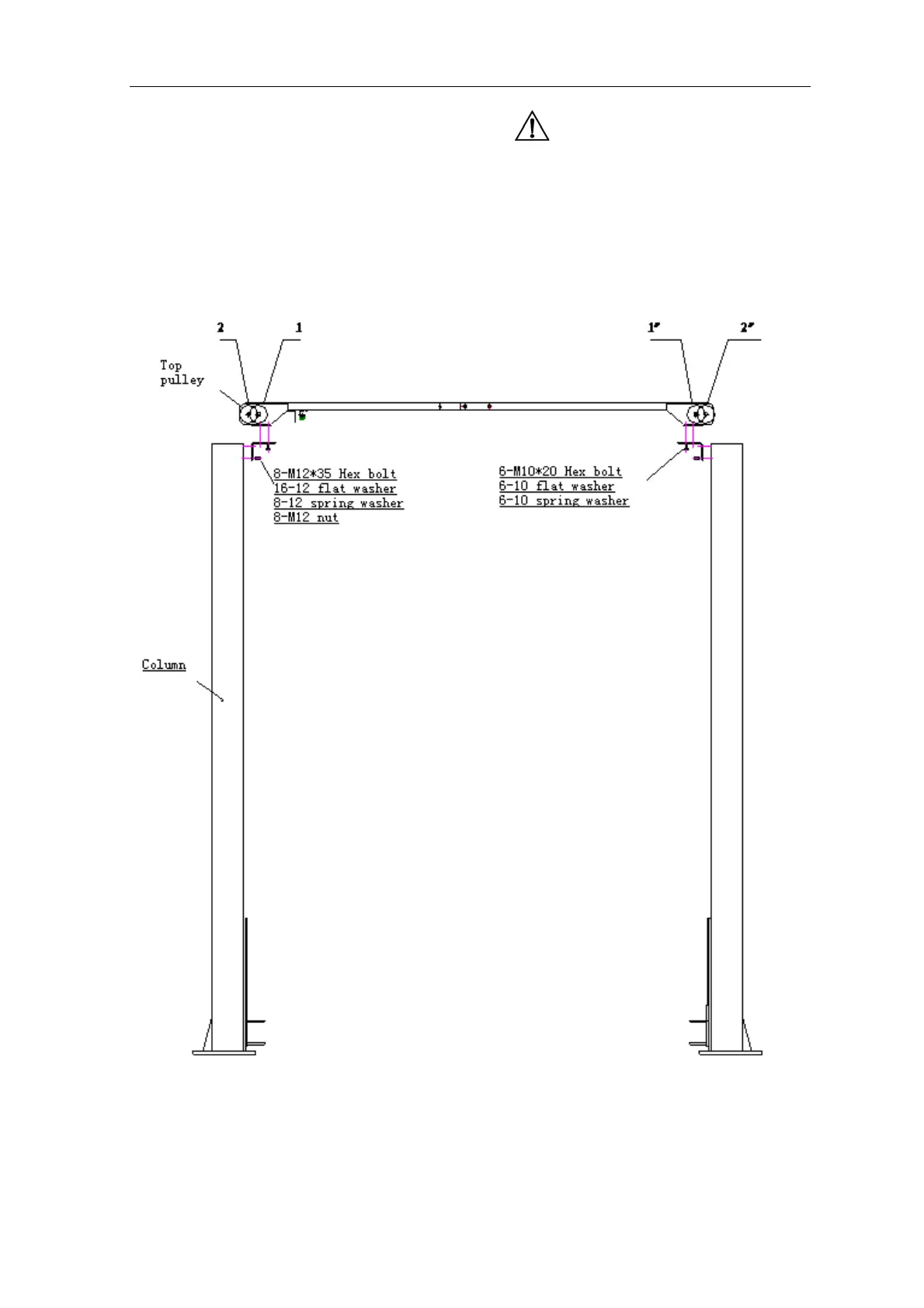

Fig. 12
