TLT235、TLT240 Economical Two-post User’s Manual
25

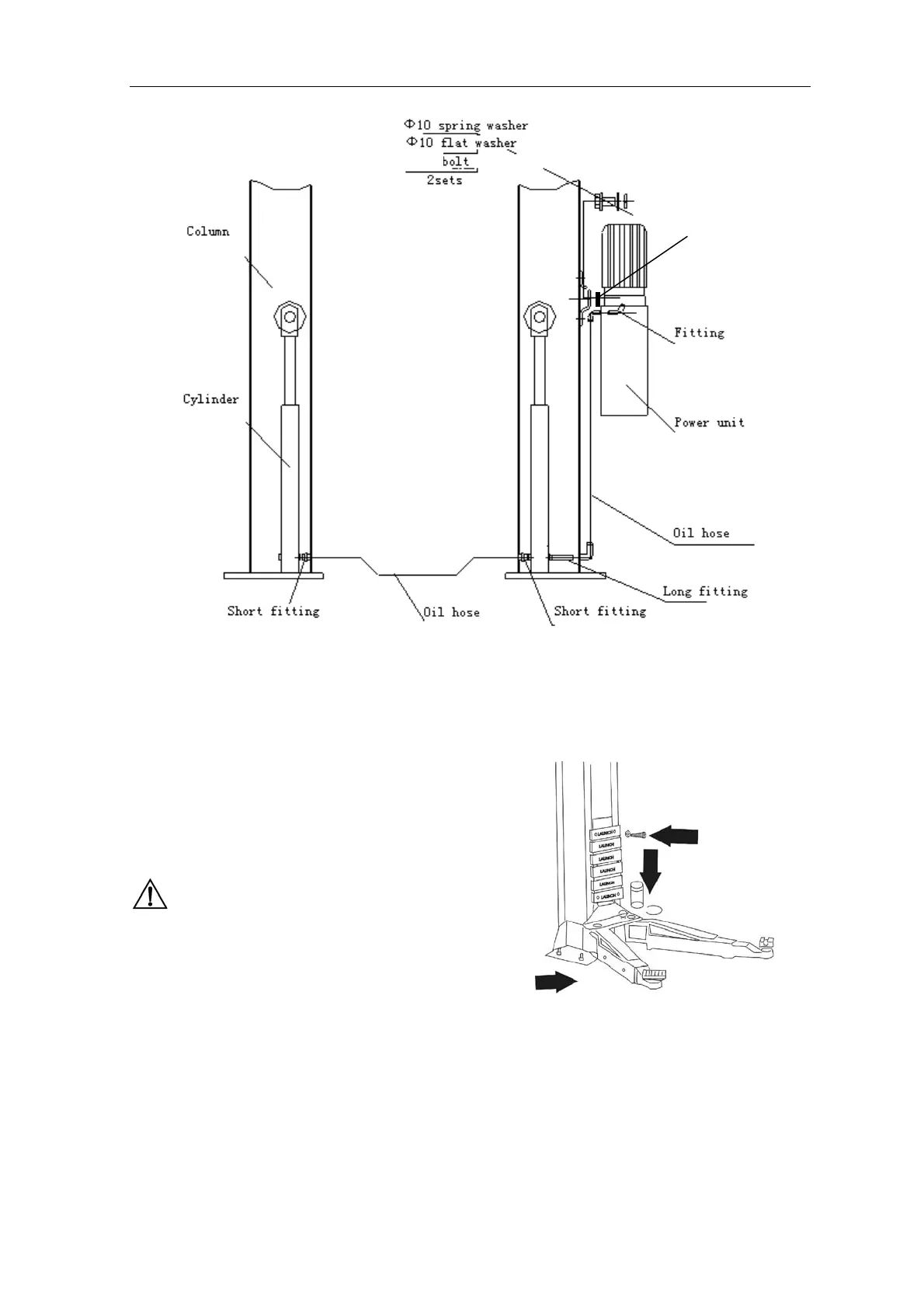

Fig. 14b
10.2.8 Install the swing arm
Install the swing arm as shown In Fig.15
Note:
Before use, check if the positioning gear mechanism at the
end of arm fits, adjust the screws of fixed semi-gear for its
fitness.
During the installation, lubricate the moving parts of swing
arm and carriage if accessory, so that the swing arm can
move freely.
Fig 15
Rubber cushion
M10×25
