LAUNCH X-431 Euro Mini User Manual
24
On-screen Buttons:
Select Page:
Tap it to select all items of the current page.
Select All:
Tap it to select all items. To select certain data stream item, just
check the box before the item name.
Unselect:
Tap it to deselect all data stream items.
OK:
Tap it to confirm and jump to the next step.

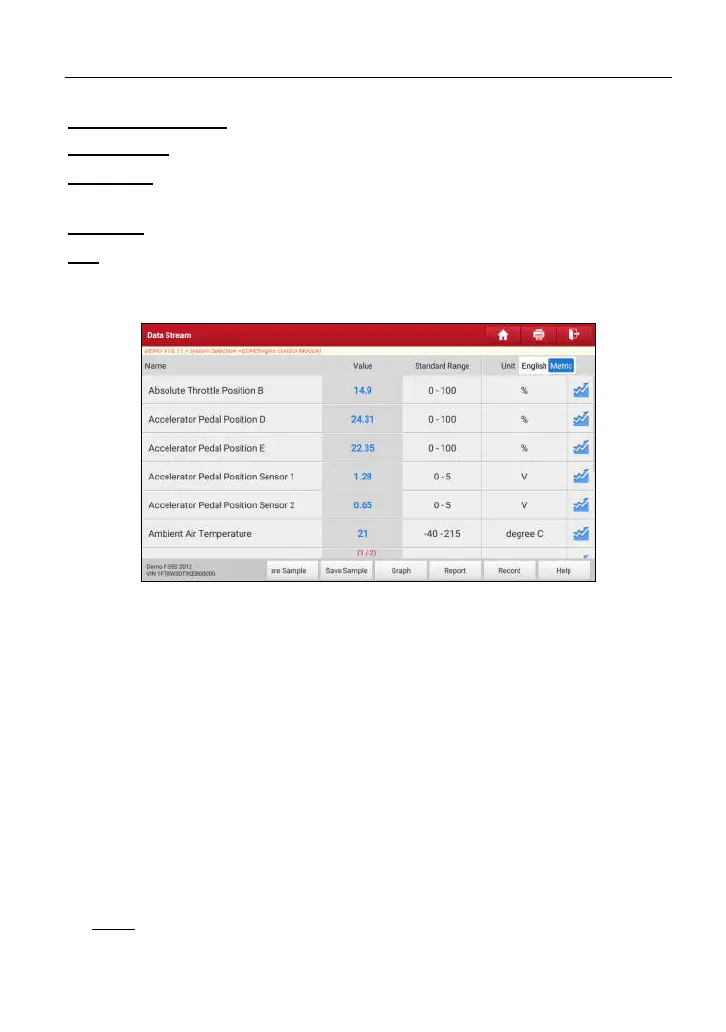

After selecting the desired items, tap “OK” to enter the data stream reading
page.
Fig. 5-11
Notes:
1. If the value of the data stream item is out of the range of the standard (reference)
value, the whole line will display in red. If it complies with the reference value, it
displays in blue (normal mode).
2. The indicator 1/X shown on the bottom of the screen stands for the current
page/total page number. Swipe the screen from the right/left to advance/return to the
next/previous page.
3. The real time (Live Data) vehicle operating information (values/status) that the
on-board computer supplies to the tool for each sensor, actuator, switch, etc. is
called Parameter Identification Data (PID).
There are 3 types of display modes available for data viewing, allowing you to
view various types of parameters in the most suitable way.
Value – this is the default mode which displays the parameters in texts and
shows in list format.
