Launch X-631 Plus User Manual

LAUNCH X-631/ X-631+ Wheel Aligner Introduction
1-4
Specifications
Item Range
Front total toe-in f40嘙
Front toe-in f20嘙
Front camber f8.0嘙
Caster f20嘙
Kingpin inclination f20嘙
Rear total toe-in f40嘙
Rear toe-in f20嘙
Rear camber f8.0嘙
Thrust angle f5.0嘙
Notes:
1. The above measurement ranges can be confirmed only when the user follows the specified operation
procedures.
Requirements on Surroundings
Item Specification
Ambient temperature -10~+50ć
Relative humidity İ85%
Exterior magnetic
field strength
İ400A/m
Lifter gradient İ1e
Working Principle

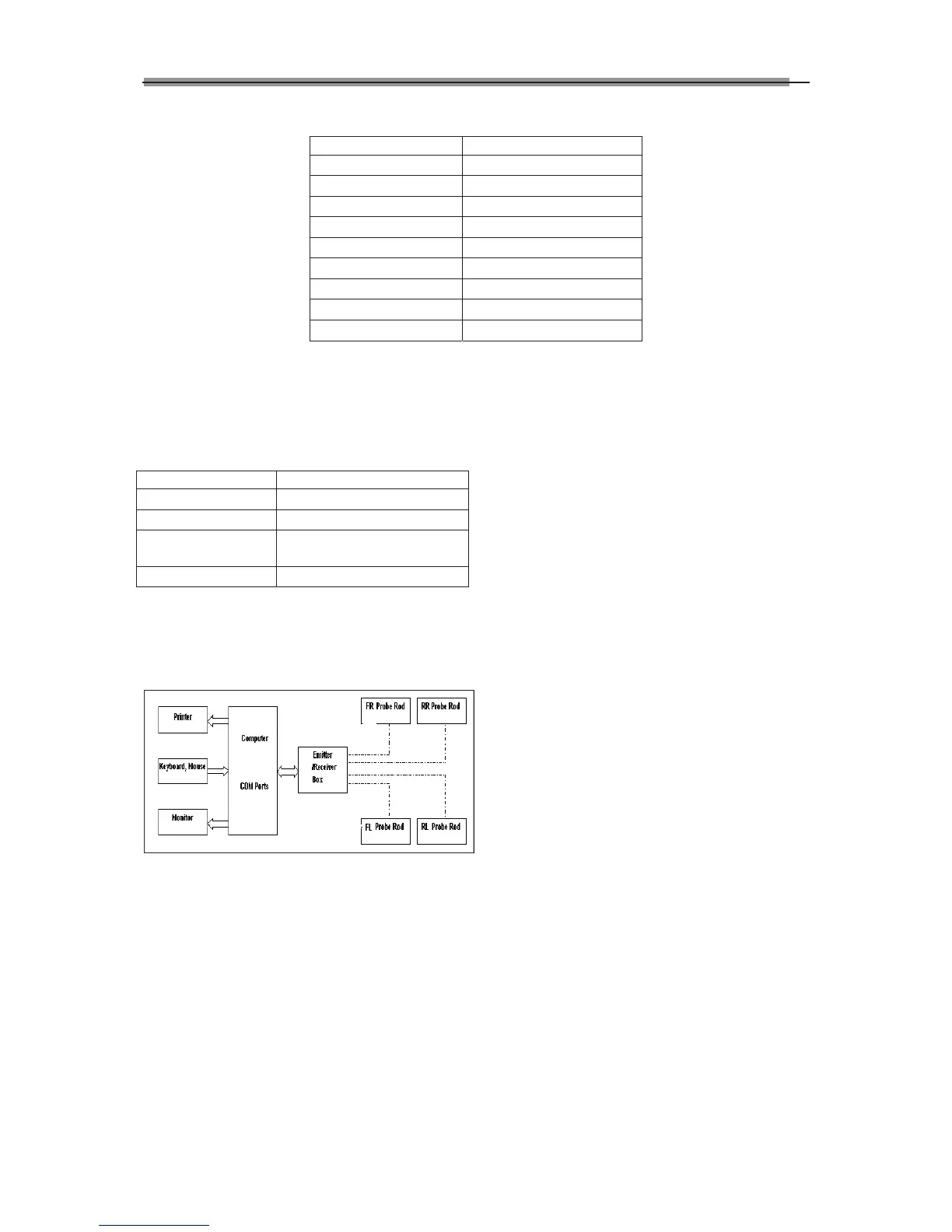

The working framework of X-631and X-631+ Wheel
Aligner is as shown in Fig.1.8.
Fig.1.8

Launch X-631 Plus Specifications

General

Brand	Launch
Model	X-631 Plus
Category	Industrial Electrical
Language	English
