LAUNCH X-631/X-631+ Wheel Aligner Operation Instructions
4-23
[Client list]: To list the all clients who have been
serviced by the alignment test.
[Record list]: This list can display the alignment test
records (for one time or many times) of the client
selected from [Client list].
[Print]: To print the alignment data of the vehicle
under test with form or figure format (Please refer to
[System Management] – [Report Setting] for the
format setting of report form).
3D Interface / 2D Interface

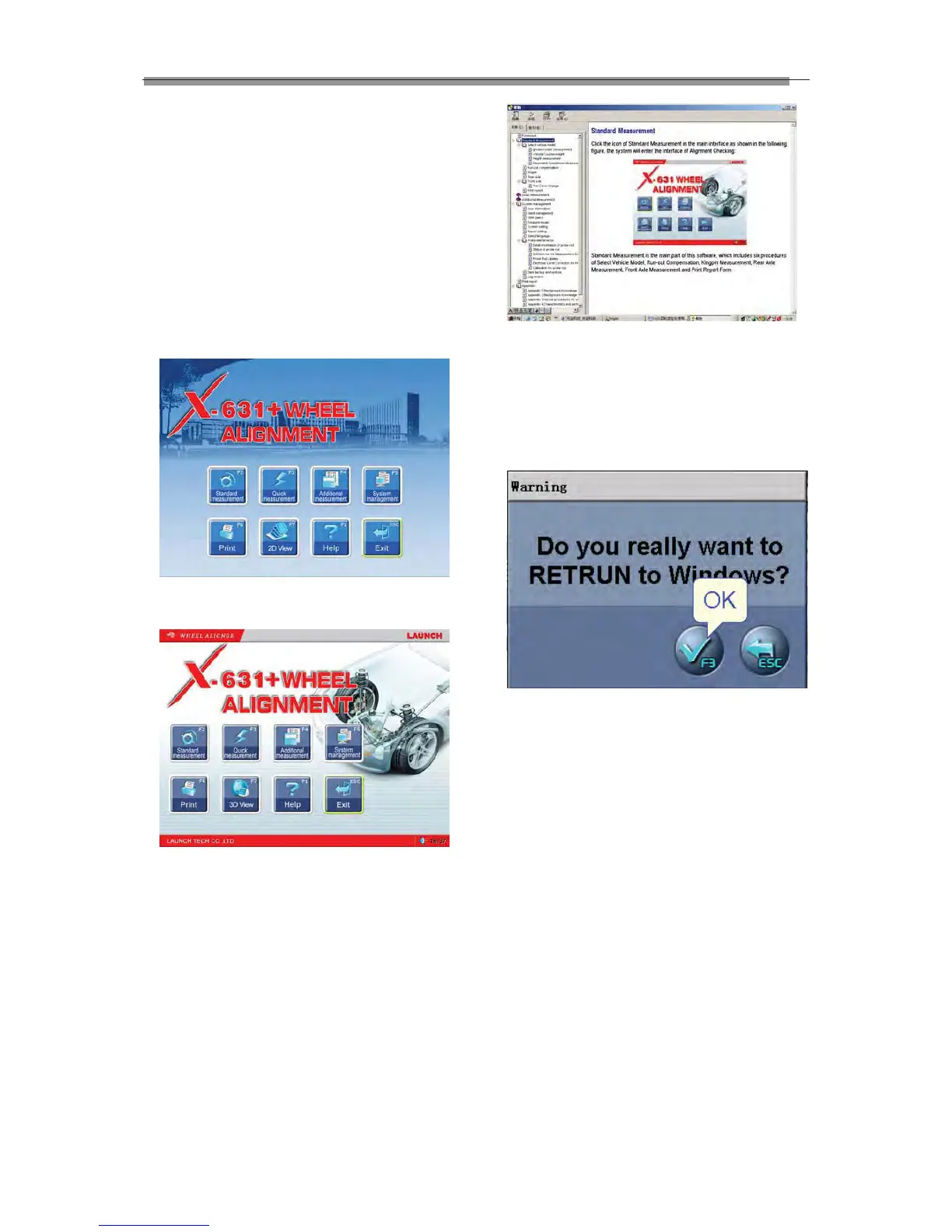

3D Interface is as shown in Fig.4.88.
Fig.4.88
2D Interface is as shown in Fig.4.89.
Fig.4.89
Help
HELP system provides more detailed operating
descriptions. The interface is as shown in Fig.4.90.
Fig.4.90
Exit
EXIT system has two kinds of prompts: Exit from the
system and return to WINDOWS operating interface
or Exit and shutdown (Please refer to [System
Management] – [System Setting] for the detailed
settings). The interface is as shown in Fig.4.91.
Fig.4.91
New Functions of X-631+ Wheel Aligner
Added Functions for X-631+ Wheel Aligner
No PC Mode and the corresponding functions are
added. That is to say, without the help of computer,
you can perform the corresponding operations on the
probe rods in order to realize the basic functions of
wheel alignment. Now, you can get the data of
camber and toe-in under this No PC Mode.
The computer (main unit) is of the master control
equipment of the former wheel aligner, and the
calculation and display, etc. are all performed on the
main unit.
Working mode with computer: In this mode, you can
perform the wheel alignment operation with the
control of the computer. X-631 wheel aligner uses this
working mode.
No computer working mode (No PC Mode): In this
mode, you can use the probe rods to perform the
wheel alignment operation without the help of the
computer. X-631+ wheel aligner is added with this
function.
X-631+ wheel aligner No PC Mode has 4 kinds as
follows:
To Next Page
