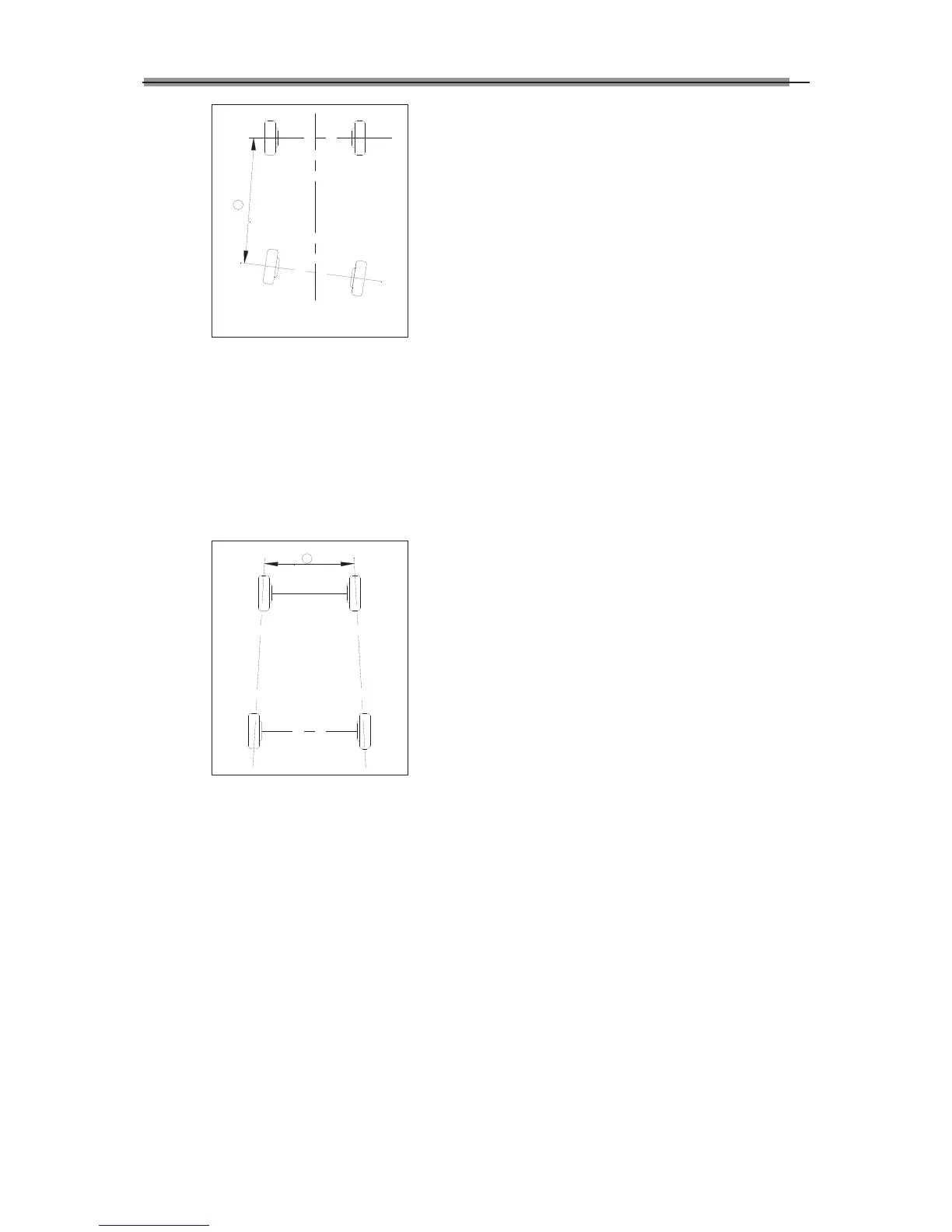

Track Width Difference
Track width difference is defined as the angle
between the joint line of the ground-contact point of
left wheels and that of the right wheels. It is positive
when distance between the centre of the rear wheels
is large than that of front wheels; and negative
otherwise. If the wheelbases are available from the
vehicle specifications, then the tread difference can
be also expressed by angle. See Fig. 1.7.

Fig. 1.7
Functions
z Complete test: The X-631/X-631+ Wheel Aligner
can be used to measure the most wheel
alignment parameters, such as front wheel
toe-in, front wheel camber, caster, Kingpin
inclination, rear wheel toe-in, rear wheel camber,
thrust angle, wheelbase difference, tread
difference, axle offset, front wheel setback and
rear wheel setback, etc.
z Complete databank: wheel alignment data of
over 10,000 vehicle models is stored in the
system. User can also add new data to the
databank.
z Kingpin and camber adjustment real time
display function.
z HELP information for vehicle adjustment.
z Language operating prompt function.
z Emergency power supply and in-time charging
function.
z The probe rods provide LCD display function.
z Electronic level function.
z Black box self-diagnosis function.
z Front and rear probe rods interchangeable.
z Special test for Mercedes-Benz and BMW
vehicles.
Features
z Infrared 8-beam and 16-sensor loop
measurement, accurate and stable.
z Newly developed CCD signal processing
technology, nearly uninfluenced by the strong
sunlight.
z Complete system upgrading function.
z Unique voice prompt function and visualized
animation, very easy to understand.
z Trustworthy operating system to give more
convenient and safe operations.
z Keyboard quick switch operation.
z Both special version and common version are
provided for user to select.
z Both normal version and demonstration version
are provided to make user’s training more
convenient and quick.
z Large capacity (4000mAh) Lithium battery with
low power consumption and dormancy mode of
design.
z Camber, toe-in, battery electricity quantity,
charging status and electronic level, etc. can be
real-time displayed by LCD.
z In-block type of casting Aluminum alloy probe
rods can strongly guarantee the stability and the
test precision of the product.
