LAUNCH X-631/X-631+ Wheel Aligner Structures

2-4

Brake Pedal Depressor

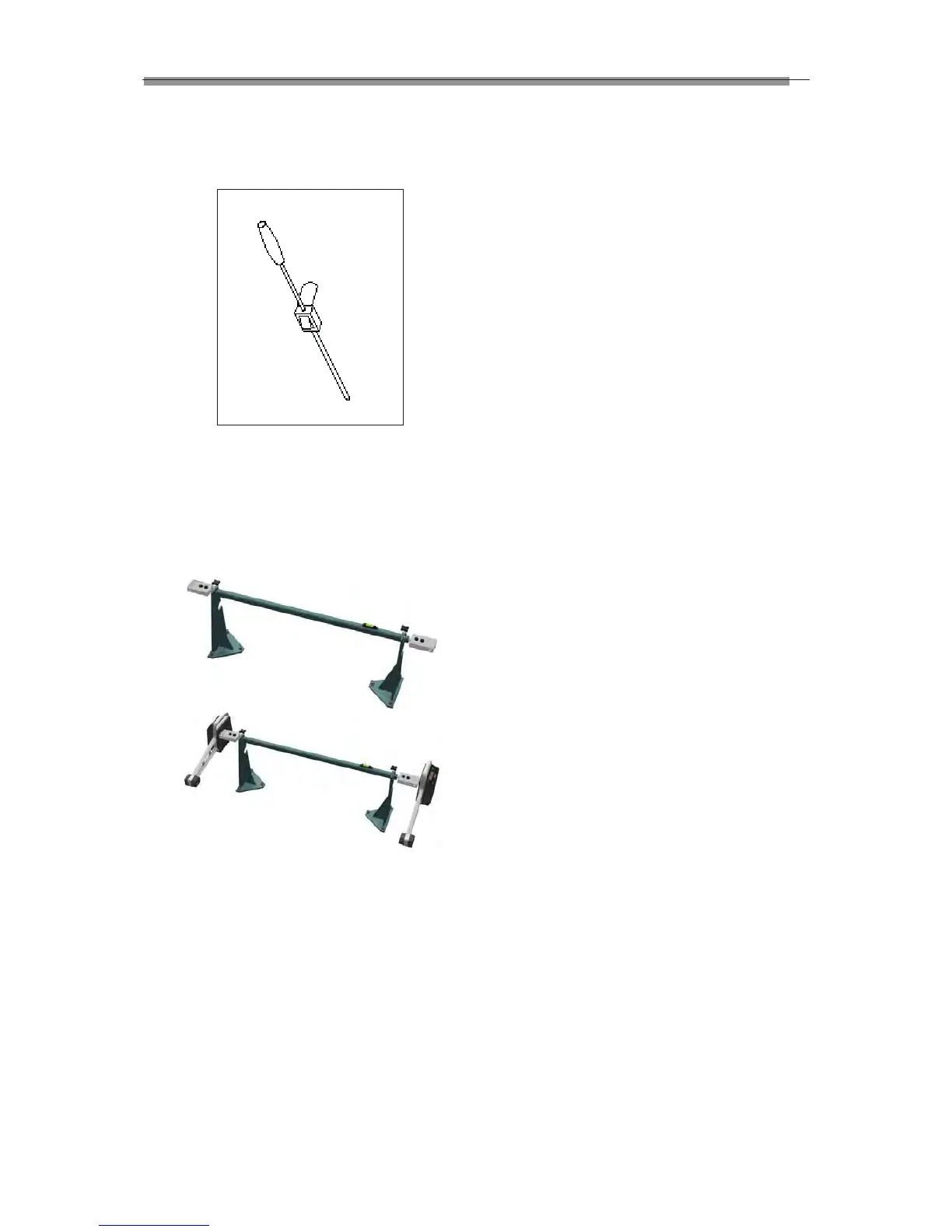

X-631/X-631+ has a brake pedal depressor is as

shown in Fig.2.19. It is used to hold the brake pedal

down.

Fig.2.19 Brake pedal depressor

Calibrating Frame and its

Converter Connector (Optional)

They are mainly used to calibrate the probe rod

system of X-631/X-631+ wheel aligner.

Fig.2.20 Calibrating frame and its converter connector
