LAUNCH X-631/X-631+ Wheel Aligner Operation Instructions
4-18
Fig.4.61

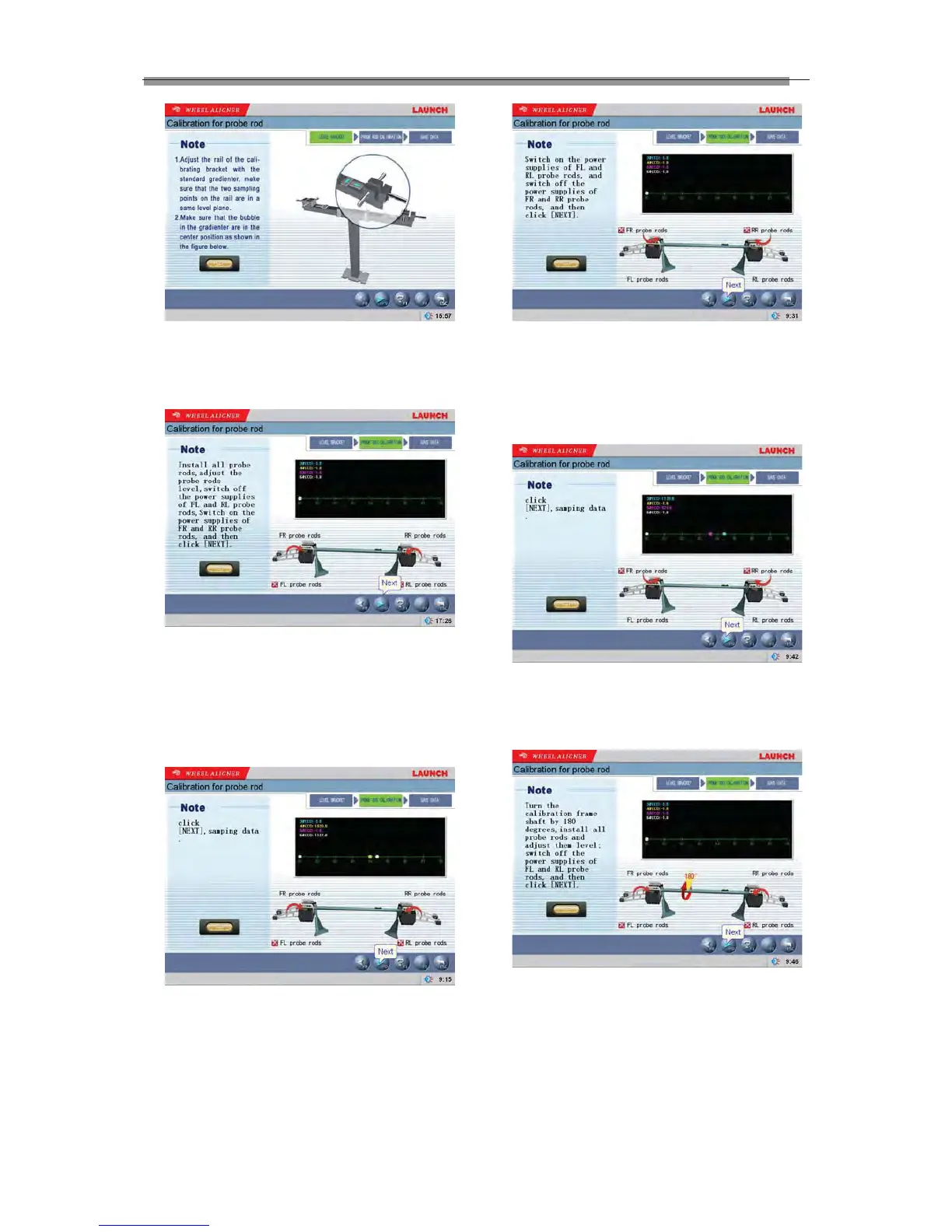

According to the prompts on the screen, adjust the
calibration bracket level, and then click [NEXT] button.
The interface is as shown in Fig.4.62.
Fig.4.62
According to the prompts on the screen, install 4
probe rods and adjust them level, switch off the
power supplies FL and RL probe rods, switch on the
power supplies of FR and RR probe rods, and then
click [NEXT] button. The interface is as shown in
Fig.4.63.
Fig.4.63
According to the prompts on the screen, please click
[NEXT] button to sample data. The interface is as
shown in Fig.4.64.
Fig.4.64
According to the prompts on the screen, switch on the
power supplies of FL and RL probe rods, and switch
off the power supplies of FR and RR probe rods, and
then click [NEXT] button. The interface is as shown in
Fig.4.65.
Fig.4.65
According to the prompts on the screen, please click
[NEXT] button to sample data. The interface is as
shown in Fig.4.66.
4.66
According to the prompts on the screen, turn the
calibration frame shaft by 180 degrees, install all
probe rods and adjust them level; switch off the
power supplies of FL and RL probe rods, and then
click [NEXT]. The interface is as shown in Fig.4.67.
