Launch X-631 User Manual

Launch X-631 Wheel Aligner Maintenance Manual Testing for Cabinet Assembly
2-10
Item11: RF Emitter/Receiver Box Inspection

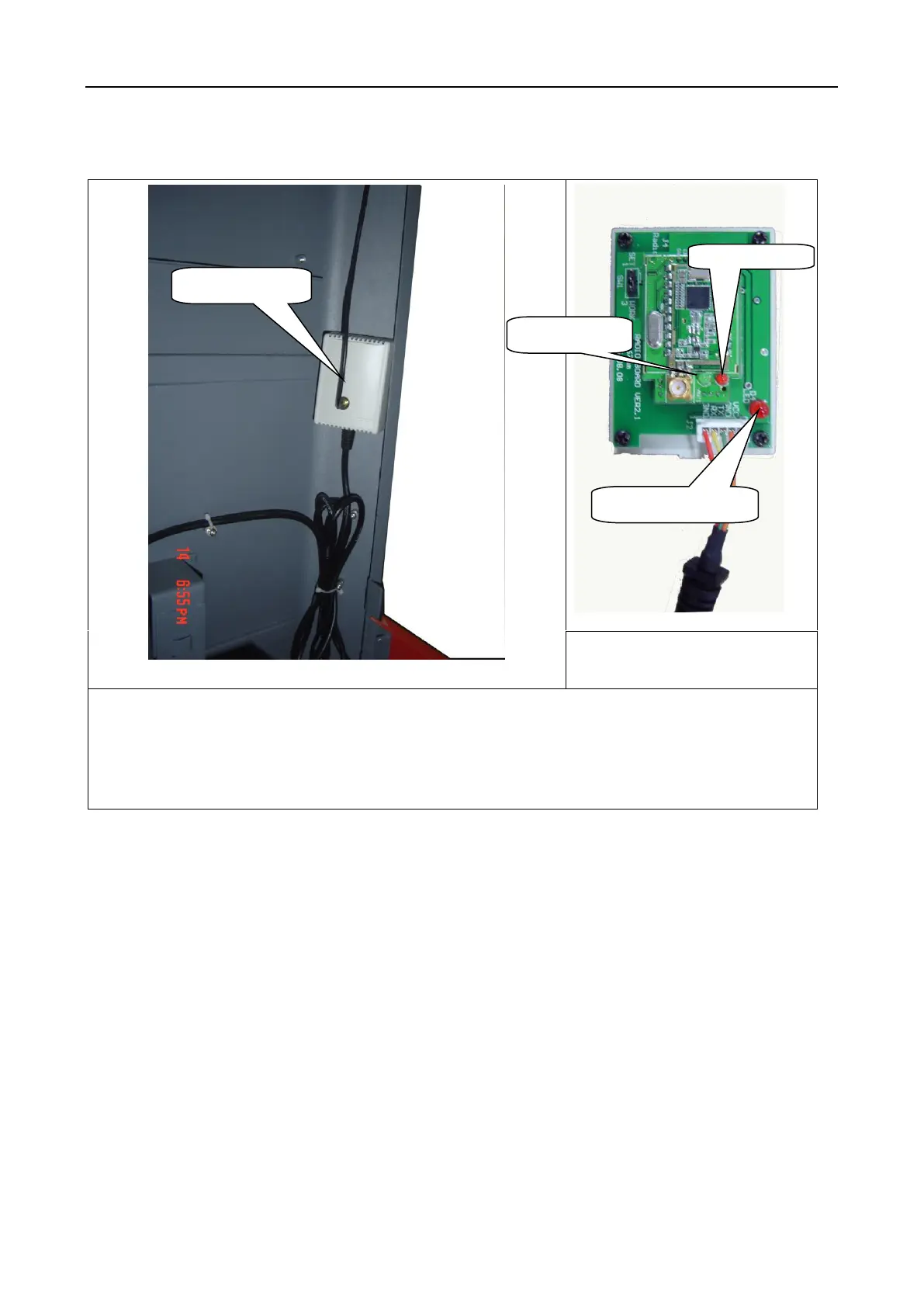

Cover-opened picture
Note: 1. Check RF box and connecting cable for damage;
2. Open the cover, and then check the antenna base and connection base for oxidation and rust;
3. After plugging the USB plug, the power supply indicator is lit;
4. Receiver indicator (Green) and emitter indicator (Red) will flash continuously during communication.
Power supply indicator
Receiver indicator
Emitter indicator
Antenna down-lead
