Launch X-631 Wheel Aligner Maintenance Manual Maintenance and Testing for Measurement Probe Rod

3-5

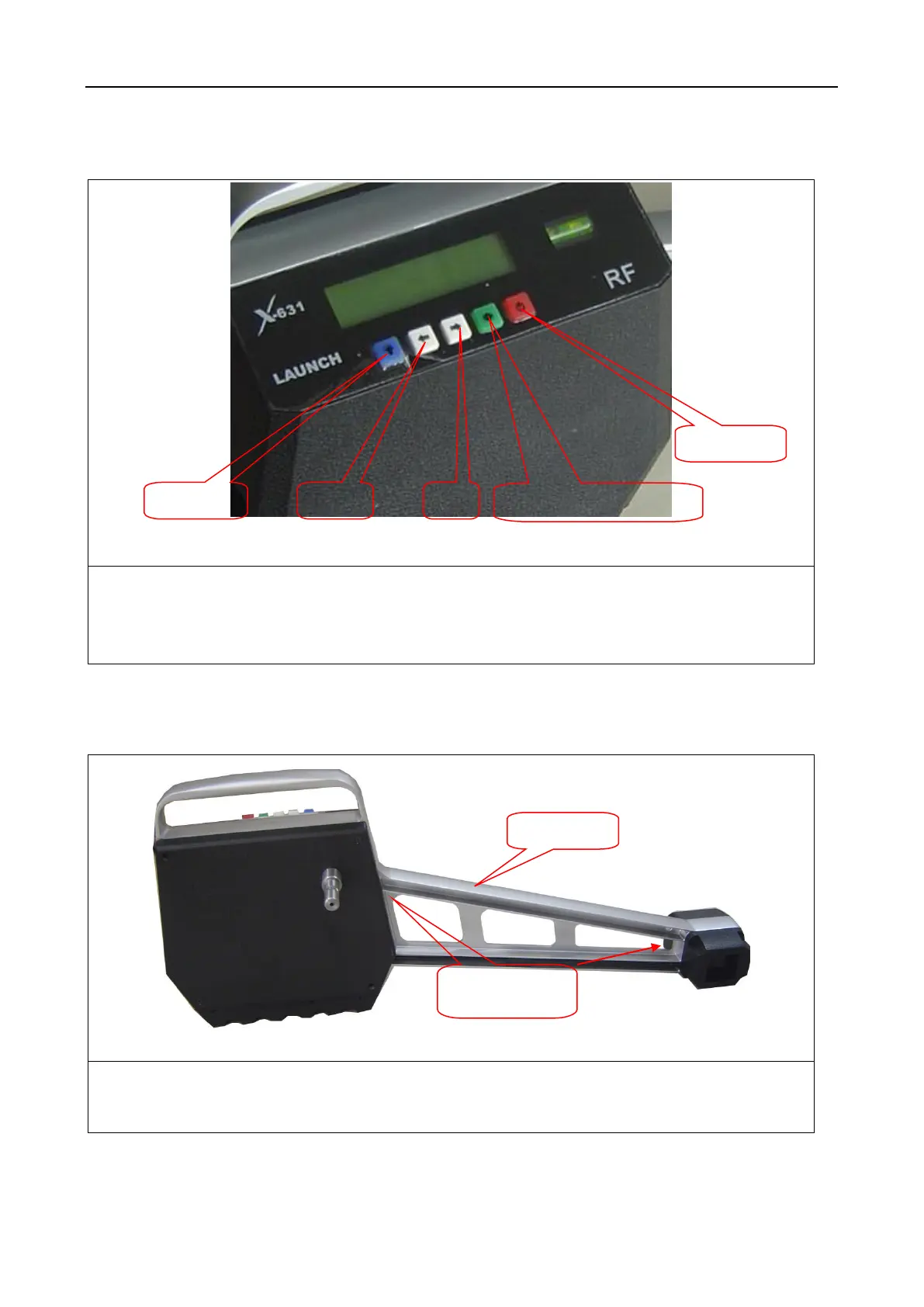

Item19: Acrylic Panel and key-press Inspection

Note: 1. Check the surface of Acrylic panel and key-press, and then test each key-press for good hand feel;

2. Check if the function of each key is normal or not (Up and Down key can be tested by cooperating with

computer measurement program).

Item20: Aluminum Frame Inspection

Note: 1. Check if probe rod aluminum bracket arm is distorted and damaged or not;

2. Check if there is crack at the transition corners of aluminum bracket arm.

Backlight lamp

Run-out compensation N/A

Power supply

Probe rod arm

Check if there are

cracks or not
