Launch X-631 Wheel Aligner Maintenance Manual Maintenance and Testing for Some Components

4-3

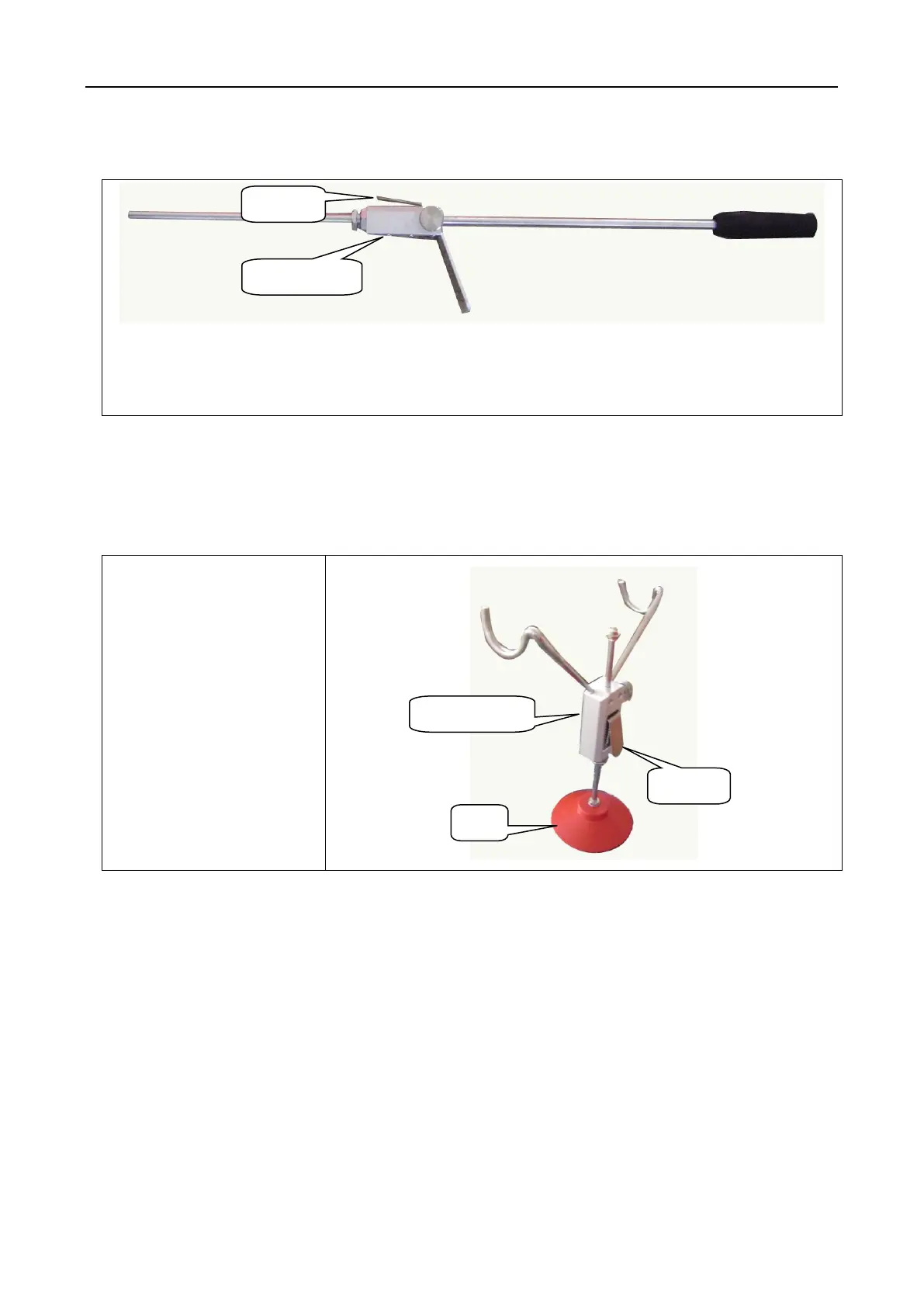

Item24: Brake Pedal Depressor Inspection

Note： 1. Check the brake pedal depressor for distortion and damage;

2. Check if clip plate spring can move normally, and check if the moving assembly can slide along the leader

freely.

Item25: Steering Wheel Holder Inspection

Note:

1. Check the fixing bracket for

distortion, and check the base

for break;

2. Check if the clip plate can be

pressed or not, and check if

the moving part can move or

not.

Moving assembly

Clip plate

Moving assembly

Clip plate

Base
