Launch X-631 User Manual

Launch X-631 Wheel Aligner Maintenance Manual Testing for Cabinet Assembly
2-4
Item5: Charging Socket Inspection
Front side — Check if 6pin flange plug plugs and pulls flexibly
Back side — Check if the cable is broken

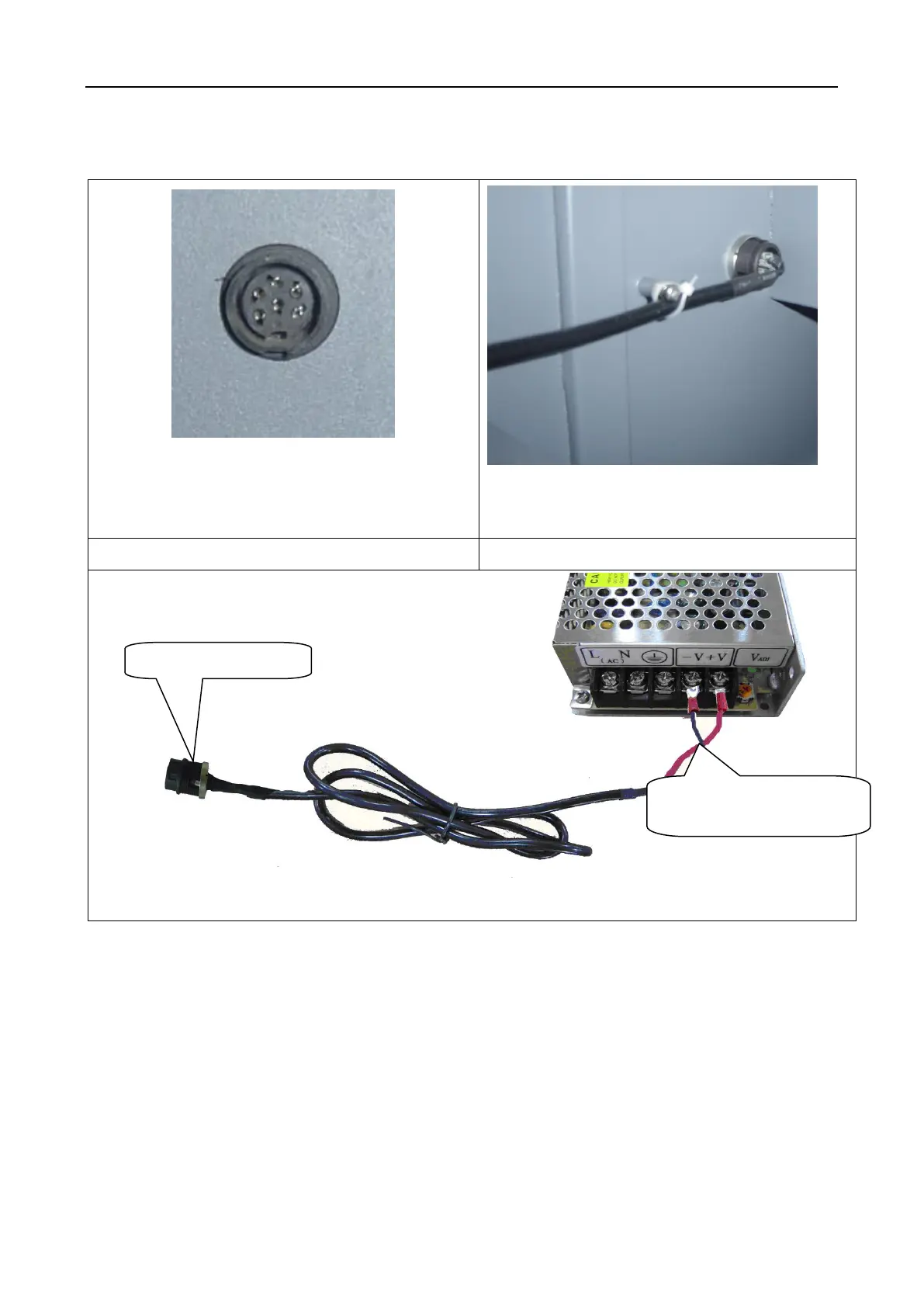

Charging socket connection picture
6pin flange socket female
Red for Positive and Black for
Negative; Output Voltage: 9.3V
