Launch X-631 - Probe Rod Calibration; Structure of calibrating frame

Launch X-631 Wheel Aligner Maintenance Manual Probe Rod Calibration
5-1
Probe Rod Calibration
The probe rod calibration procedures are as follows:
 After starting the computer, the system will enter the Probe Rod Maintenance interface of X-631 test program.
 Structure of calibrating frame

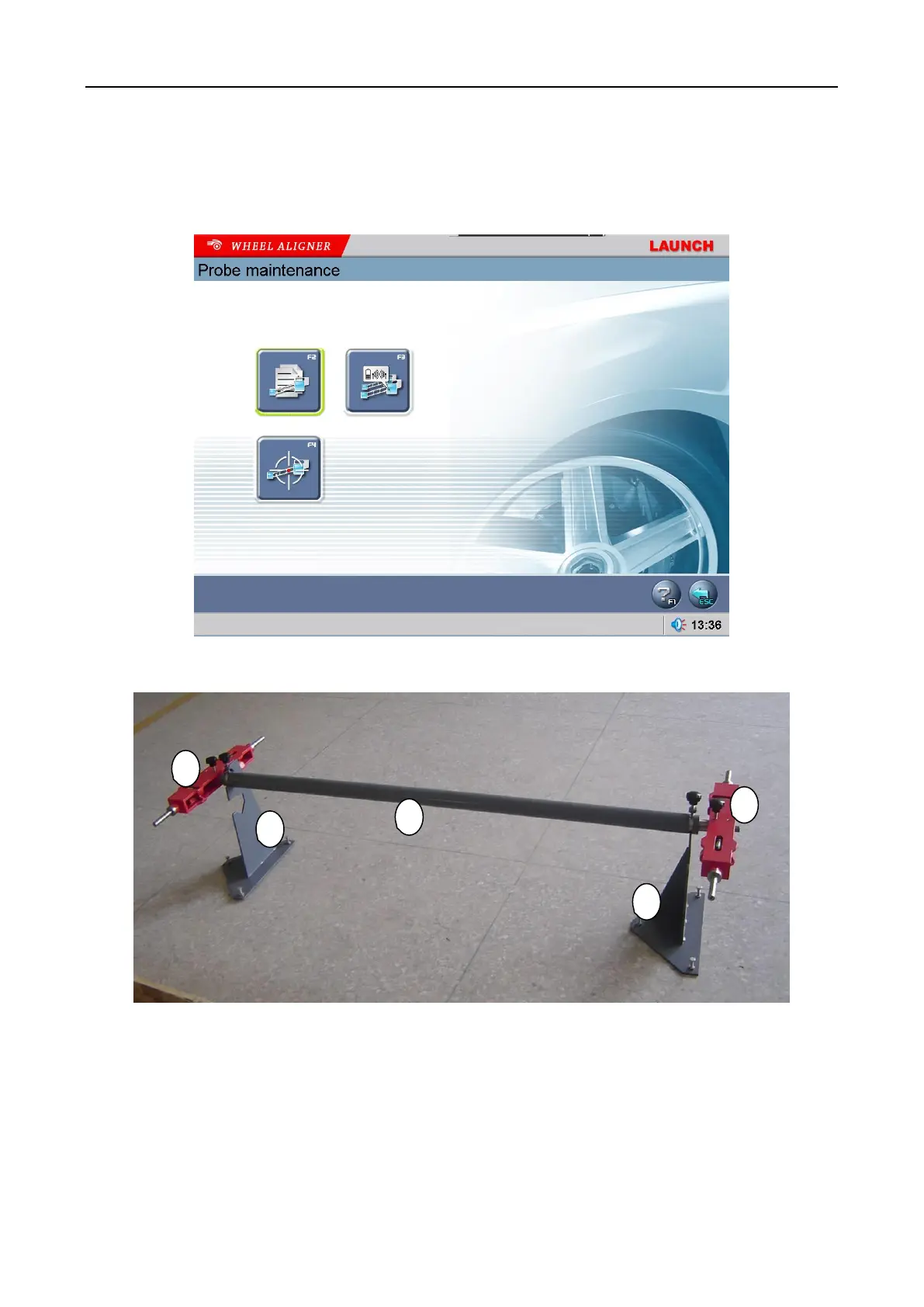

1. Left and right brackets; 2. Long lateral axle; 3. Left and right vertical axles
 Probe rod calibration procedures
a) After inputting the password, the system will enter the following interface:
