Launch X-631 - Testing for Wireless Communication Function

Launch X-631 Wheel Aligner Maintenance Manual Maintenance and Testing for Measurement Probe Rod
3-6
Item21: Testing for Wireless Communication Function

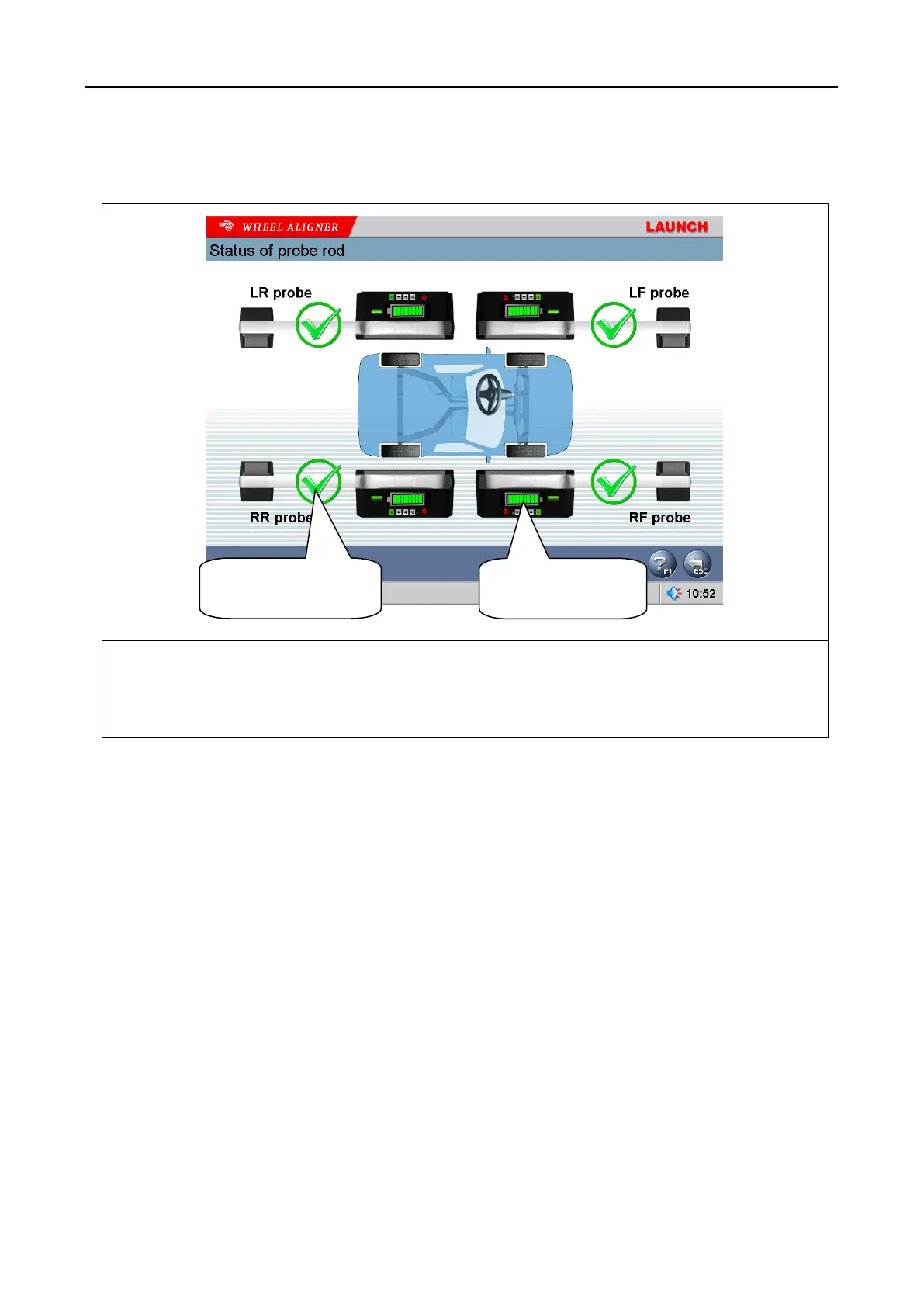

Note: Switch on the computer host, the Status of Probe Rod interface will be displayed as shown in the above figure;
switch on the probe rods, and then put them on the place where is 15m away from the main unit; observe if the
communication is normal and if there is Red Cross on the interface (Red cross indicates abnormal
communication, and green tick indicates normal communication).
Probe rod communication
status
Probe rod electricity
quantity status
