Page 24PROTECTOR® IV Top of Rail Installation, Operation & Maintenance Manual

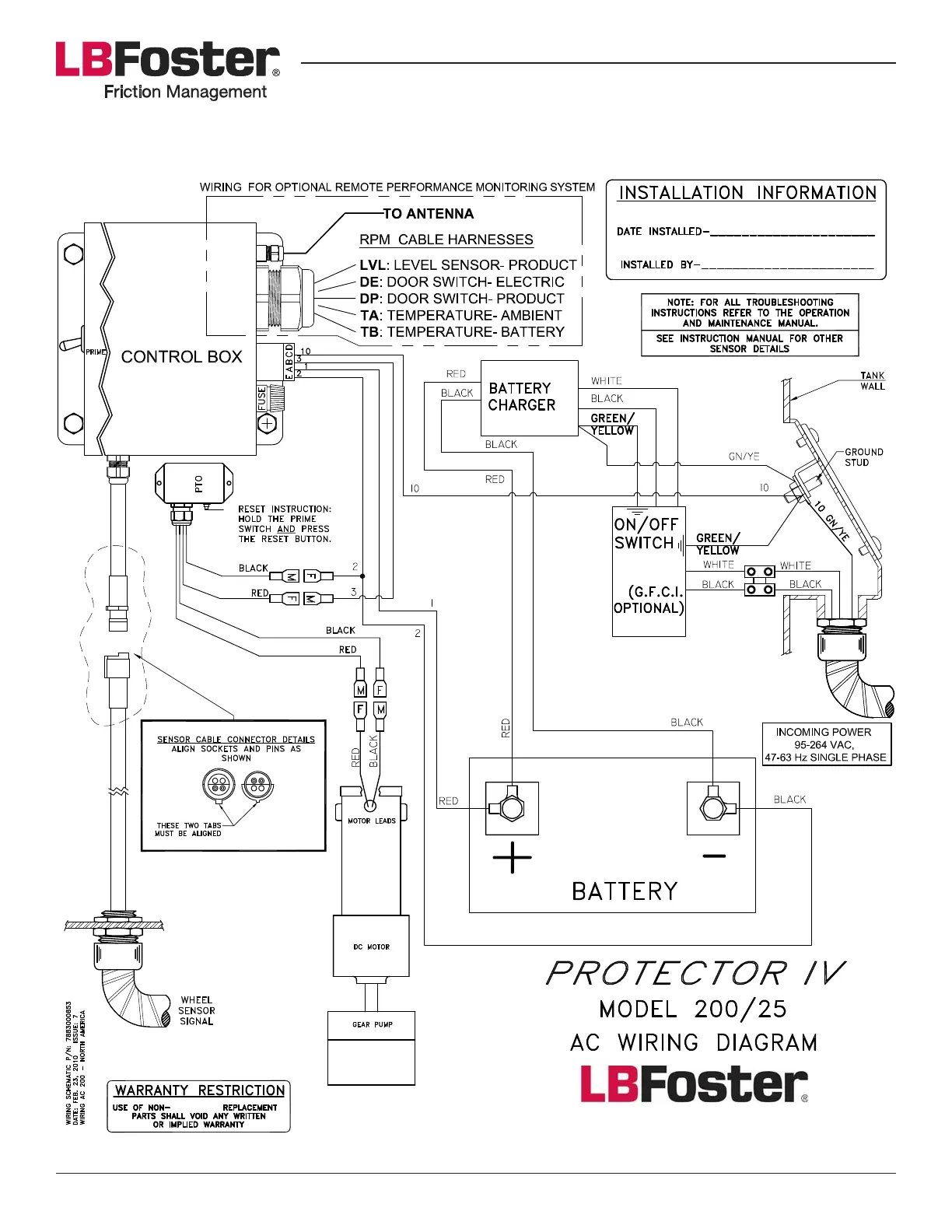

AC WIRING DIAGRAM FOR 200/25 UNIT
L.B. FOSTER
®
