Page 34PROTECTOR® IV Top of Rail Installation, Operation & Maintenance Manual
TOR XL
-

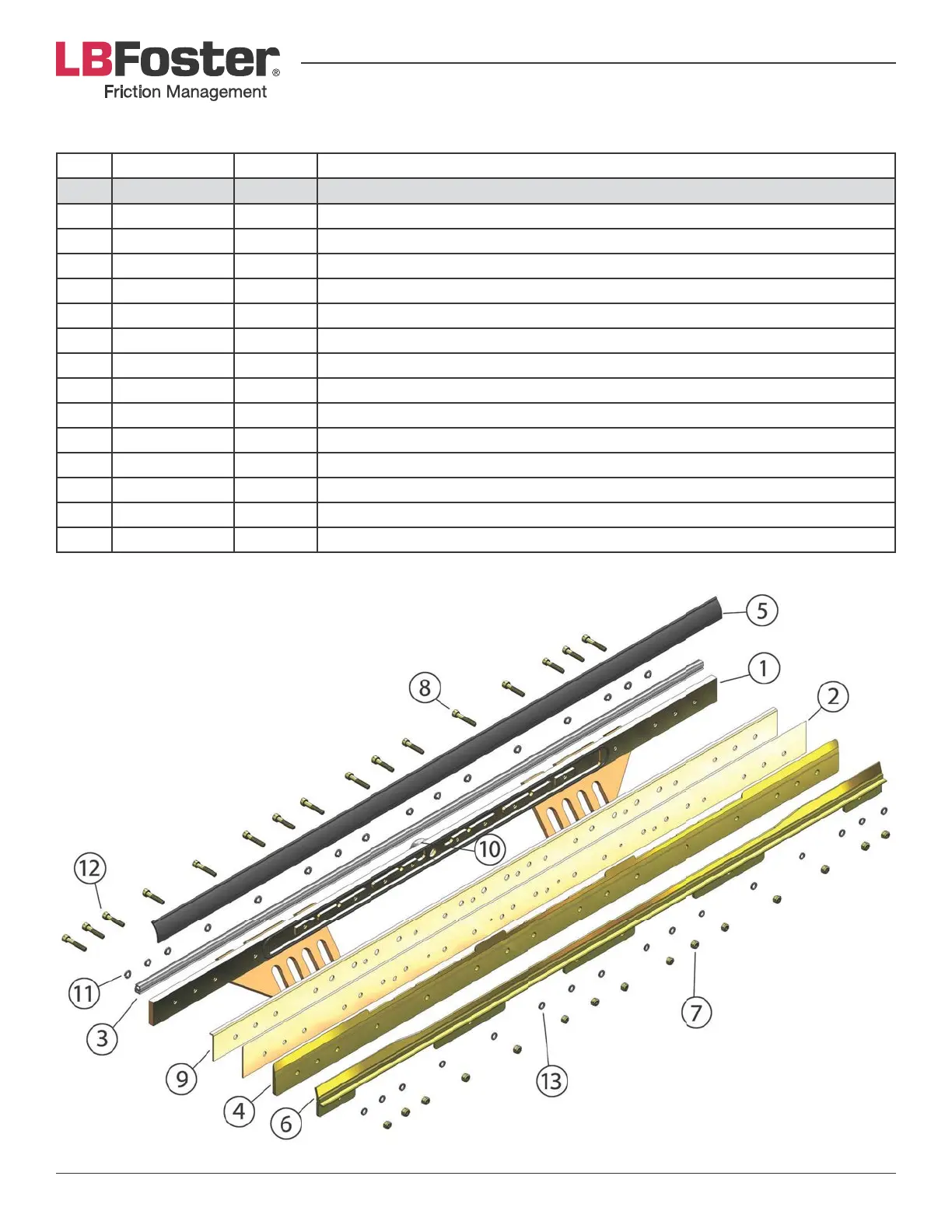

BAR PART NUMBERS
Item Part Number Quantity Material Description
788-07053-50 1 TOR XL-Bar Assembly
1 788-01154-00 1 Manifold
2 788-01155-01 1 Porting Plate
3 788-01164-00 1 Clip-on Seal
4 788-01156-00 1 Distribution Plate
5 788-01123-00 1 Angle Seal
6 788-01157-00 1 Seal Retaining Bar
7 713-408-000Z 16 M8 Class 10 Elastic Lock Nut- Zinc Yellow
8 788-01192-45 6 M8 SHCS Zinc Yellow w/Loctite Band GR.12.9 X 45 mm
9 788-01155-02 1 Port Plate- Bent
10 503-379-000 1 O-Ring Seal, Buna-In
11 713-001-008 16 8 mm Plated Lockwasher Standard
12 788-01192-40 10 M8 SHCS Zinc Yellow w/Loctite Band GR.12.9 x 40mm
13 700-684-032 16 Nord-Lock Washer- Zinc Plated
503-383-001 1 ½’’ NPT Plastic Plug (not shown)
