Page 32PROTECTOR® IV Top of Rail Installation, Operation & Maintenance Manual
DISTRIBUTION SYSTEM PIPING SUMMARY
D"/T&-./0123")$./
TOR 800#
Single Pump
TOR 800#
Double Pump
TOR 200#
Single Pump
TOR 200#
Double Pump
Distribution 4-Bar 2-Bar 4-Bar 2-Bar
Adapter at Tank 701-5420-41 701-5420-36 None 701-5420-36
Supply Hose Near Track 758-51255-40 788-41022-20 758-51255-40 788-41022-20
Supply Hose Far Track 788-41022-21 788-41022-21 N/A N/A
Center of Track Manifold 788-07034-50 788-57006-50 788-07034-50 788-57006-50
Adapter at Center of Track
Manifold
70-15200-17 None 70-15200-17 None
Distribution Hose 788-01099-00 788-41022-19 788-01099-00 788-41022-19
Adapter at Bar None 701-5200-10 None 701-5200-10

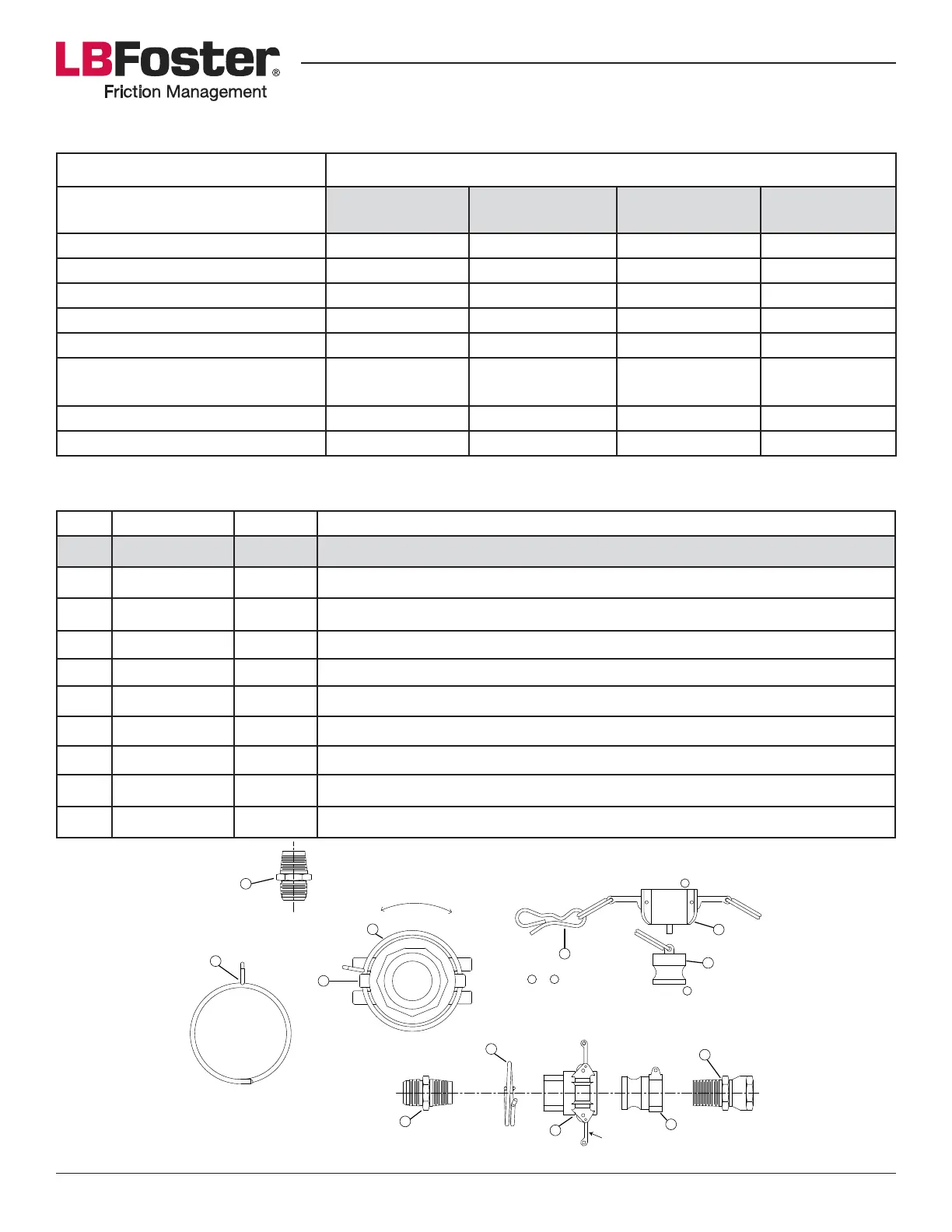

QUICK HOSE COUPLING PART NUMBERS
Item Part Number Quantity Material Description
788-00045-50 1 Quick Hose Coupling Kit
1 503-576-001 1 ¾" Brass Female Cam Lock
2 503-576-002 1 ¾" Brass Male Cam Lock
3 701-520-010 1 ½" NPT x ½" JIC Hose Adapter 2021-8-8
4 701-519-007 1 ¾" NPT x ½" JIC Adapter
5 503-668-000 1 Lock Ring
6 503-577-002 1 ¾" Poly Male Plug
7 503-577-001 1 ¾" Poly Female Cap
8 700-747-050 1 Bow Tie Cotter Pin
9 701-520-014 1 ¾" NPT x ½" JIC Hose Adapter 2021-12-8
LOCK RING
REMOVE INSERT
5
3
9
5
1
Locking Levers
2
4
1
5
8
7
6
Note: 6 and 7 should be stored in lubricator.
Attaches to 1
Attaches to 2
Note: Lock ring to be inserted during assembly.
