Leach 2R-III - Body Dimensions

Specifications 43

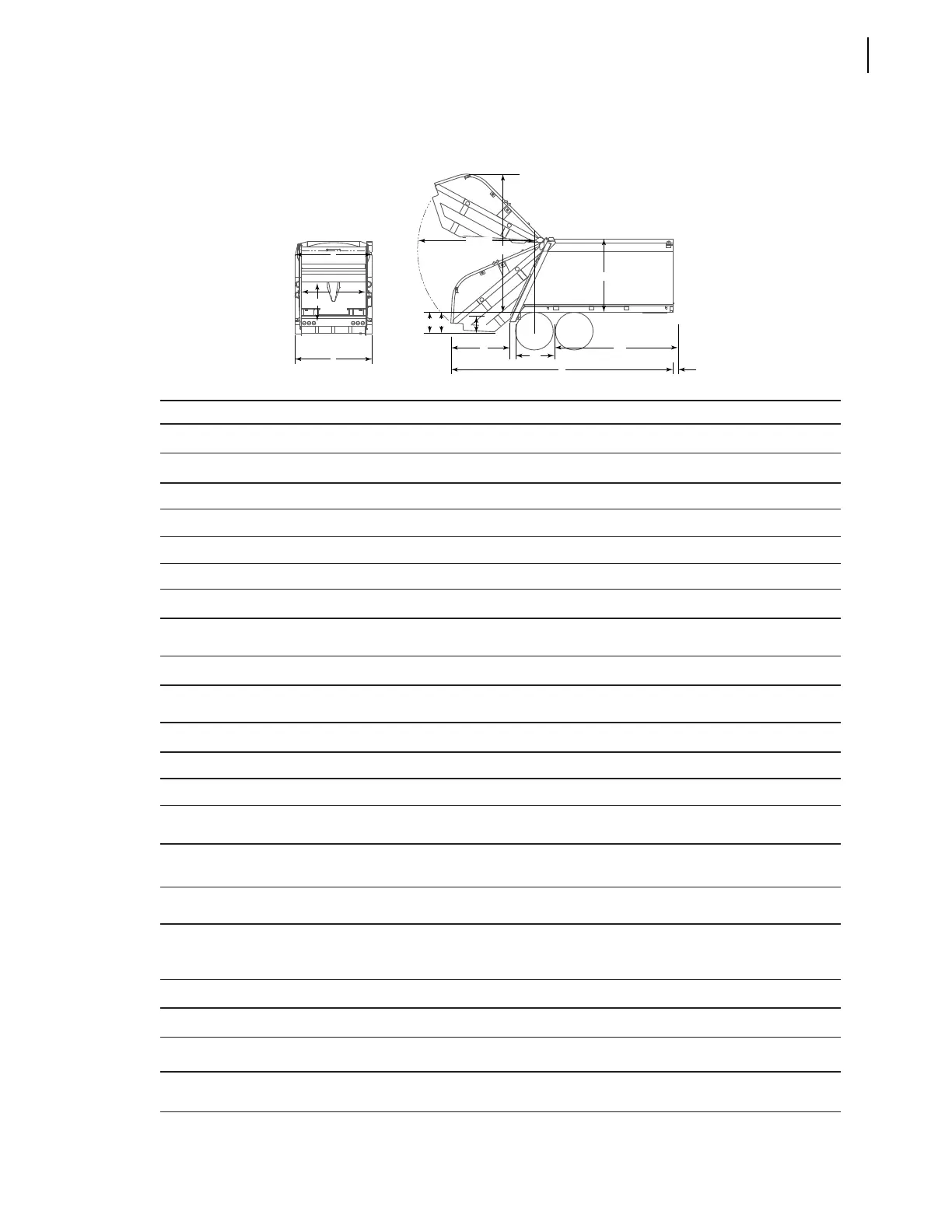

Body Dimensions
BODY DIMENSIONS 20 Cu. yd. 25 Cu. yd. 32 Cu. yd. 15m 19m 24m
AF After Frame (52” Beam) 52” 52” 52” 1270mm 1270mm 1270mm
B Overall Length 249” 270” 316” 6325mm 6858mm 8026mm
CA To Centerline of Trunion (Note2) 130” 151” 200” 3124mm 3658mm 4826mm
D Height Above Chassis Frame 94” 94” 94” 2464mm 2464mm 2464mm
I Body-Outside Width 96” 96” 96” 2439mm 2439mm 2439mm
J Body-Inside Width 90” 90” 90” 2286mm 2286mm 2286mm
K Hopper Depth 17” 17” 17” 432mm 432mm 432mm
N Interference Point Above 4” 4” 4” 102mm 102mm 102mm
Chassis Frame
P Top of Step Below Chassis Frame 14”-17” 19” 19” 483mm 483mm 483mm
Q Hopper Bottom Below Chassis 22” 22” 22” 559mm 559mm 559mm
Frame
R Hopper Opening Width 80” 80” 80” 2032mm 2032mm 2032mm
S Hopper Opening Height 56” 56” 56” 1423mm 1423mm 1423mm
T Hopper Inside Width 80” 80” 80” 2032mm 2032mm 2032mm
U Rear of Body to Rear of 74” 74” 74” 1880mm 1880mm 1880mm
Tailgate Closed
 Height Above Chassis Frame 194” 194” 194” 4928mm 4928mm 4928mm
(Tailgate Raised)
 Loading Sill Below Chassis 5” 5” 5” 127mm 127mm 127mm
Frame (Non Tag Axle Body)
 Center of Gravity Measured From 117” 131” 151” 2972mm 3328mm 3836mm
Front of Body (Body Only)
(Payload) 94” 103” 120” 2388mm 2617mm 3048mm
 Hopper, cubic yards 3.5 cu. yd. 3.5 cu. yd. 3.5 cu. yd. 2.7m 2.7m 2.7m
 Approx. Body Weight 14,495 lbs. 15,020 lbs. 16,125 lbs. 6575kg 6575kg 6575kg
 Min. Truck GVWR Requirement 46,000 lbs. 52,000 lbs. 60,000 lbs. 20,862kg 23,583kg 27,211kg
(Note 1)
Notes: 1. Truck selected must be capable of carrying net weight of body plus weight of refuse to be collected.
2. CA must be usable with no obstructions protruding above frame.
33
3
3
3
3
J
R
I
S
B N
U
147.75"
AF
D
18 4 "
P Q
K
CA
