Leach 2R-III - Packer Panel Sweeps Hopper

Troubleshooting 85
Packer Panel Sweeps Hopper
Operator Action
Operator shifts the control levers outward to start compaction.

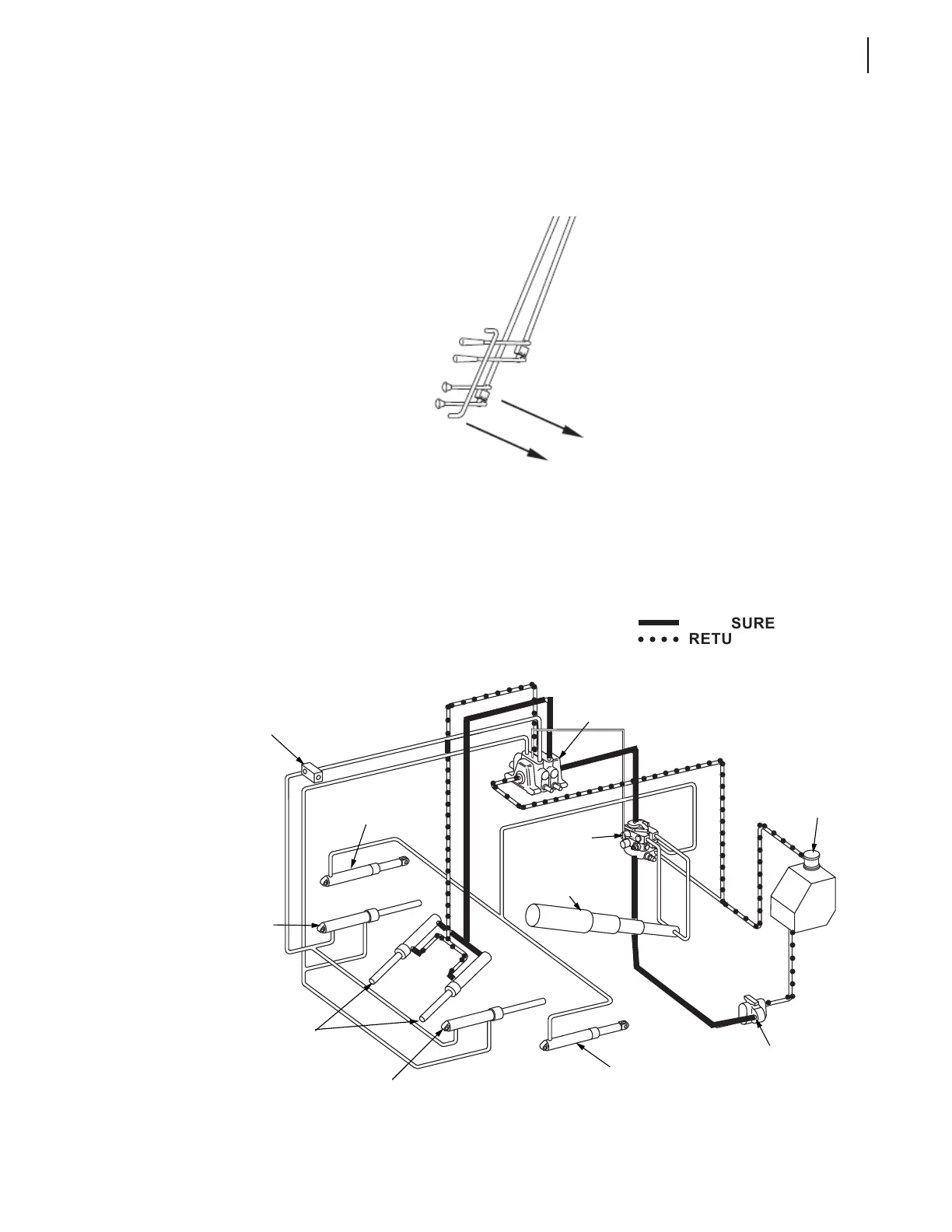

Hydraulic Sequence
Fluid flows through the MCV (Main Control Valve) packer section to the case end of the packer
panel cylinders. As the cylinders extend, the packer panel sweeps the load forward in the hopper. As
the packer cylinders extension stroke continues, pressure builds to 1950 PSI (134 BAR) causing the
MCV (Main Control Valve) to shift.
○○○○
RETURN
MAIN CONTROL
VALVE
HYDRAULIC
FLUID TANK
PUMP
FRONT
CONTROL VALVE
TELESCOPIC
CYLINDER
TAILGATE LIFT
CYLINDER
CARRIER
CYLINDER
PACKER
CYLINDER
CARRIER
CYLINDER
TAILGATE LIFT
CYLINDER
P.O. CHECK
VALVE
○○○○○○
○○
○○○
○○○
○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○
○○○○
○○○○○○○○○
○○○○○
PRESSURE
○○
○○○
○○
○○○○○○○○○○○○○○○○○○○○
○○○○○○○○
○○○○○○
