Leach 2R-III - Ejecting Load

Troubleshooting 89
Ejecting Load
Operator Action
Operator depresses speed-up button and moves pushout lever rearward.

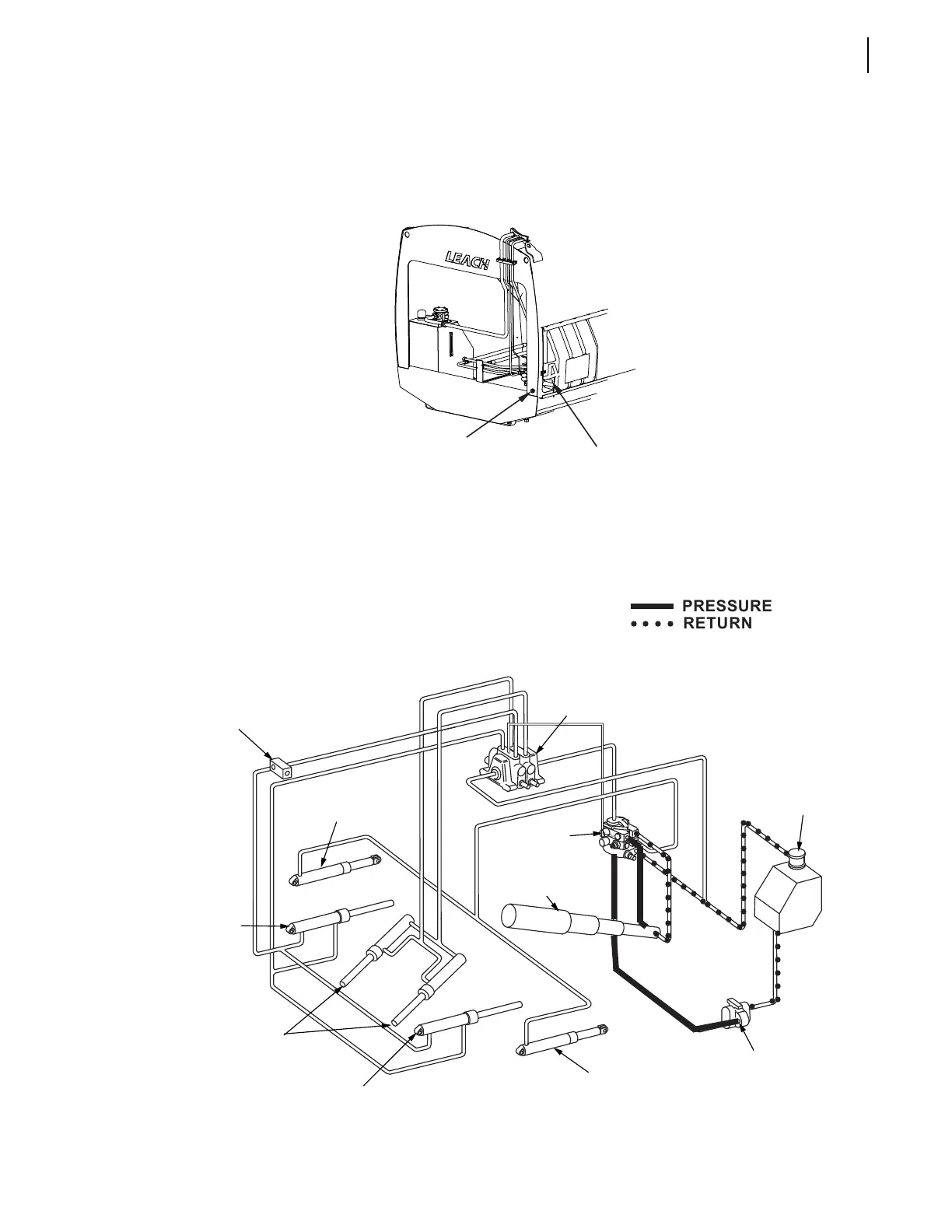

Hydraulic Sequence
Moving the pushout lever rearward shifts a spool in the FCV (Front Control Valve) causing flow to
the telescopic cylinder. As the cylinder extends, the load is ejected from the body.
SPEED UP BUTTON
PUSHOUT
LEVER
c
ylinder. As the cylinder extends, the load is ejected
f
rom the body.
MAIN CONTROL
VALVE
HYDRAULIC
FLUID TANK
PUMP
FRONT
CONTROL VALVE
TELESCOPIC
CYLINDER
TAILGATE LIFT
CYLINDER
CARRIER
CYLINDER
PACKER
CYLINDER
CARRIER
CYLINDER
TAILGATE LIFT
CYLINDER
P.O. CHECK
VALVE
○○○○○○
○○
○○○○
○○○○○○○○○
○○○○○
PRESSURE
○○○○
RETURN
○○○
○○○○
○○
○○○○○○○
○○○
