BT/S Variable-Speed Peristaltic Pump
4) Set duration for each dose, pause time between doses and number
of cycles.
5) Return to main screen.

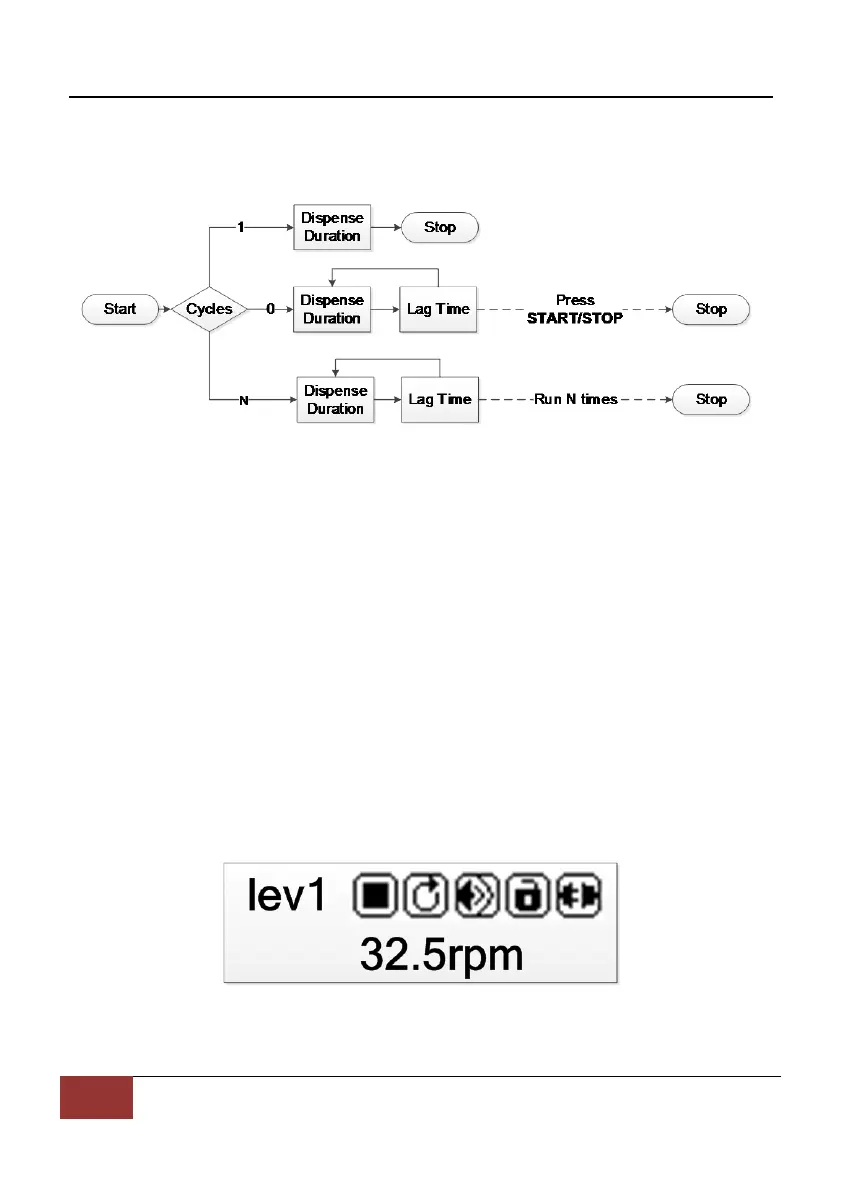

Figure 20.Dispense Cycle Setting
To run Time Dispense:
1) Press DIRECTION key to change the running direction, clockwise
or counterclockwise.
2) Press START/STOP key to start dispensing.
3) When the drive is running, press START/STOP key to stop the drive
anytime when an accident occurs.
4) A footswitch can be used to start/stop pump.
7.7 Logic Level 1 Control Mode (footswitch)
Use external logic level signal to control start and stop. Use the keypad to
control direction and speed.
Figure 21. Logic Level 1 Control Mode
