LEAD FLUID BT600S - 6 External Control Interface; 7 Operation Instructions; Before Operation

LEAD FLUID TECHNOLOGY CO.,LTD.

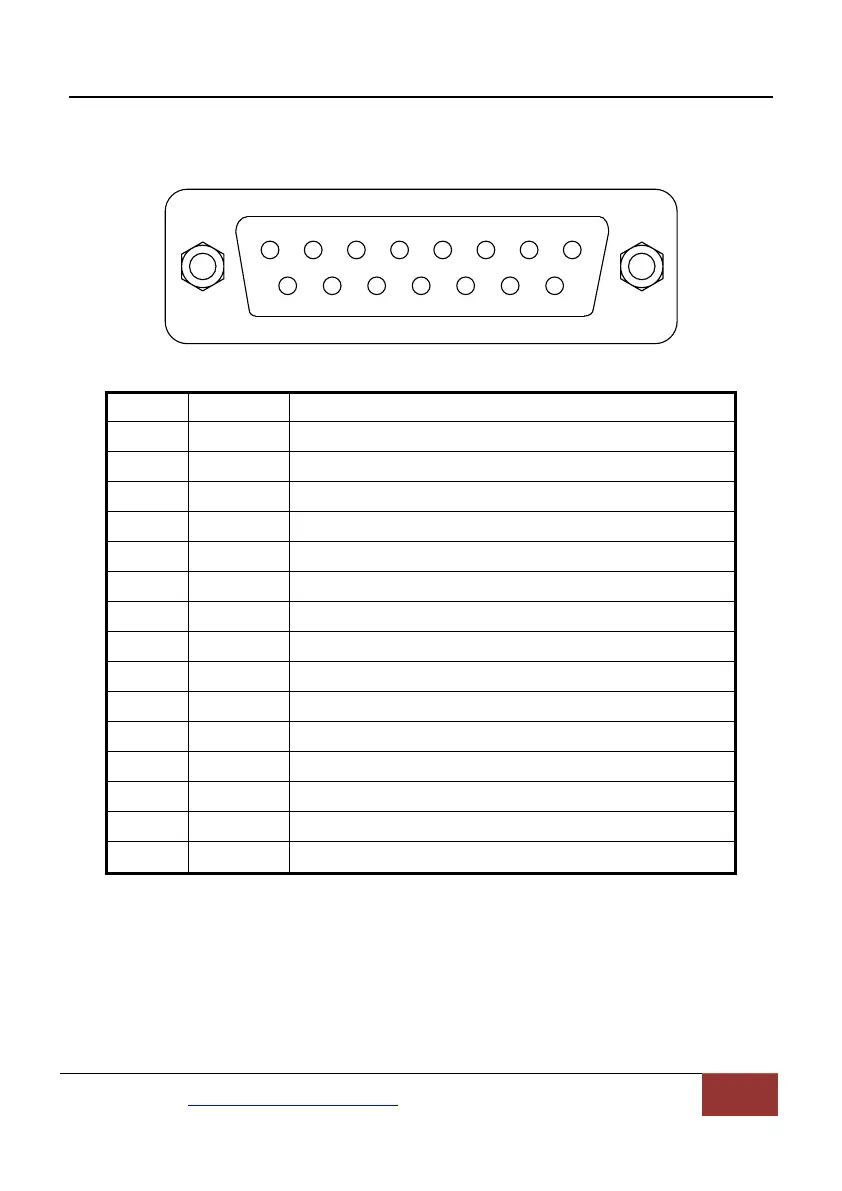

6 External Control Interface
1 2 3 4 5 6 7 8
9 10
11
12 13 14 15
DB15
Mark
Note
1
ADC_W
Positive of external analog input
2
B
Communication interface, B pole of RS485
3
A
Communication interface, A pole of RS485
4
VCC_W
External DC power input
5
6
CW_W
External input signal to control direction
7
8
COM
Ground of external power
9
AGND
Negative of analog signal input
10
+12V
Positive of internal +12V power source
11
GND
Ground of Internal power source
12
13
RS_W
External start/stop signal input terminal
14
15
7 Operation Instructions
7.1 Before Operation
1) Please check the packing slip to make sure nothing is wrong or
damaged in the package. If there is problem, please contact the
Mail：master@leadfluid.com WEB：www.leadfluid.com 10
