• Logic Level 2 Control Mode (footswitch and direction switch): Use
external logic level signal to control start, stop and direction. Use the
keypad to adjust speed.
4.2.2 B. Running State
It shows current drive running state.

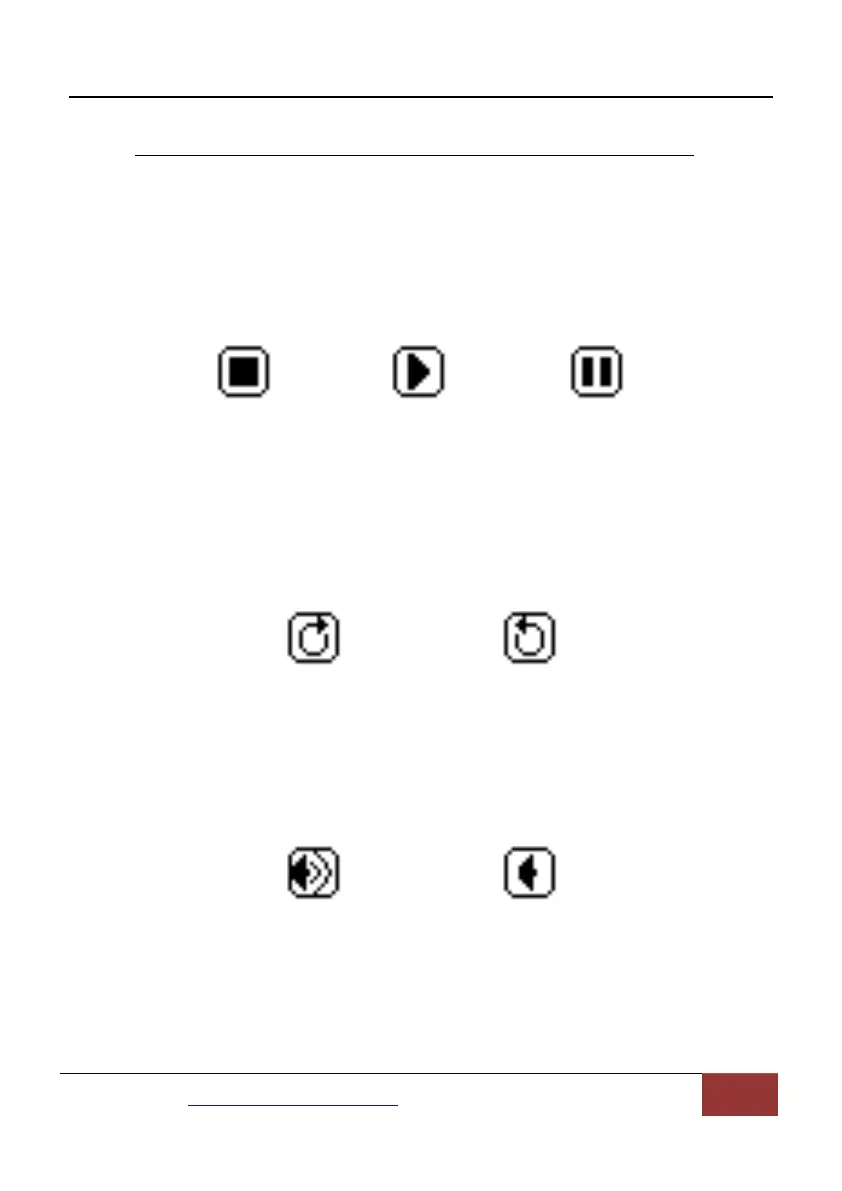

Figure 4.Running State
4.2.3 C. Direction State
It shows current drive direction setting.
Figure 5. Direction
4.2.4 D. Key Tone State
It shows the state of the key tone, on or off.
Tone on Tone off
Figure 6. Key Tone
4.2.5 E. Keypad Lock State
It shows the state of the keypad lock. When the keypad is locked, only the
